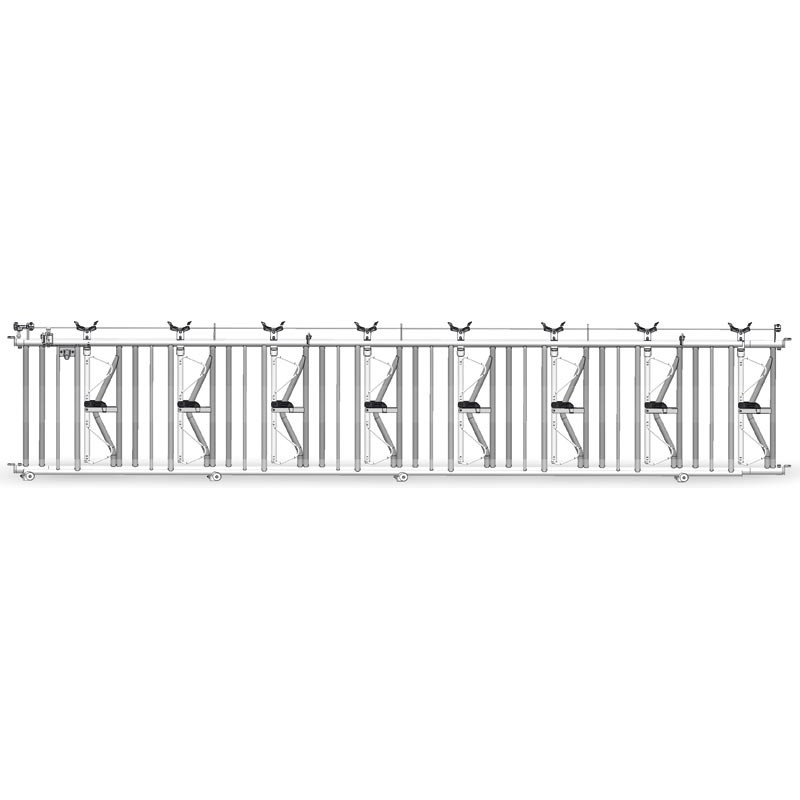

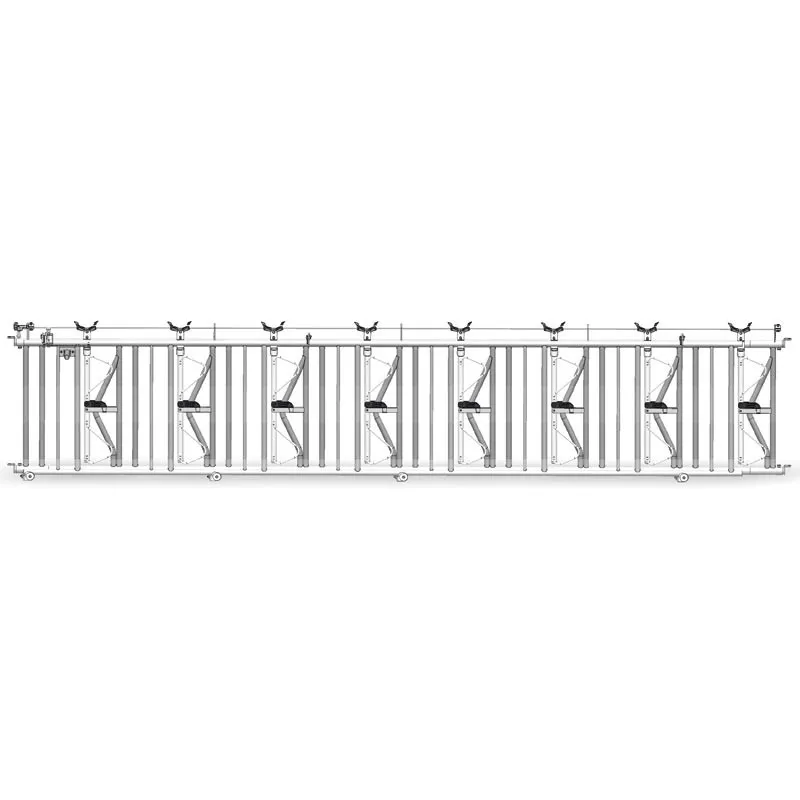

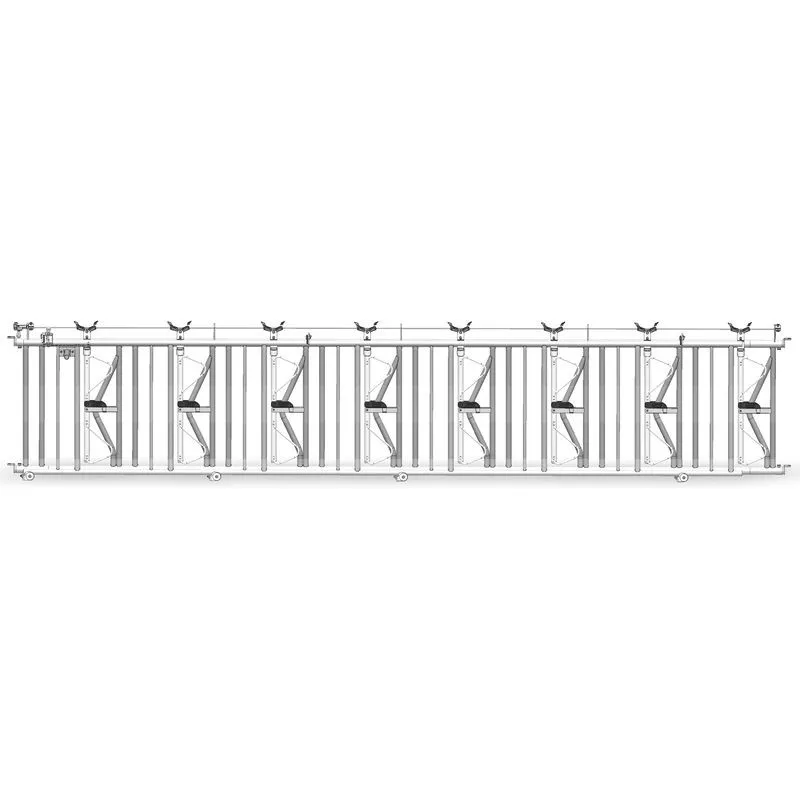

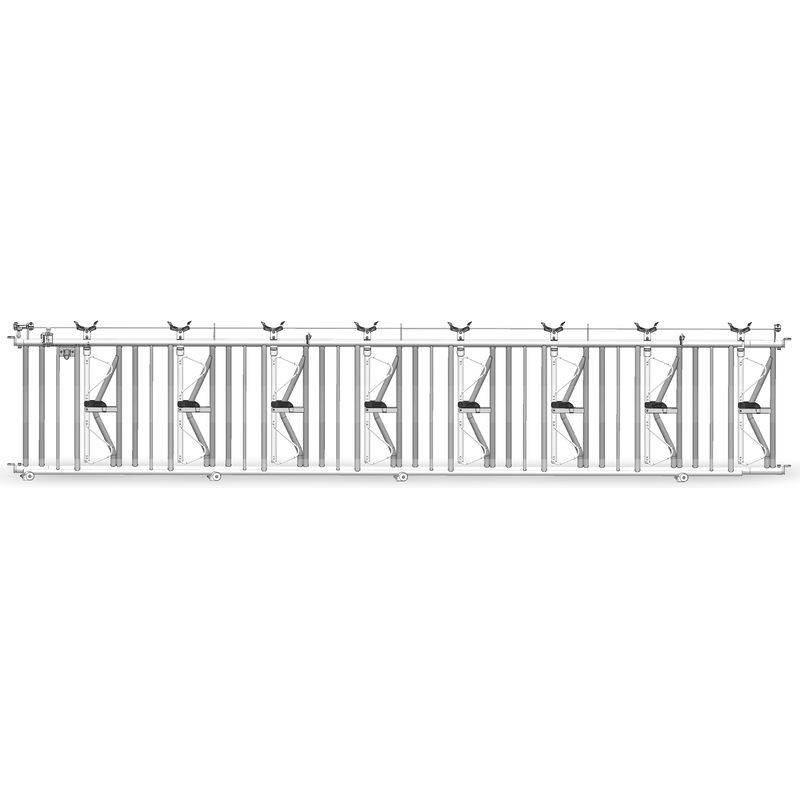

Comfort SRS headlock panel - 6 m/8 spaces

The SRS modelcombines a comfort SR yoke panel and a feed panel.
It is part of a range of yoke panels for facilities that are perfectly adaptable over time to all ages of cattle.
It can be used in two ways:
- Self-service position
When the double frame is open (positioned for self-service), it provides a wide head opening for animals without any movement of the yoke's moveable bar to access it. This version is silent.
- The headlock position
In this case, the double frame is positioned to fit the neck of the animal to retain, the headlock function is therefore safely provided.
Perfectly suited to horned or hornless cattle.
To be mounted as a post front to leave room for the conversion of the double frame positioned at the front section of the headlock.

COMFORT tabs are fitted with:
- Adjustable neck width for SR, LR, and SRS models.
- Anti-choke system for SR, SF, and SRS models.
- Anti-noise system.
- Top and bottom head guard on moveable bar.
- Rounded fastening at each end of the mobile bar.
- Patented system for automatic mobile bar return to open position.
- Mobile bar axis fitted with a reinforcement ring.
- Control bar piloted by a polymer handle on a guided spring system.
- Durable polymer tabs, UV andfrost stabilised. Safe head by head opening possible.
- Individual openings can be left closed when the headlock is fully opened thanks to the factory-fitted pin on the top parts of the side rails and moveable bars.
- Patented system. Double quick release polymer embedded tabs. Effectively and silently locks mobile bars thanks to a large diameter Teflon spacer.
- Patented elastic spring system for an automatic mobile bar return to open position thanks to an elastic spring system on rails. Moveable bar axis fitted with a reinforcement ring limiting long-term wear.
- Mobile bar with top and bottom head guard which  also prevents collar snagging. Lower part of the moveable bar rounded.
- Mobile bar axis fitted with a reinforcement ring bushing limiting long-term wear.
- Polymer reinforcement rings on each end of the control bar. Headlock delivered factory fitted with  four L end which can be raised by turning them over.

The COMFORT SRS yoke panel is fitted with:
- Folding neck adjustment handle. Simultaneous adjustment of the necks of all openings using a simple handle.
- Spring control handle for quick positioning of the double panel neck.
- Double panel guiding by technical parts in ertalon for enhanced silence.
- On the lower part, centring technical roller supports in ertalon fastened onto flat brackets welded to the yoke panel.
- Ø 42.4 mm neck bars with guard bars welded to the double panel. Identical intervals to the neck bars initially mounted on a standard headlock. Allows a range of neck adjustments from self-service (full clearance) to neck reduction to that of young animals.

Delivered with four L-shaped ends that can be raised by turning them over and reinforcements to embed according to the model.
