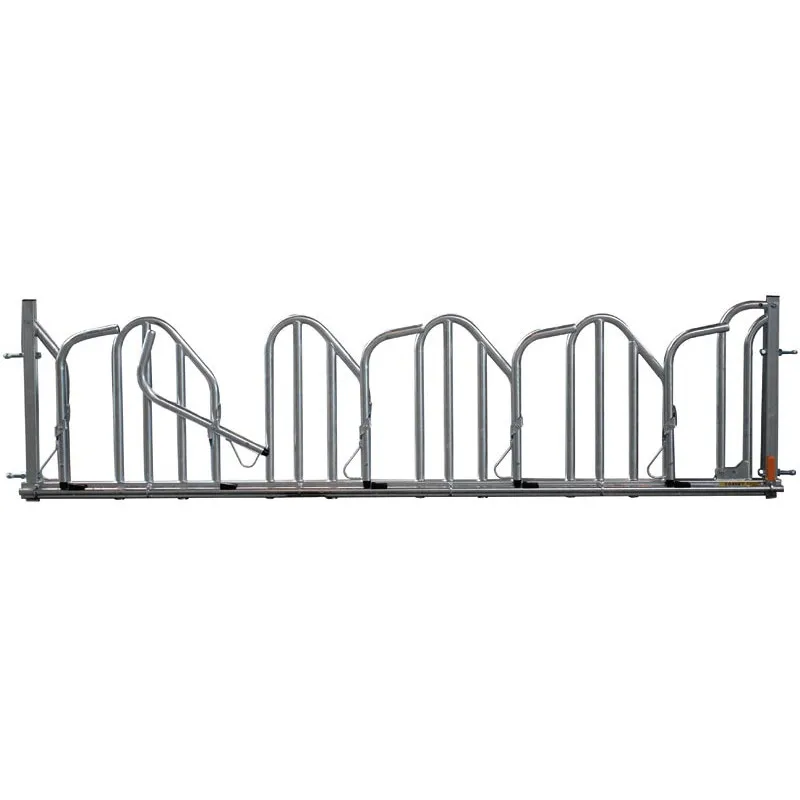

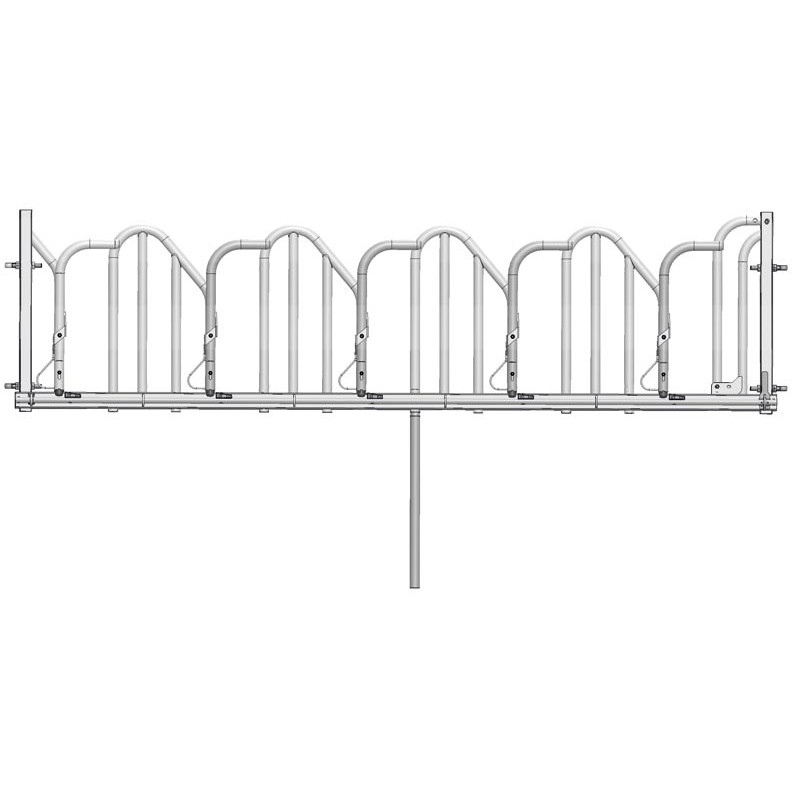

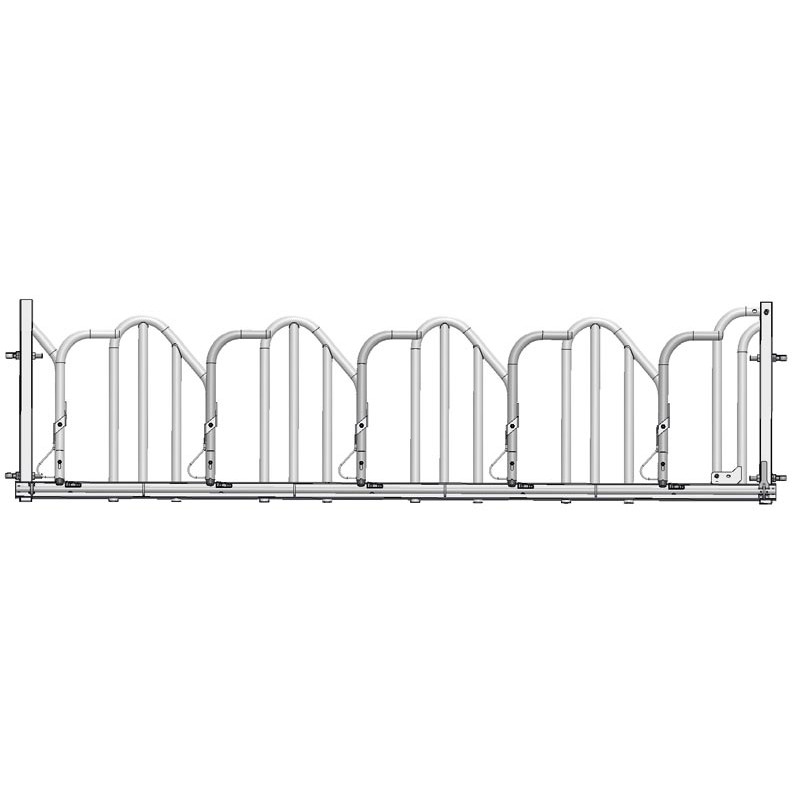

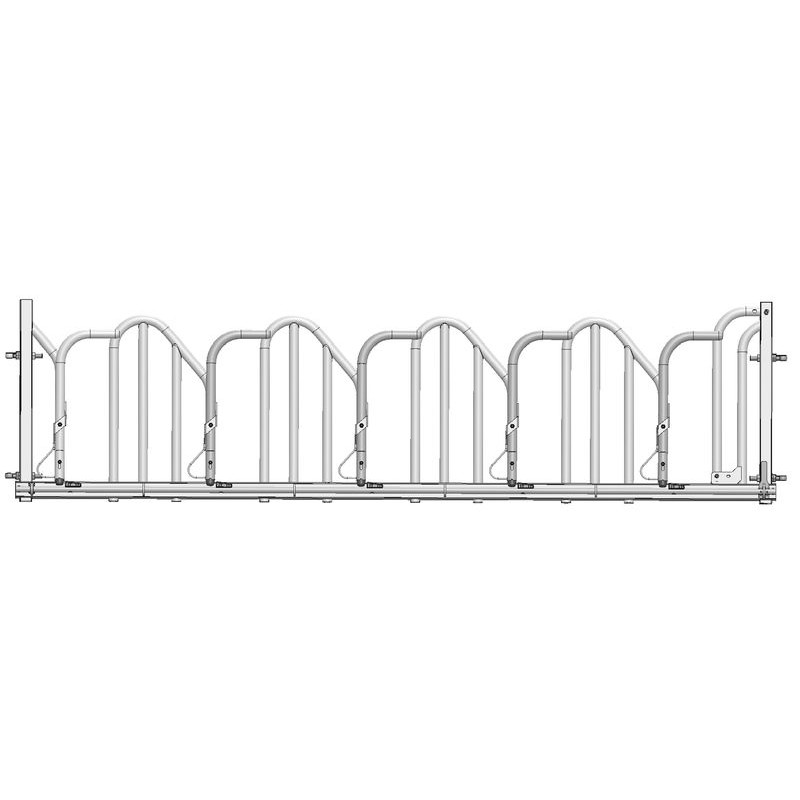

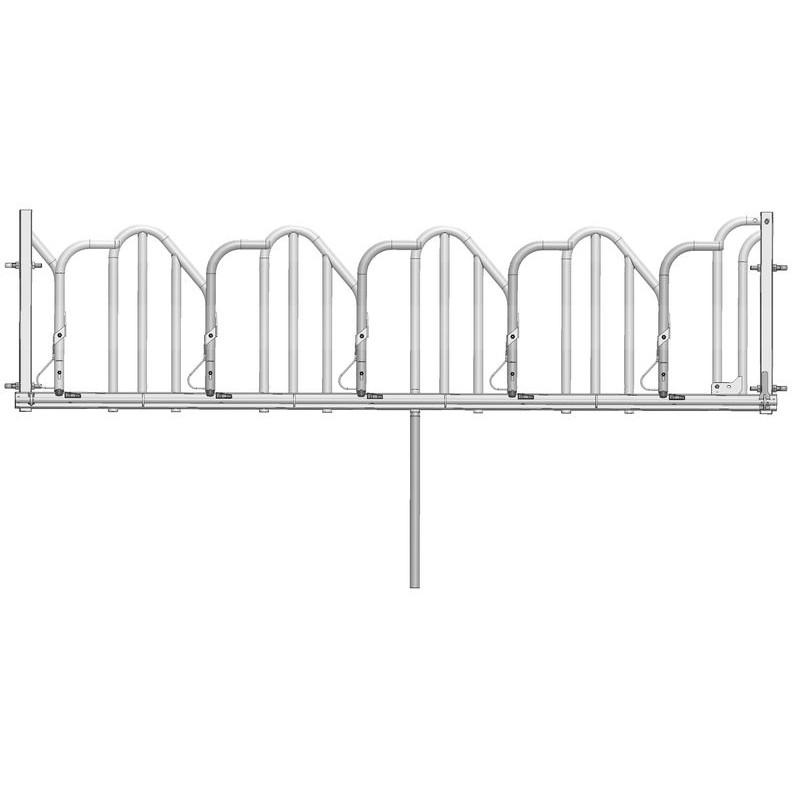

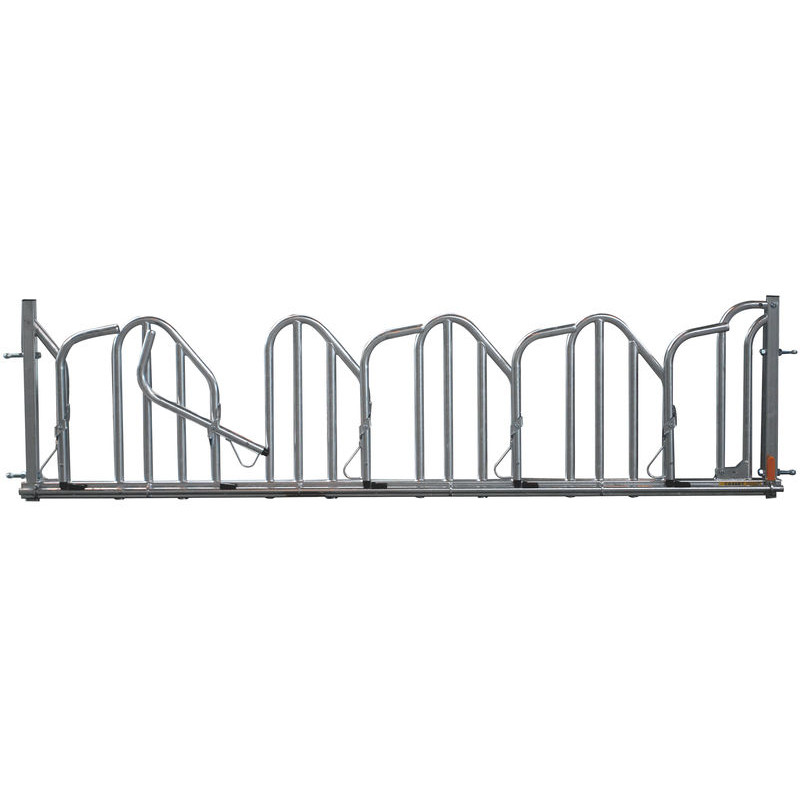

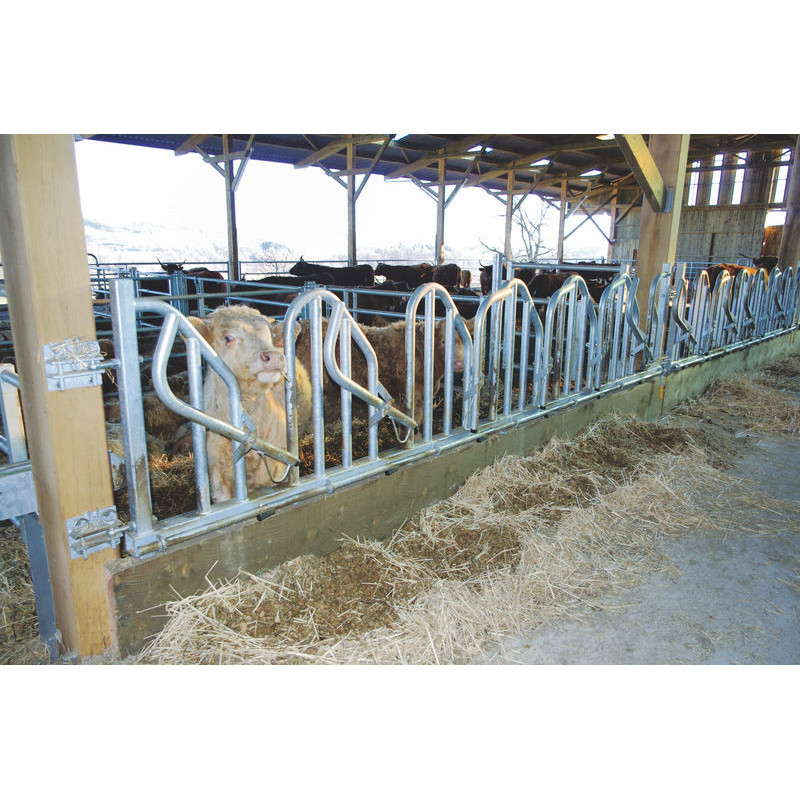

Swedish PRO yoke panel - 4 m/5 spaces

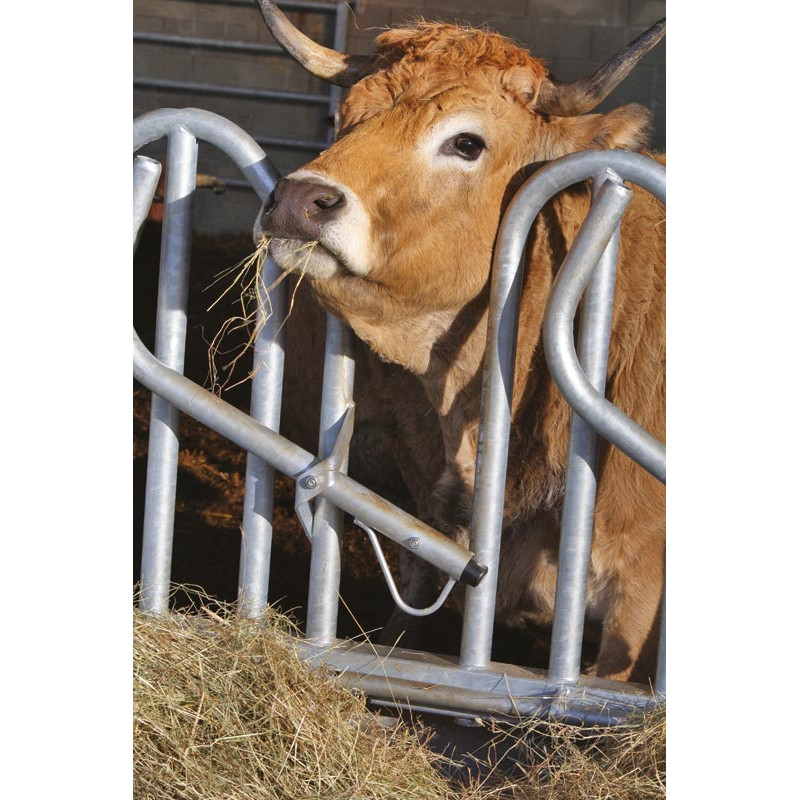

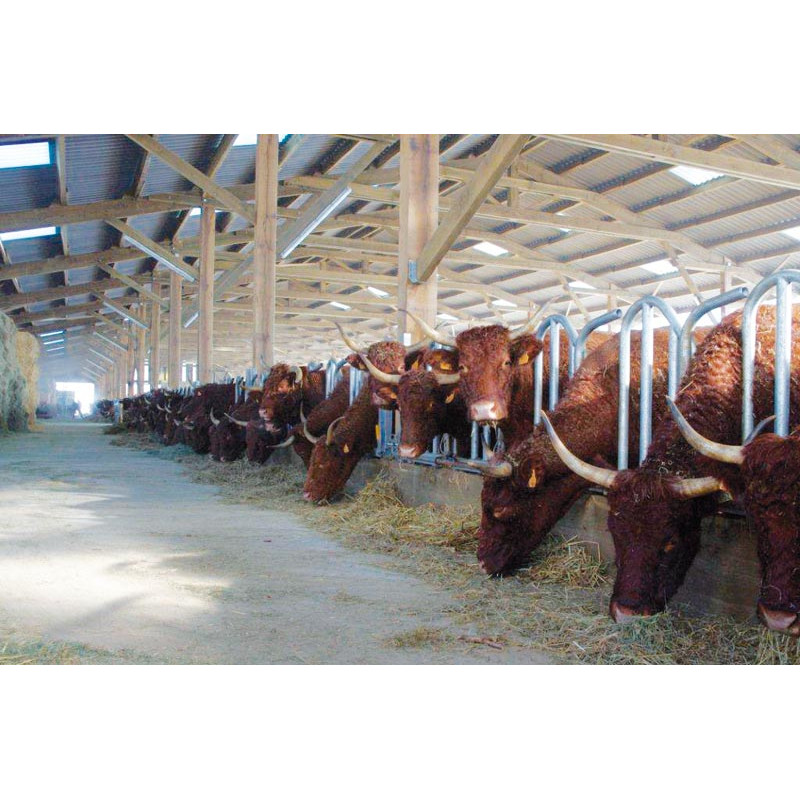

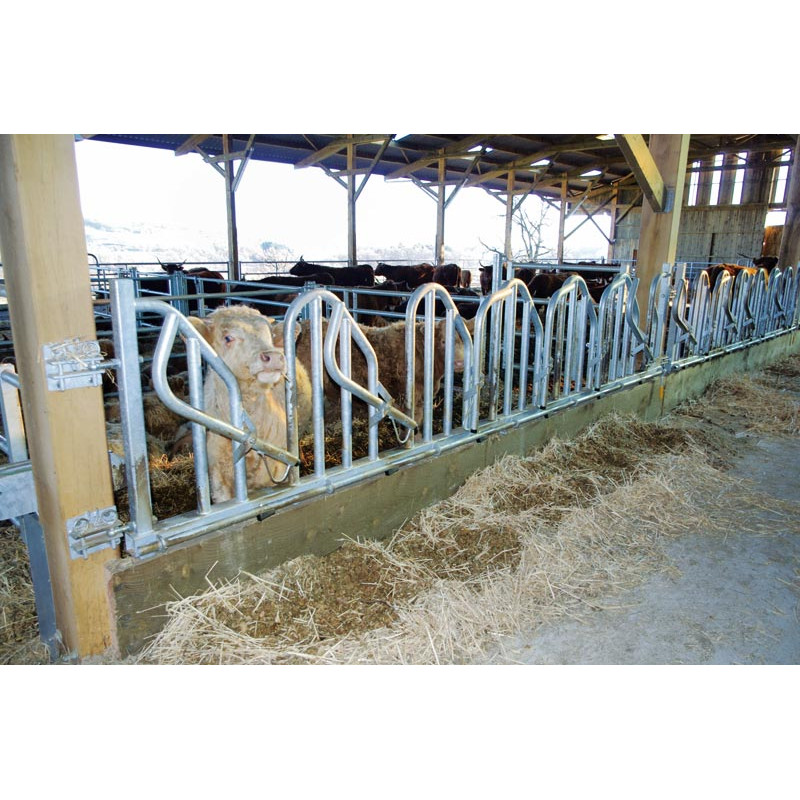

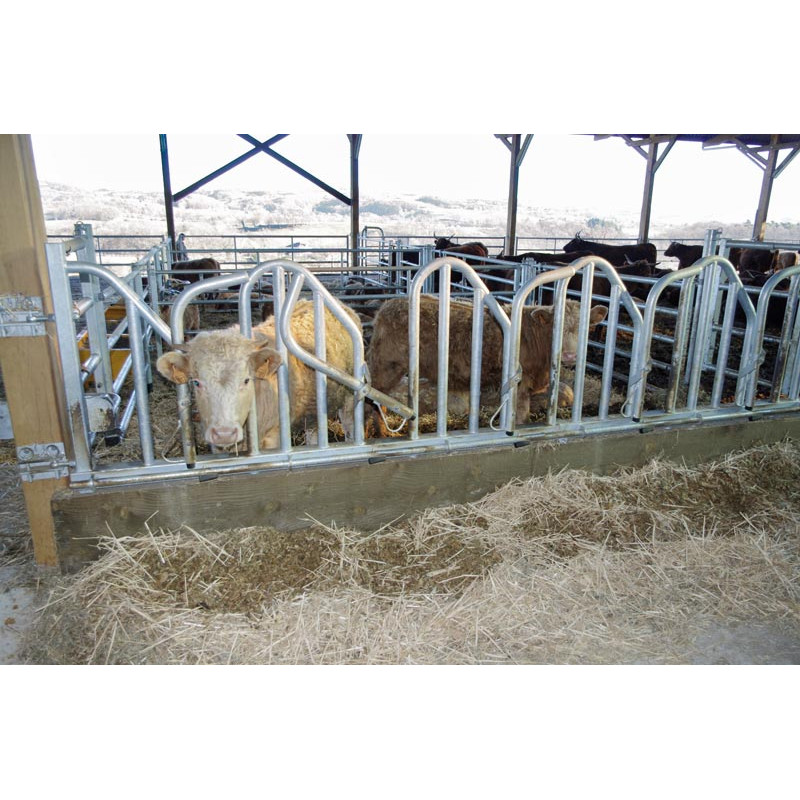

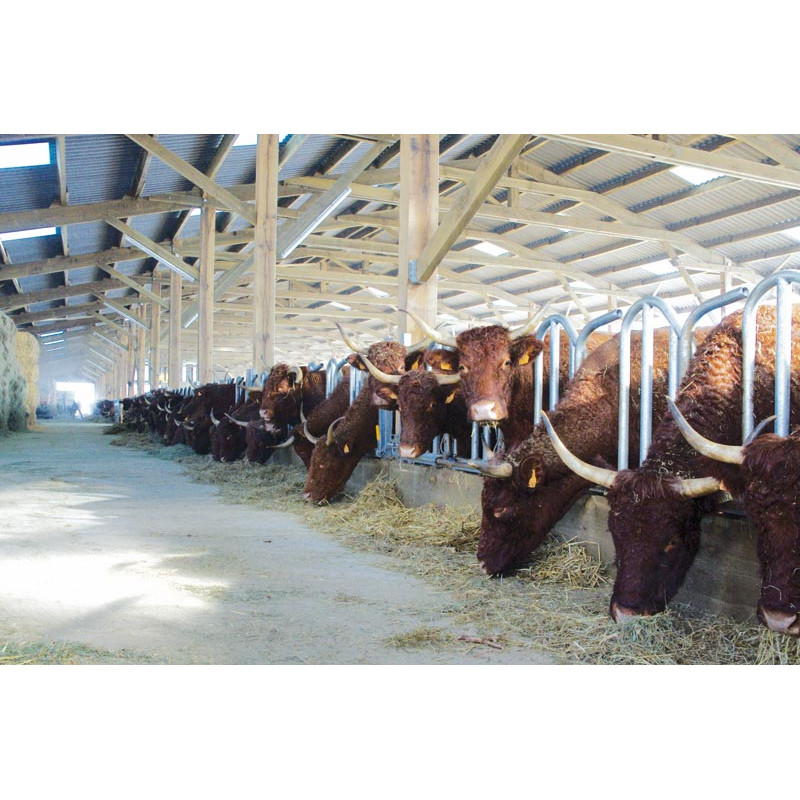

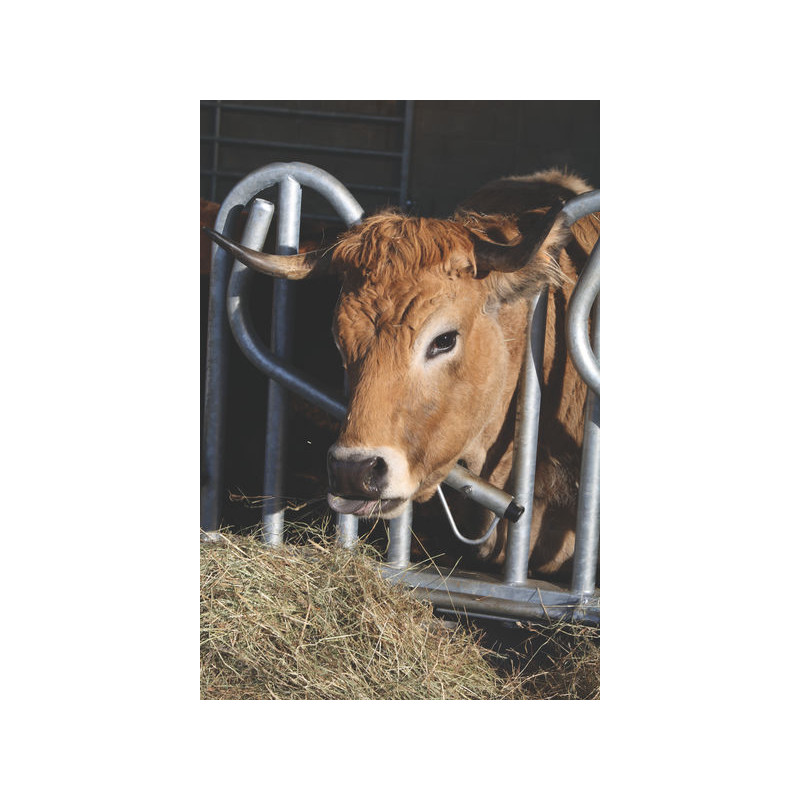

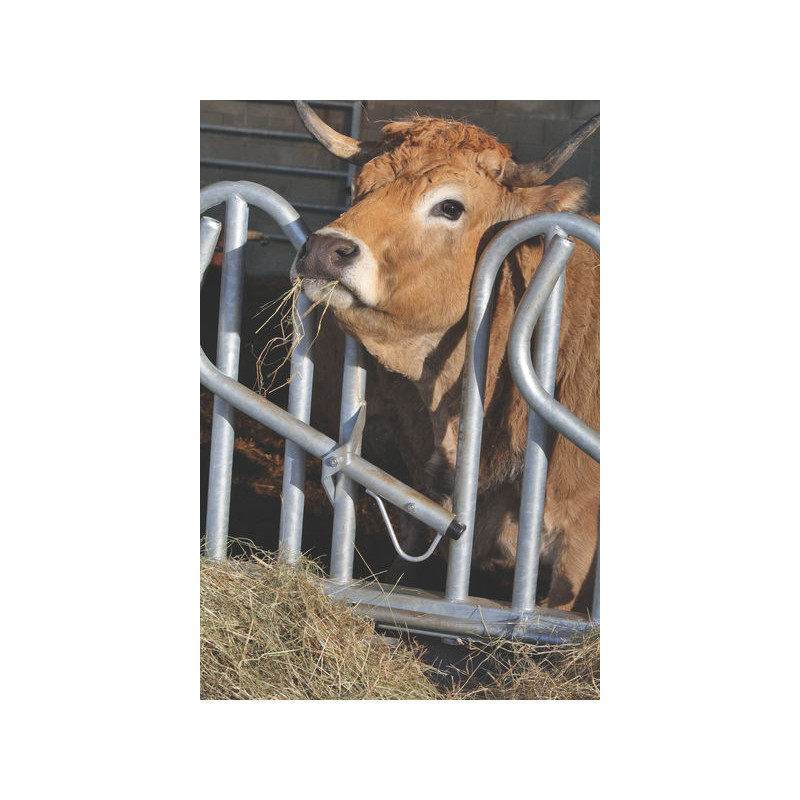

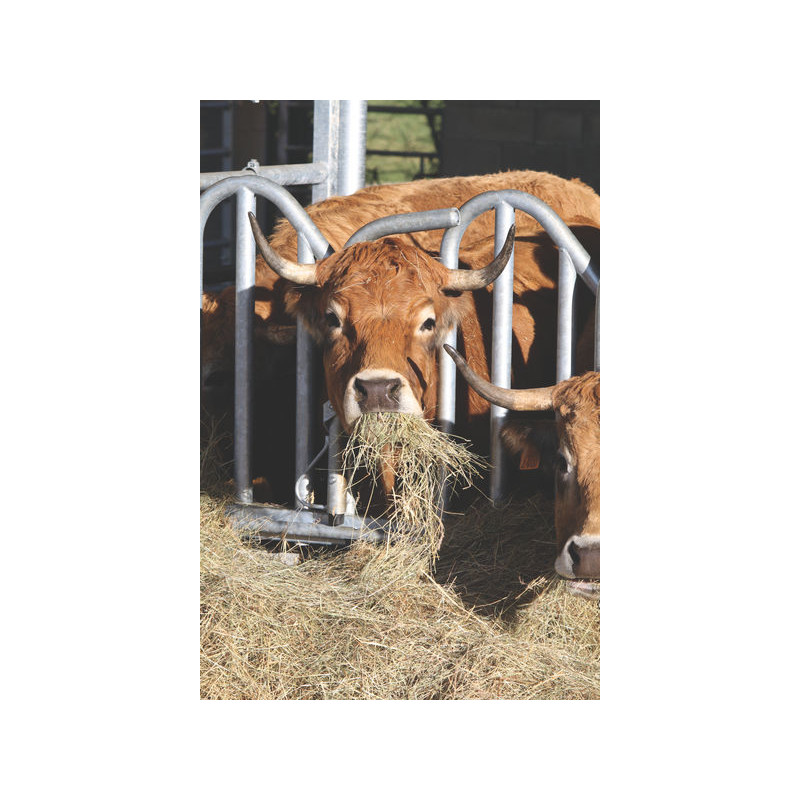

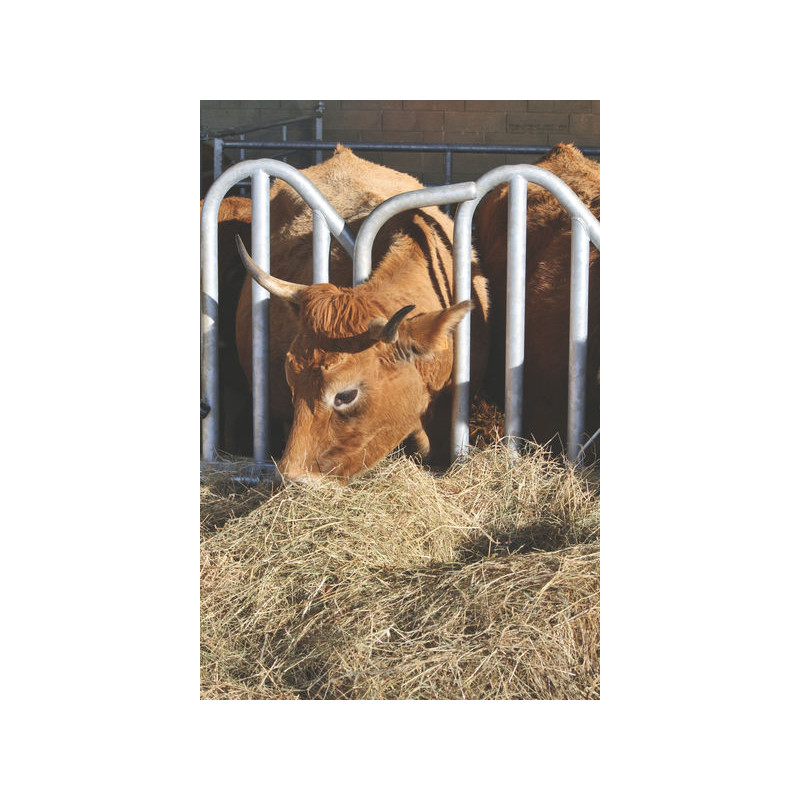

Specifically designed for large horned animals and bulls. Extremely robust headlock with total clearance at the top of the tombstones.
Model designed for horned animals. 80x80 mm post with crossing hoops.

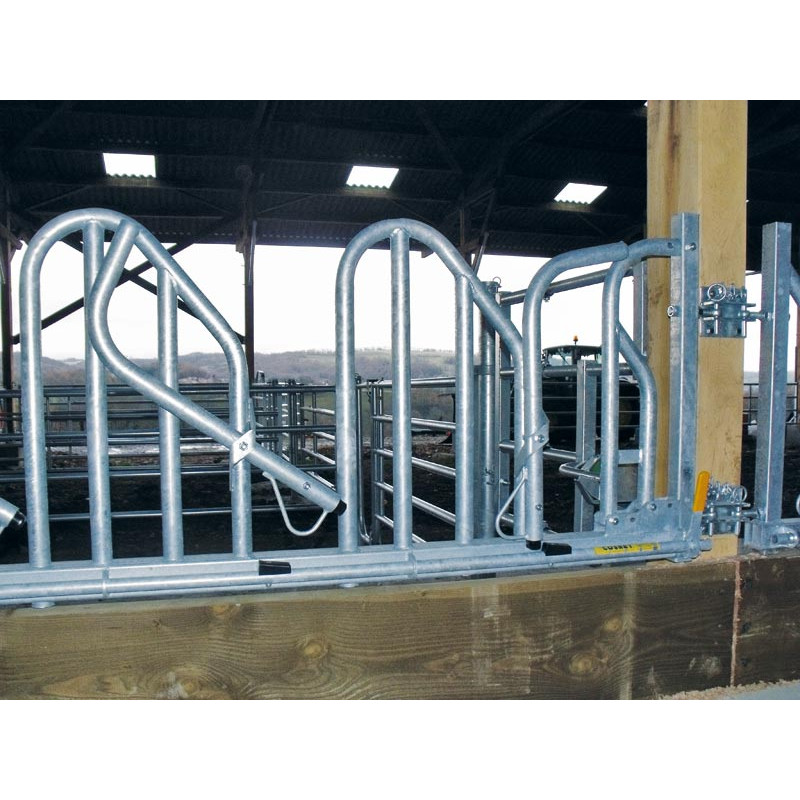

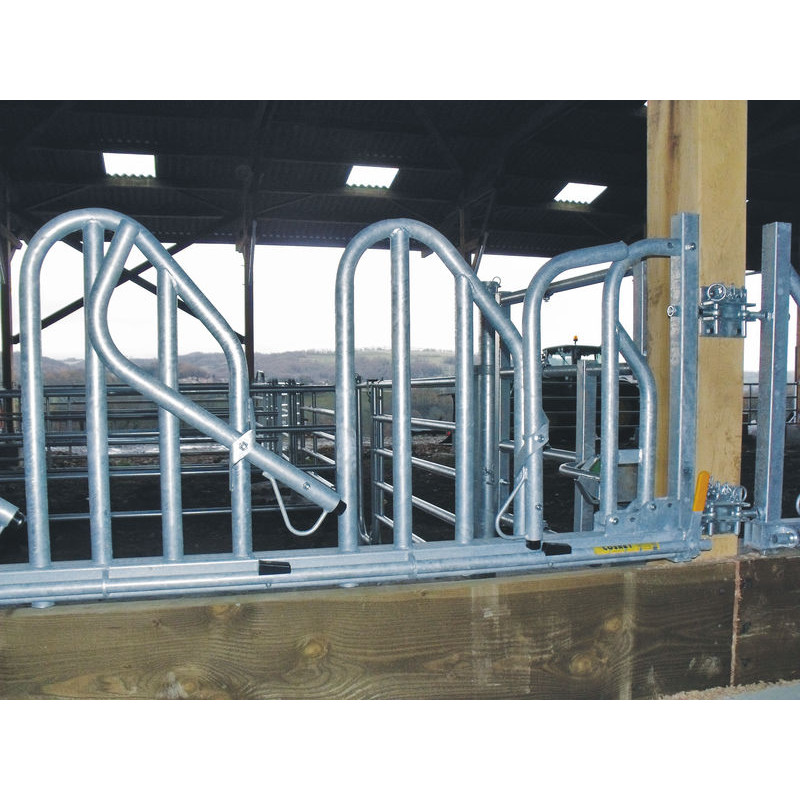

Pro-Swedish headlock mounting recommendations: For structures in spans, these headlocks with specific total dimensions are designed to be mounted on a post (and not between posts).
Technical characteristics:
Single 80 x 80 mm square beam with crossing hoops.

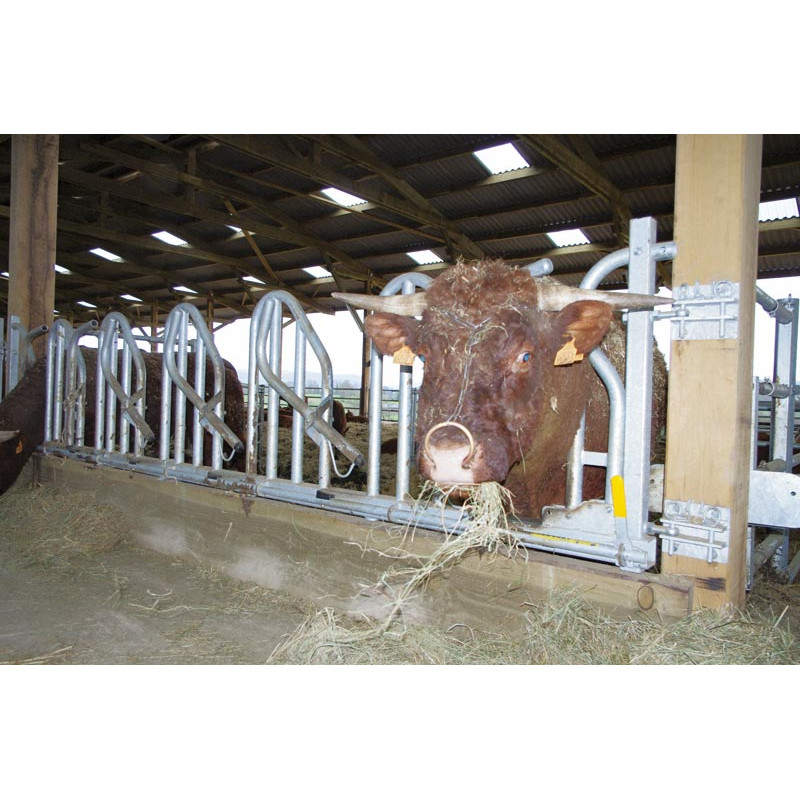

Opening with adjustable neck for a bull on some models.

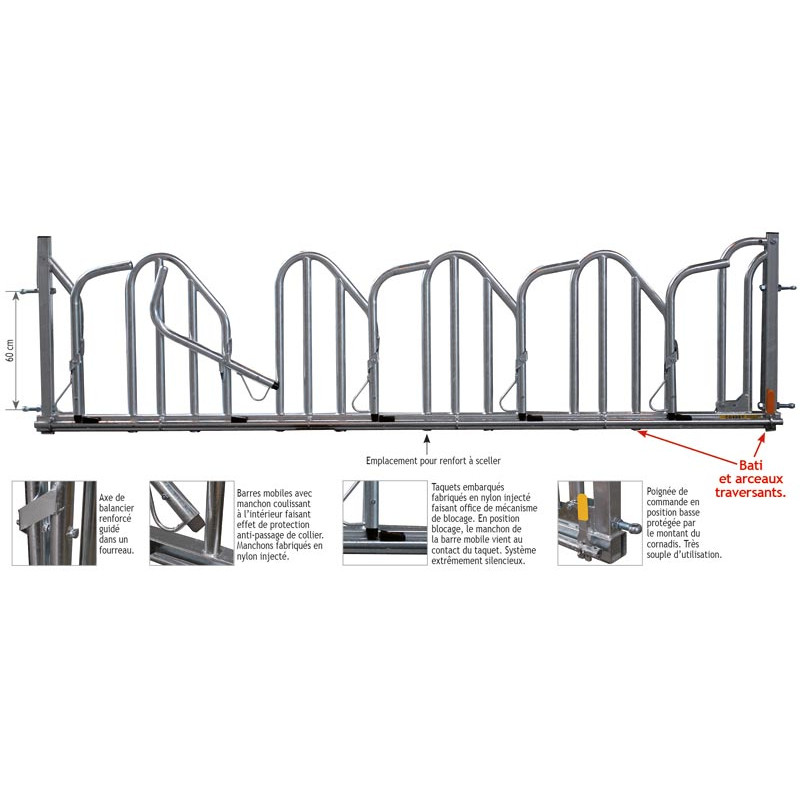

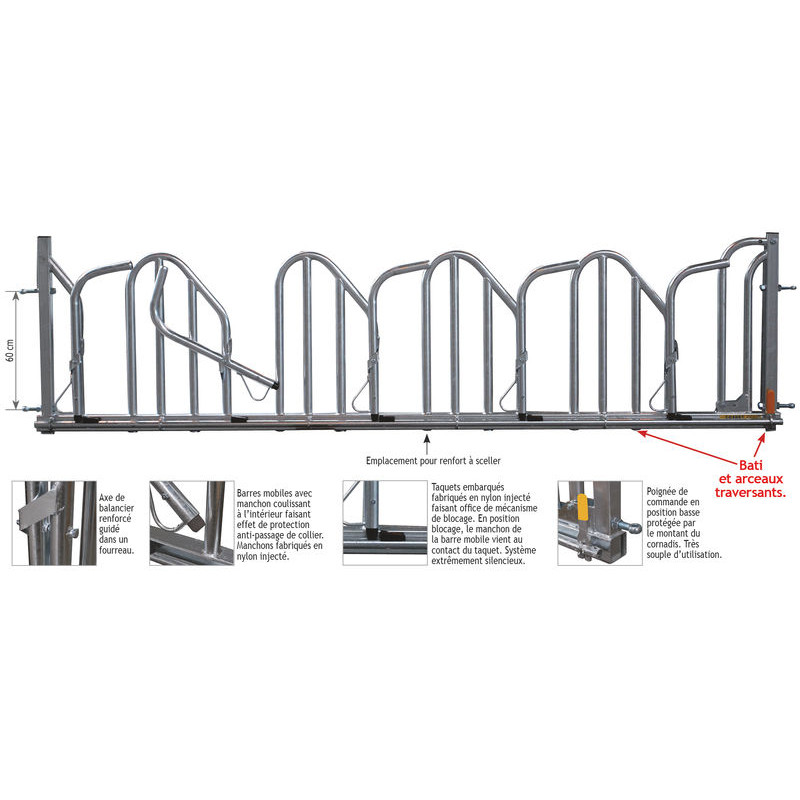

The Swedish PRO headlock is fitted with:

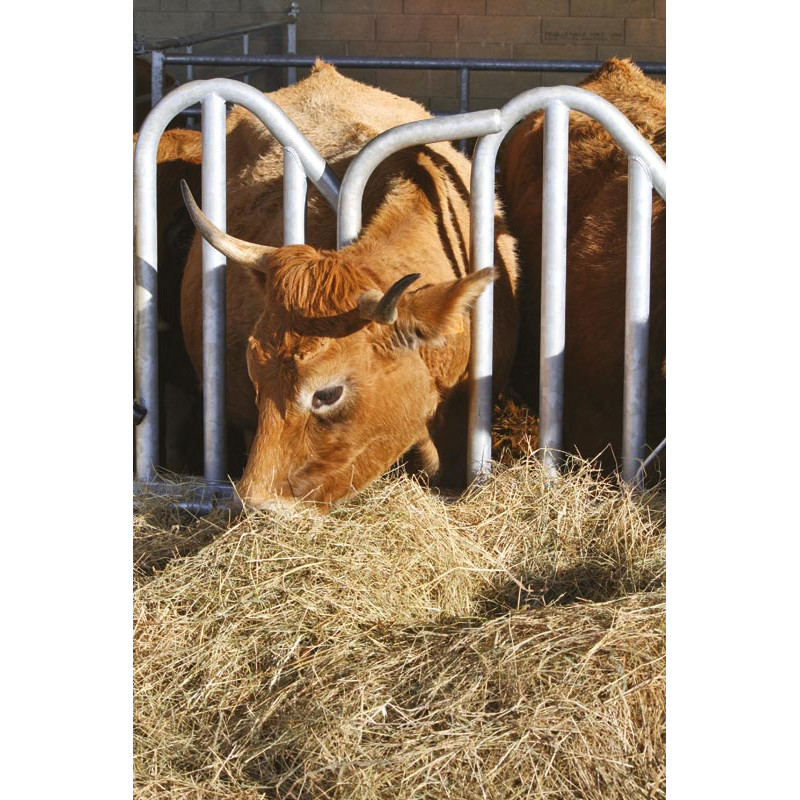

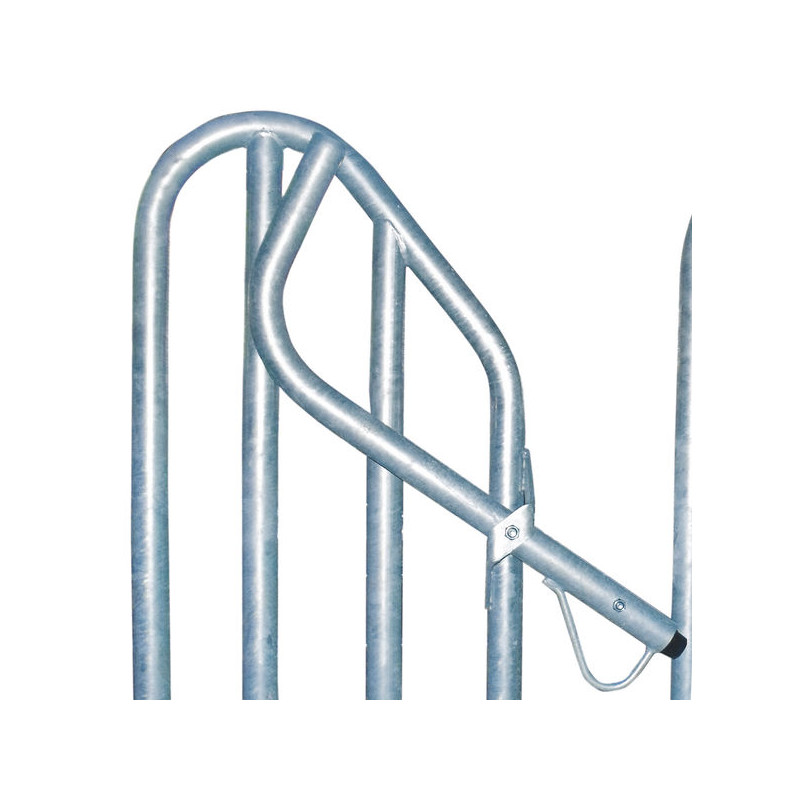

- Tilted cutaway hoops offering ample clearance for young cattle.

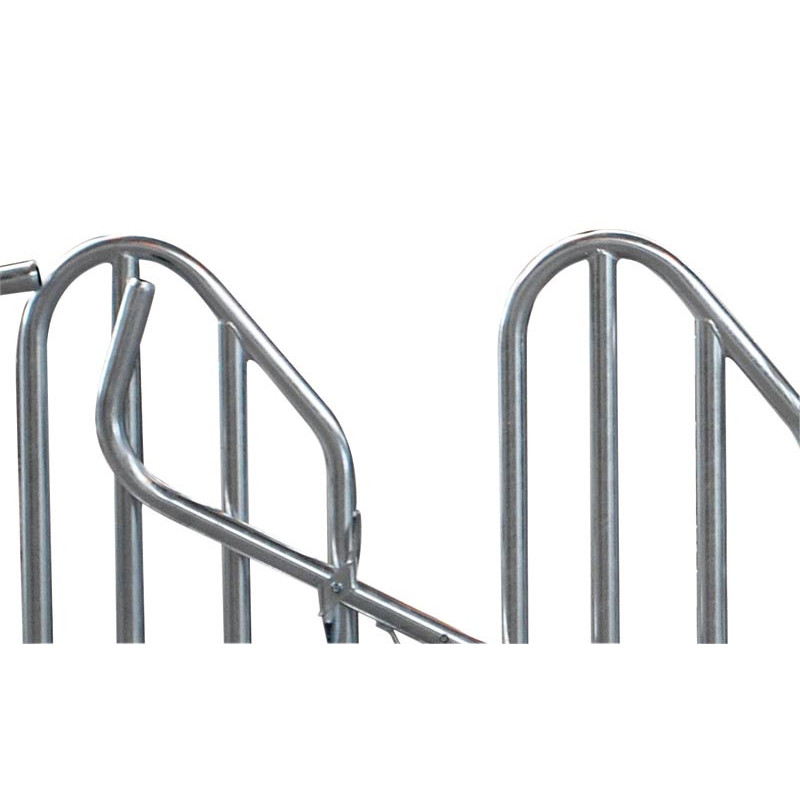

In folded position, the moveable bar retracts into the space of the tombstone avoiding any discomfort for animals.

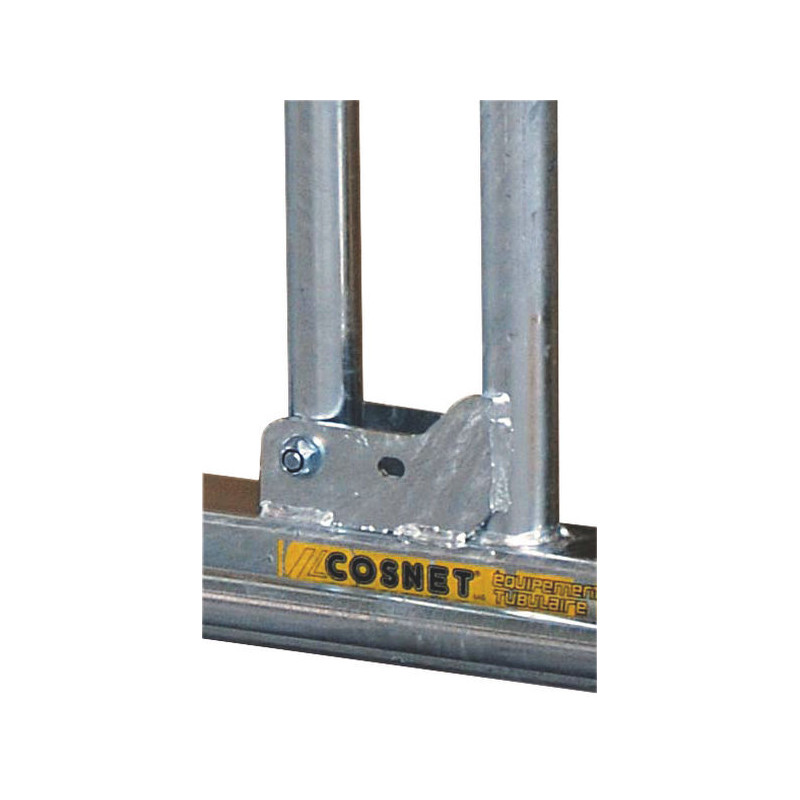

- Reinforced balance pin guided in a sleeve.

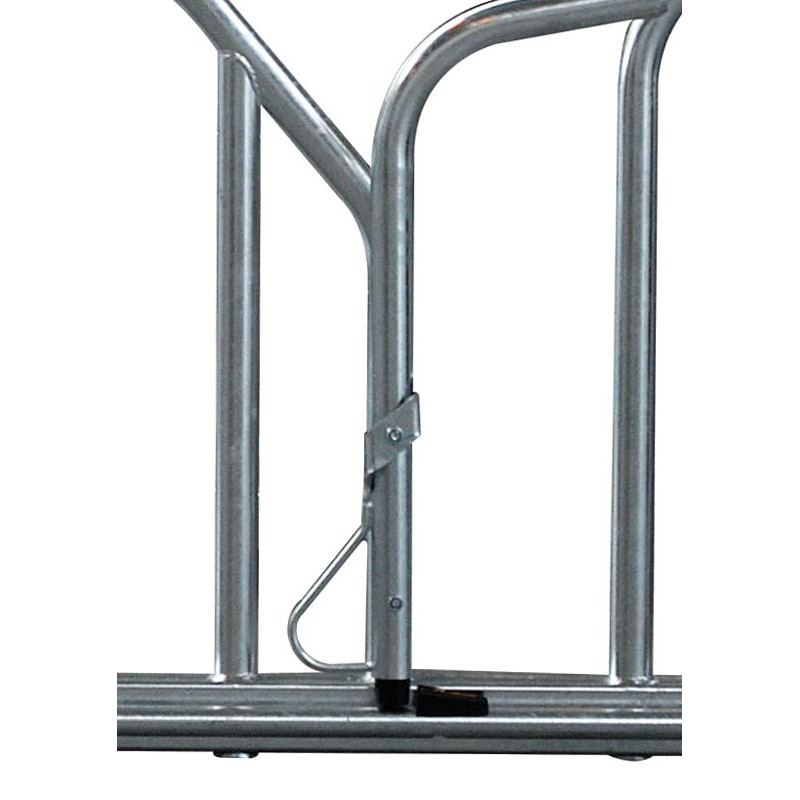

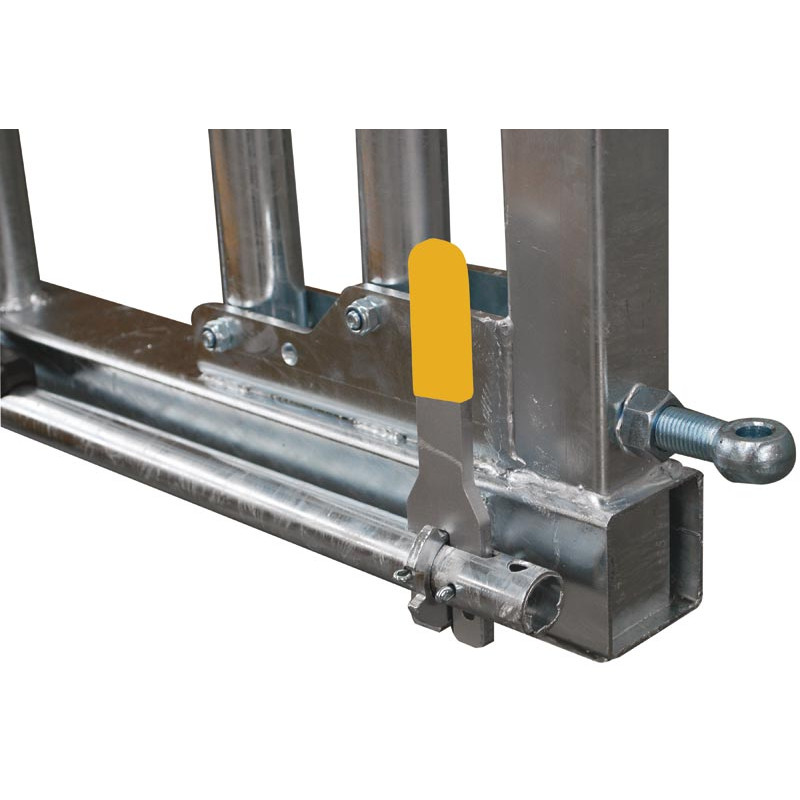

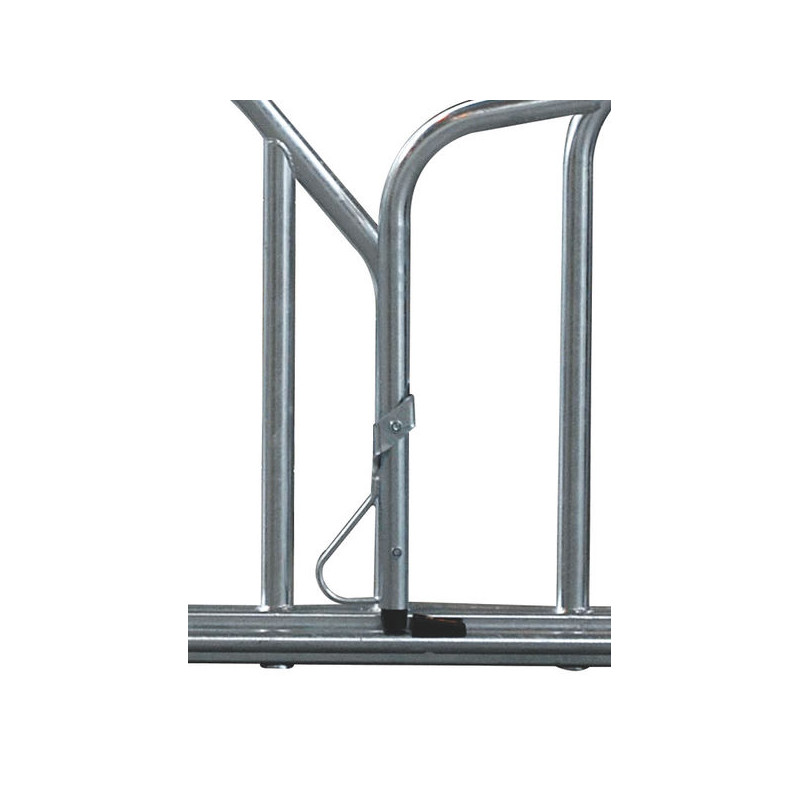

- Low position control handle protected by the headlock’s upright. Very flexible to use.

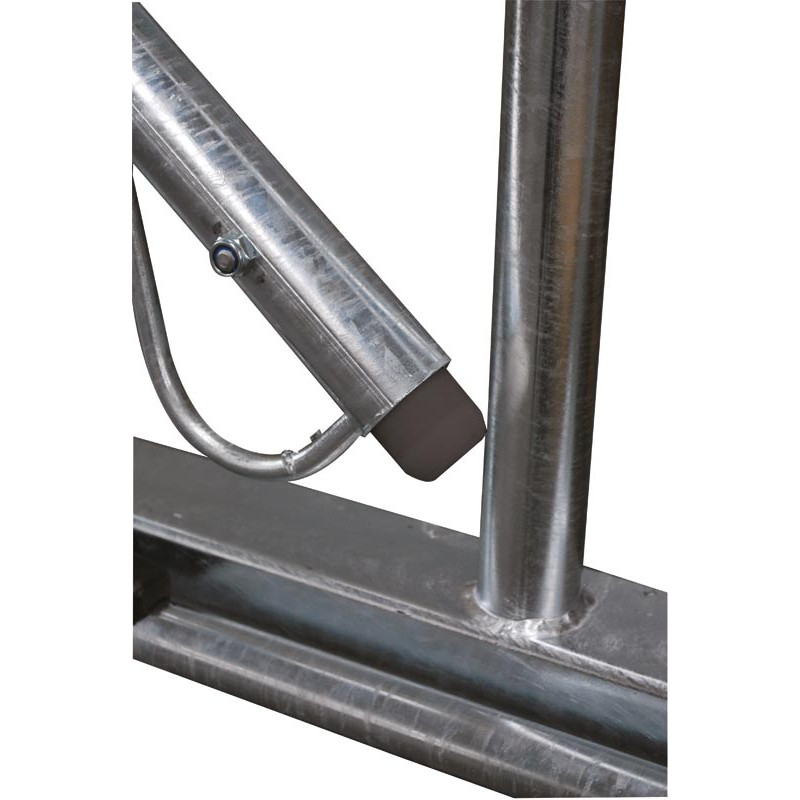

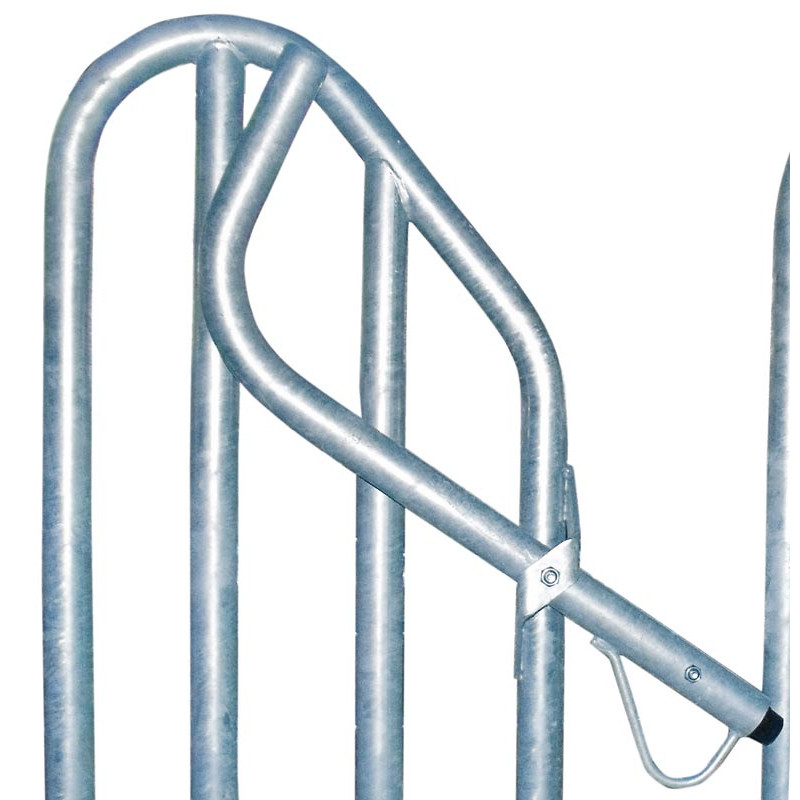

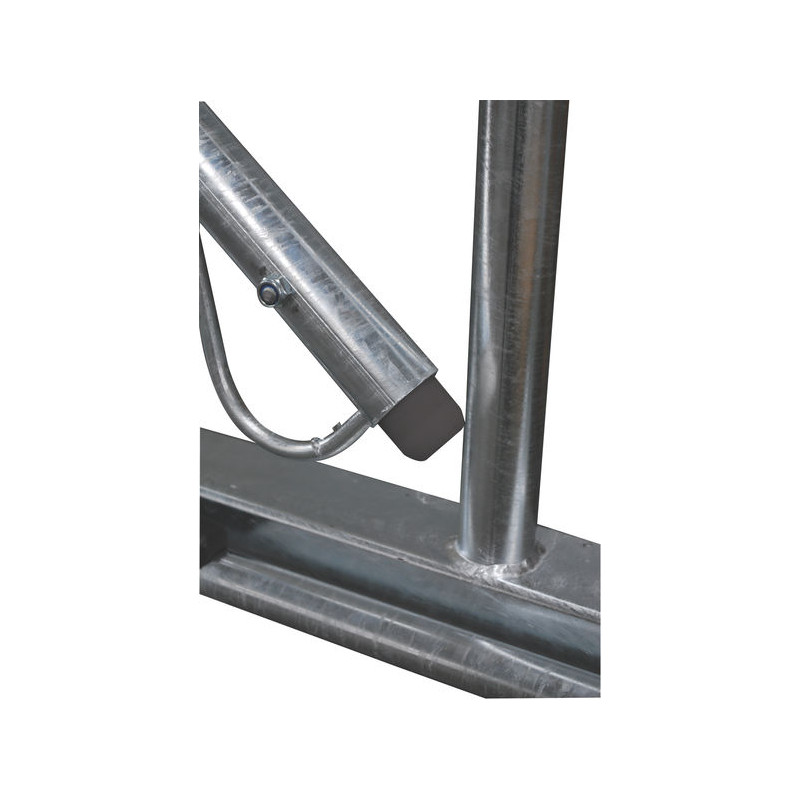

- Moveable bars with sliding sleeve inside acting as collar anti-snagging. Sleeves made of injected nylon.

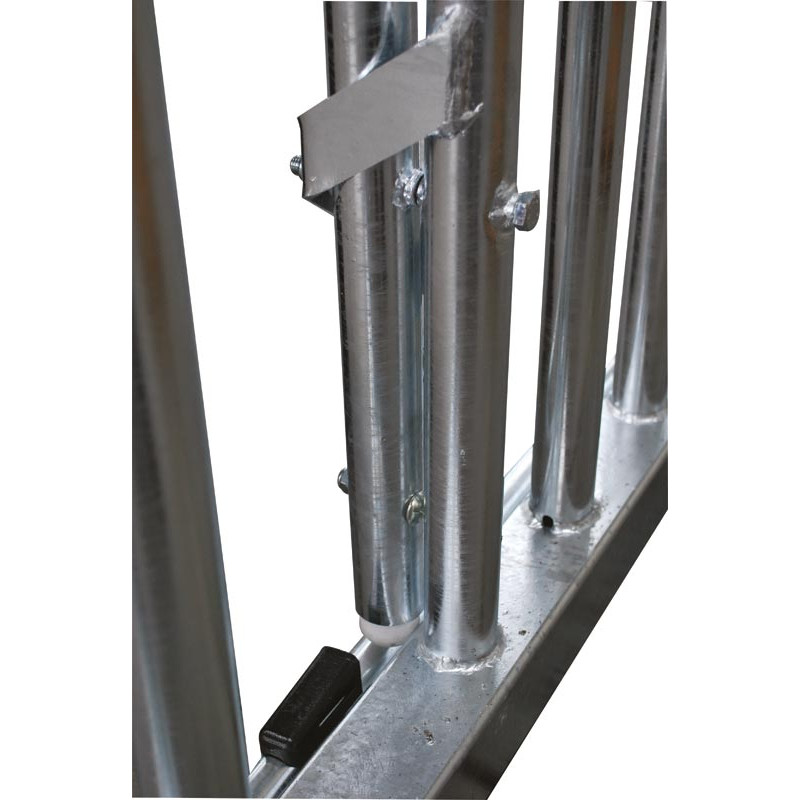

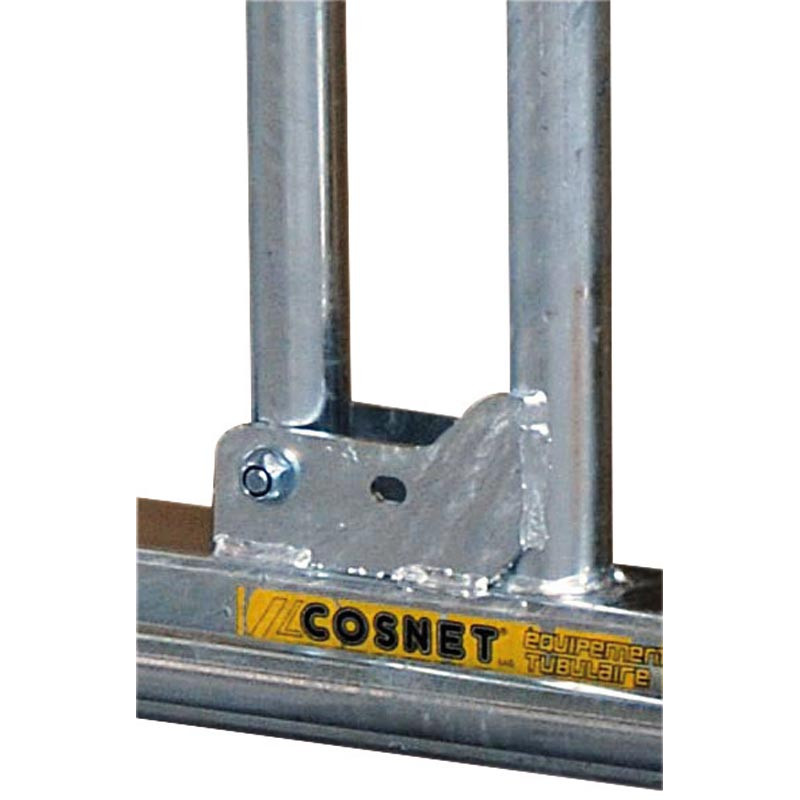

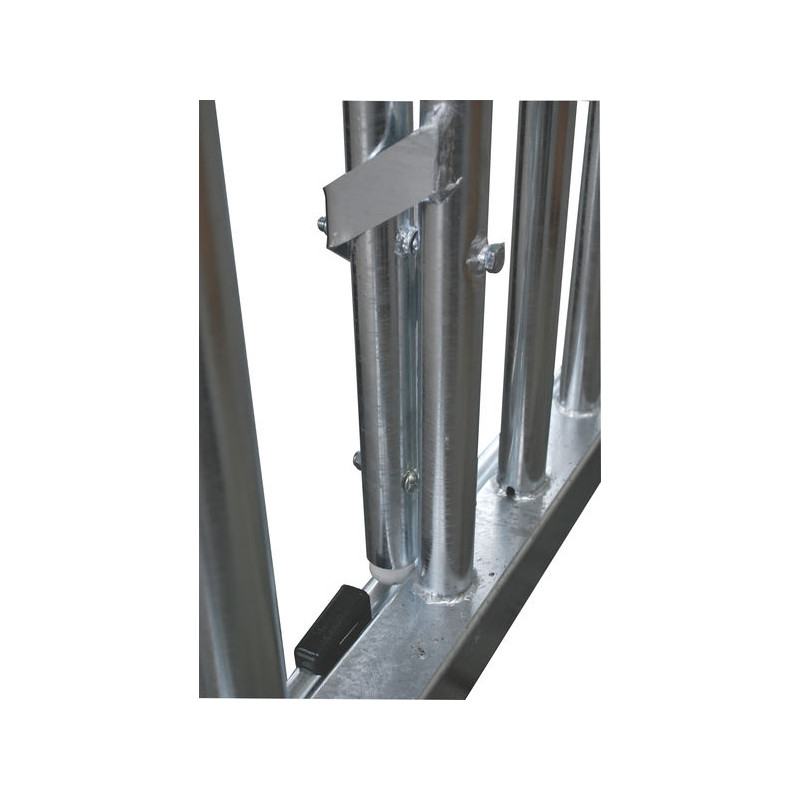

- Embedded tabs made out of injected nylon serving as a locking mechanism. In the locked position, the moveable bar’s sleeve comes into contact with the tab. Extremely quiet system.
- Crossing support and hoops.
- In folded position, the moveable bar retracts into the space of the tombstone avoiding any discomfort for animals.
Option: Pro-Swedish installation on masonry kit (115 35 23) and Pro-Swedish low wall fastening flat bracket (115 35 25).

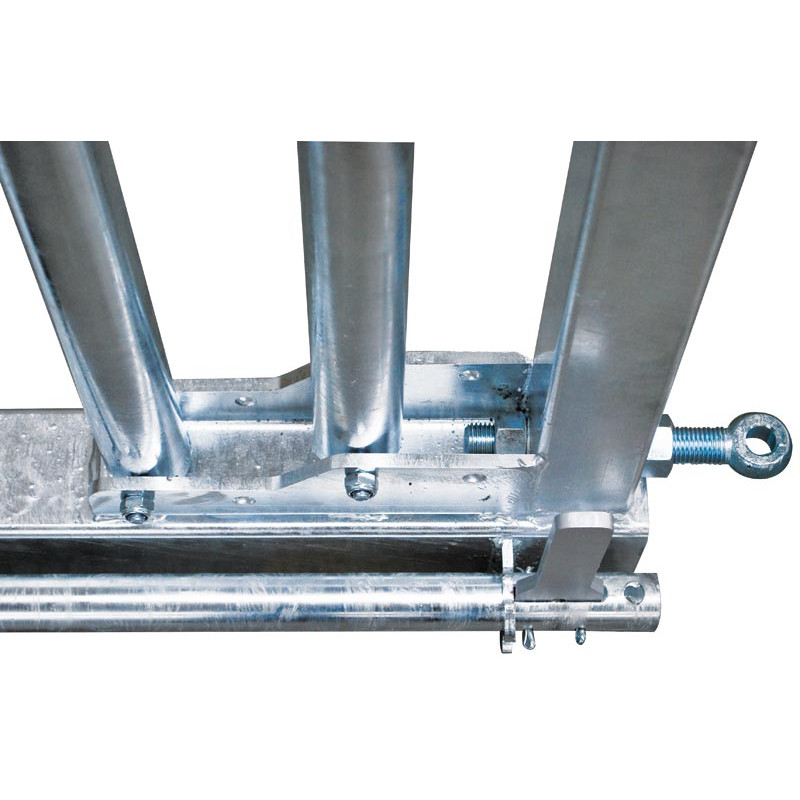

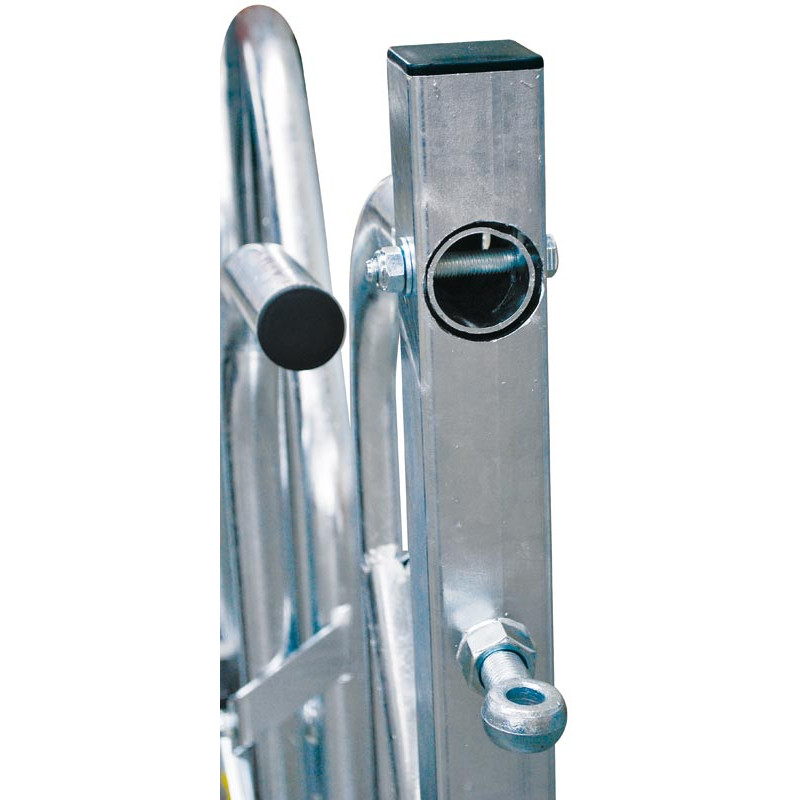

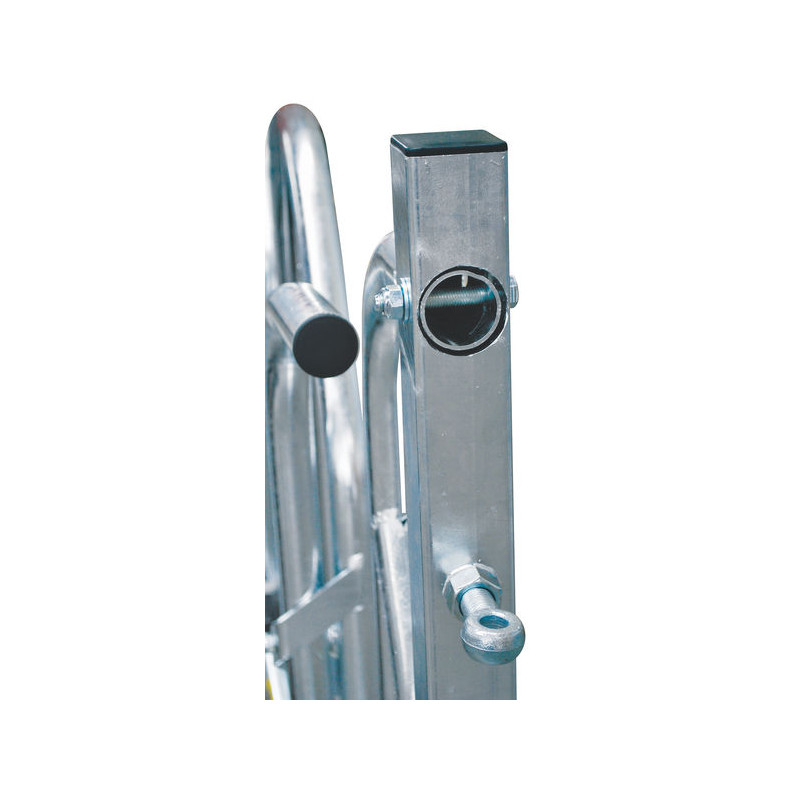

Delivered with four M22 eye bolts and reinforcements to embed according to the model.
- Material
- Galvanised steel
- Length
- 4 m
- Net weight
- 127 kg
- Model
- Swedish Pro
- Packaging
- No packaging
- Fastening centre distance
- 60 cm
- Number of reinforcements to embed
- 1
- Opening for a bull
- with
- Sales unit
- Unit
- Number of spaces
- 5
