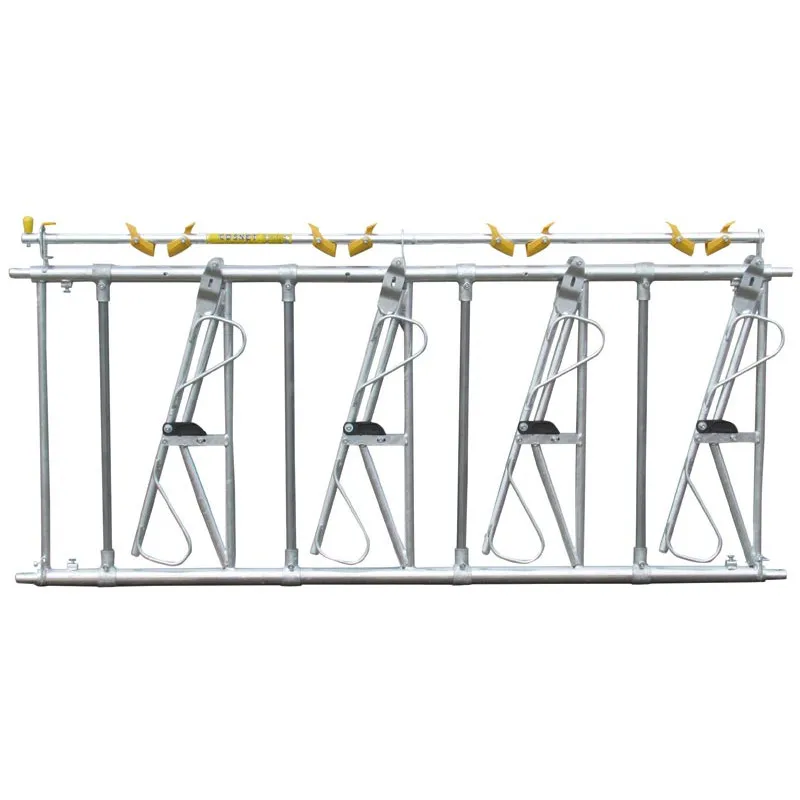

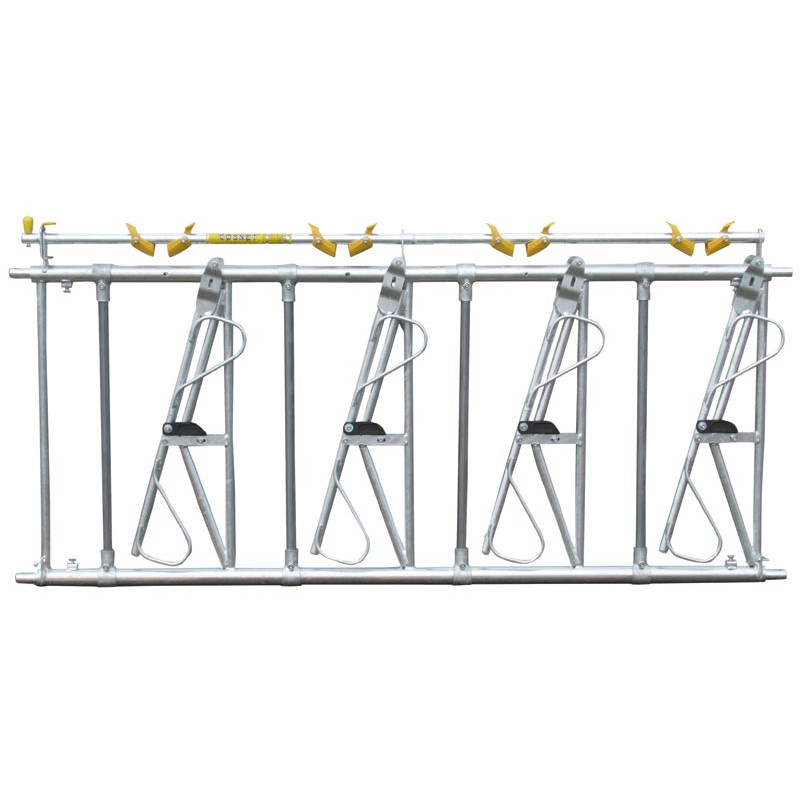

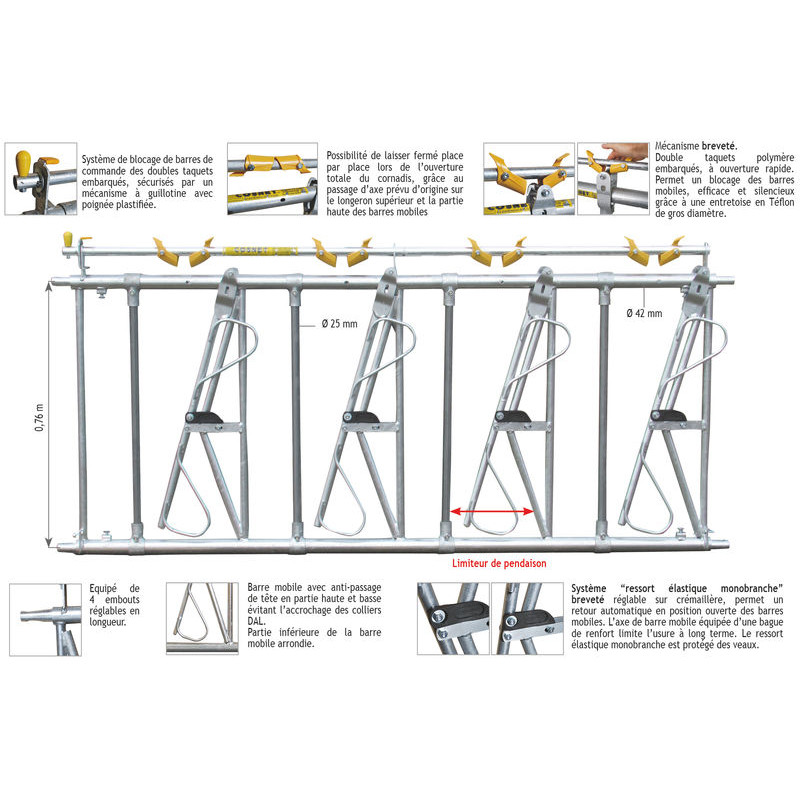

4 places/2 m JUNIOR COMFORT SR calf headlock panel without bucket holder
These "Junior Comfort SR" calf headlock panels are available without bucket holder.
For the 4 and 5 m models, two sets of bucket holders or feed troughs are recommended.
The 4 and 5 m models are respectively delivered with one and two reinforcements to embed.

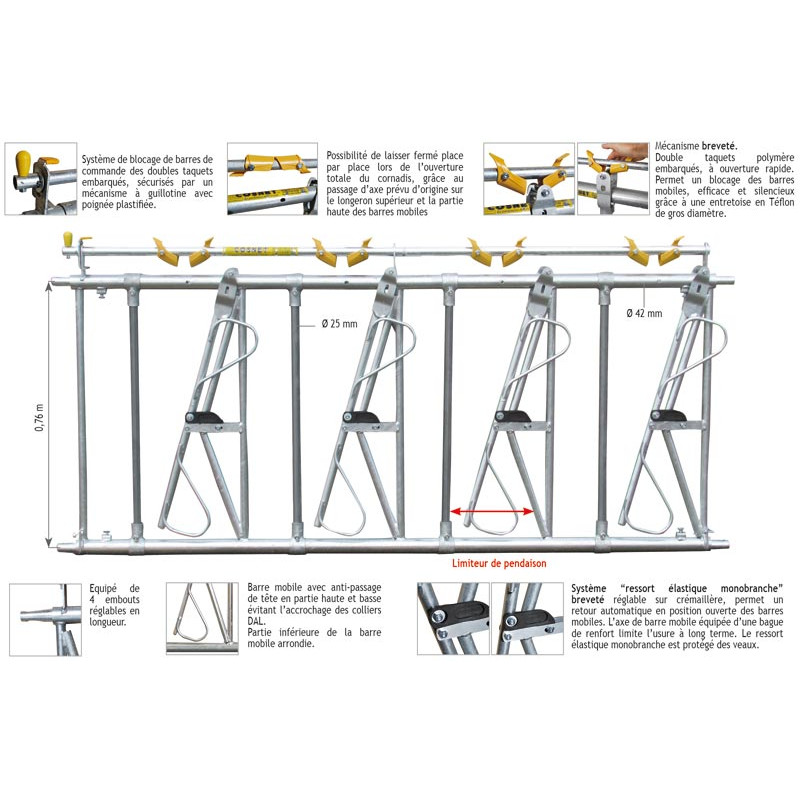

Technical characteristics:
- adjustable neck, anti-choke system, anti-noise,
- collar anti-snagging,
- top and bottom head guard on moveable bar,
- reinforcement ring on each moveable bar axis,
- patented elastic spring system for automatic moveable bar return to open position,
- panel opening in both directions,
- Polymer tabs guaranteed five years, highly resistant, UV and frost stabilised. Safe opening by opening triggering possible.

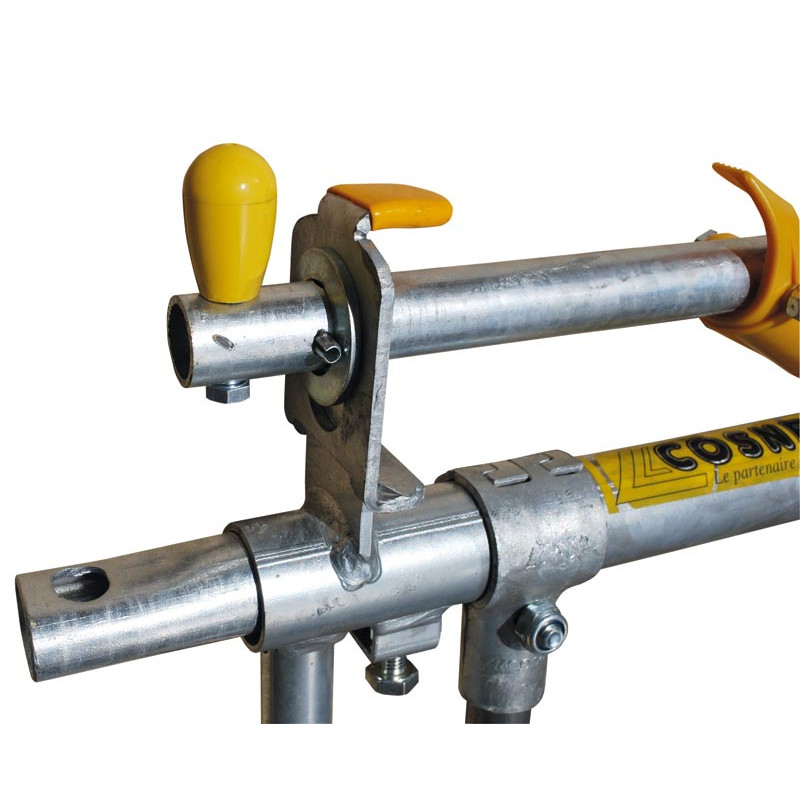

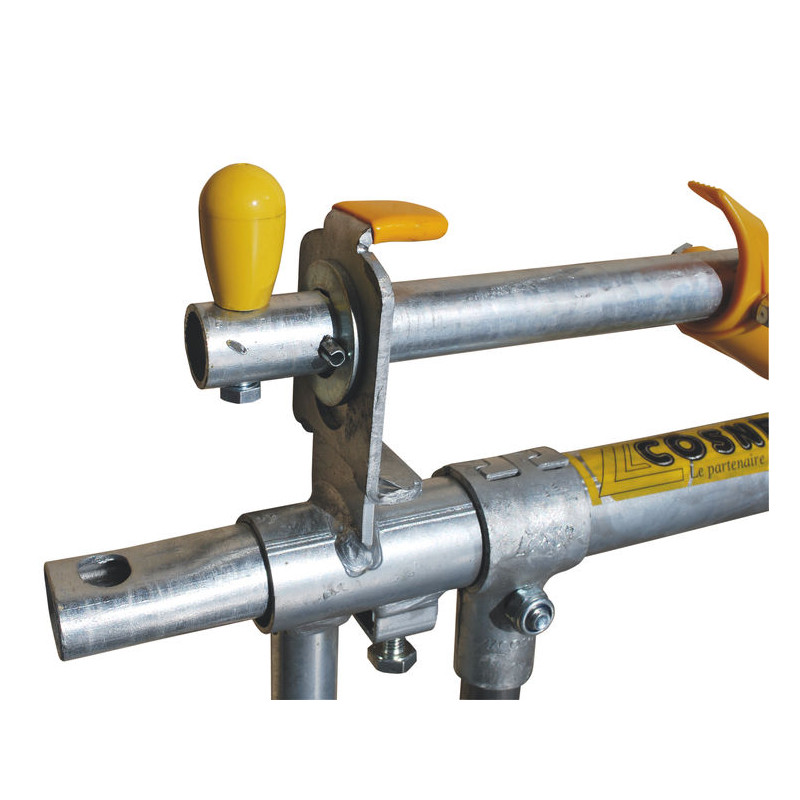

- Locking system for the control bars of the embedded double tabs, secured by a guillotine mechanism with plastic-coated handle.

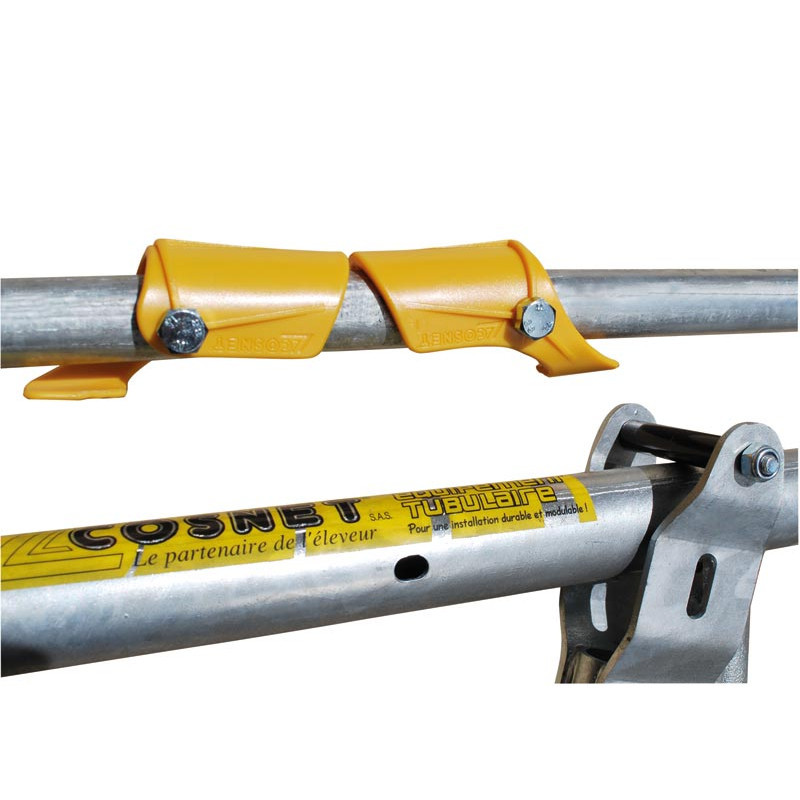

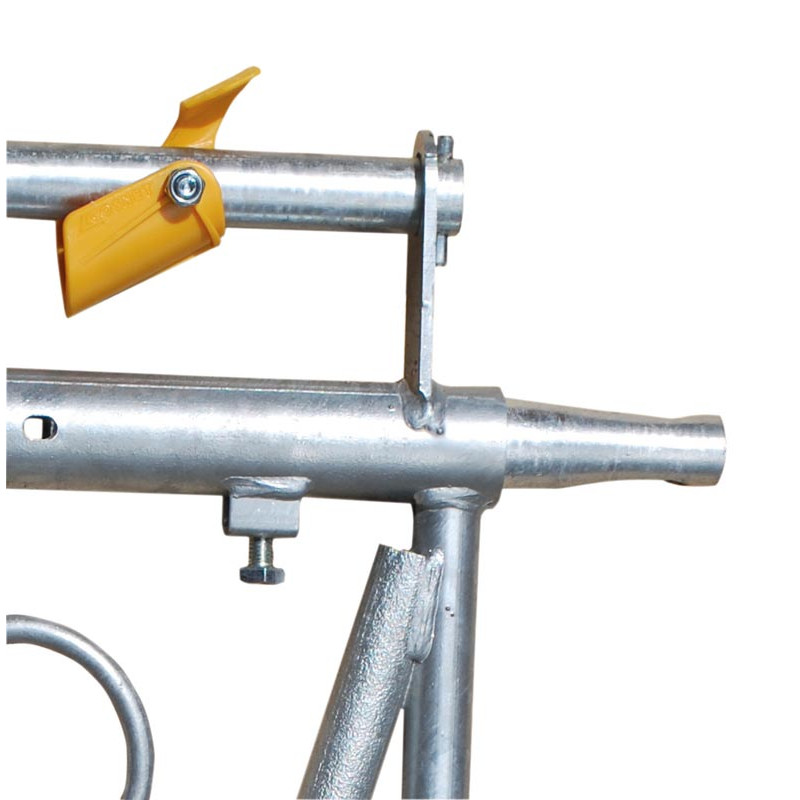

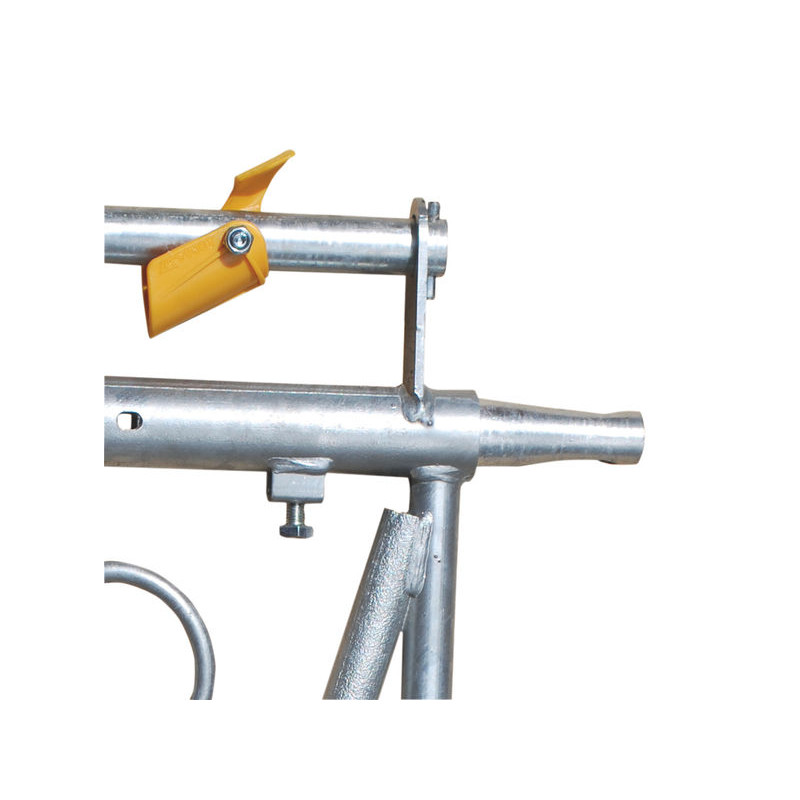

- Individual openings can be left closed when the headlock panel is fully opened thanks to the factory-fitted pin on the top side rail and the top section of the moveable bars.

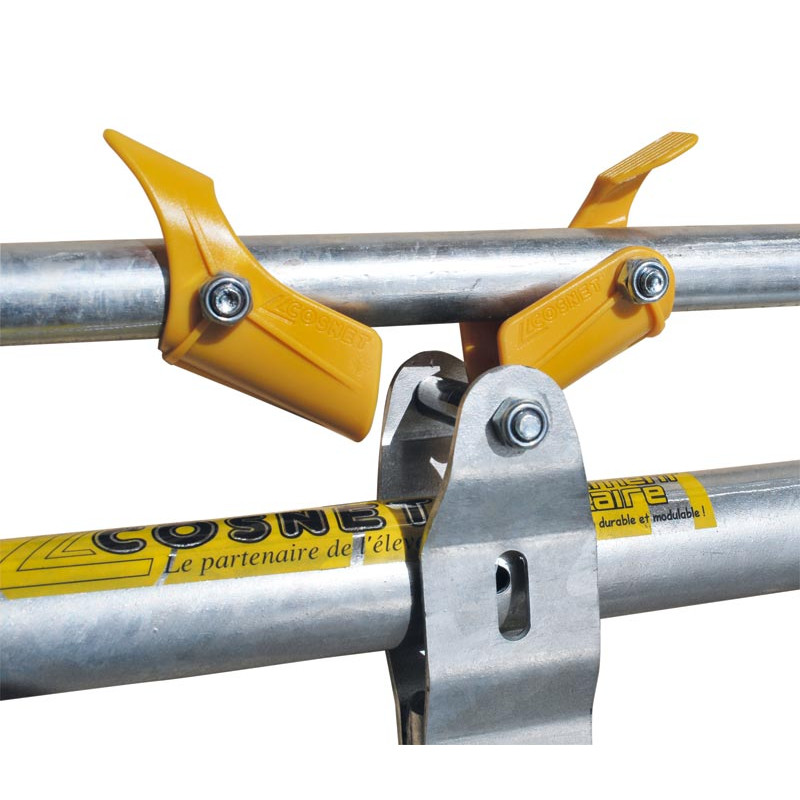

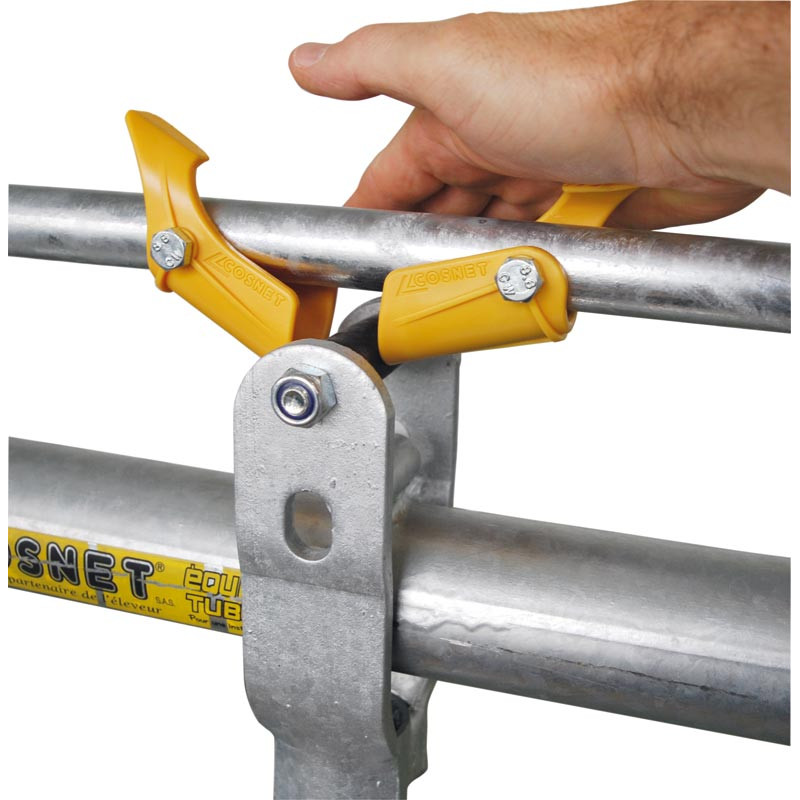

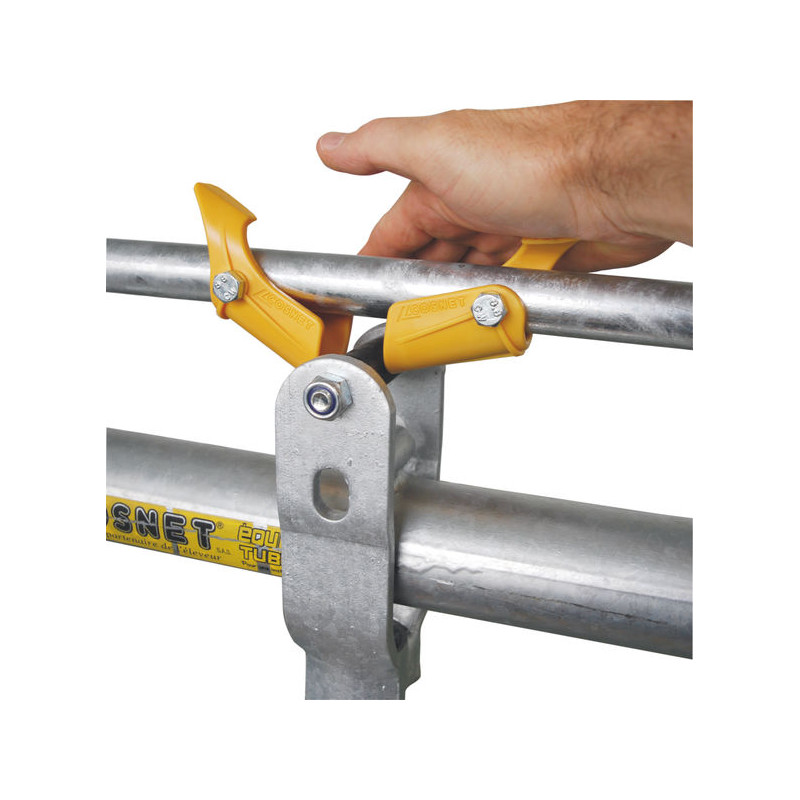

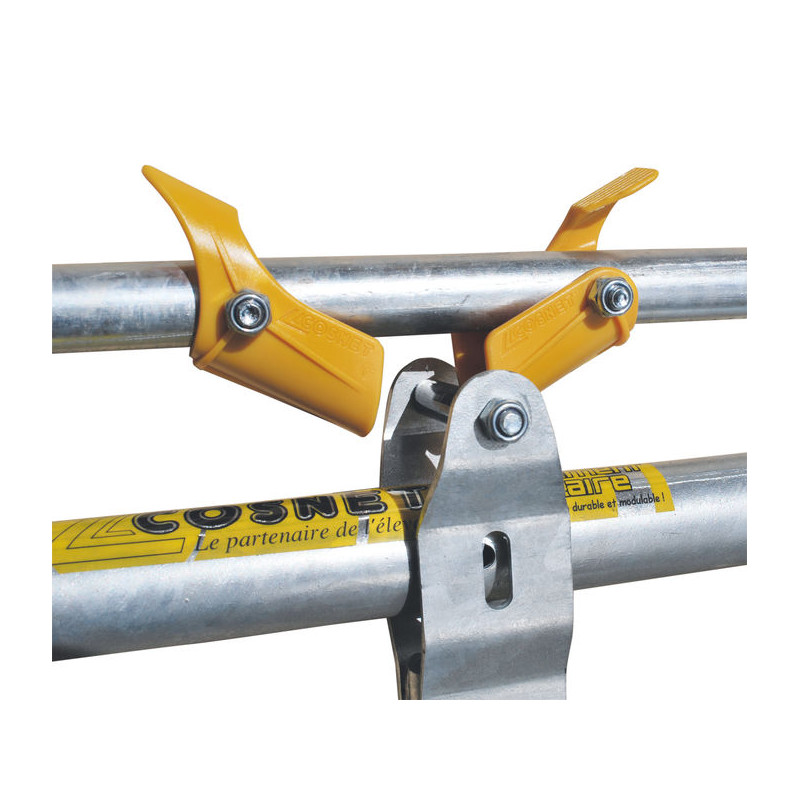

- Patented system. Double quick release polymer embedded tabs. Effectively and silently locks moveable bars thanks to a large diameter Teflon spacer.
- Strangulation prevention device.
- Fitted with four length-adjustable ends.

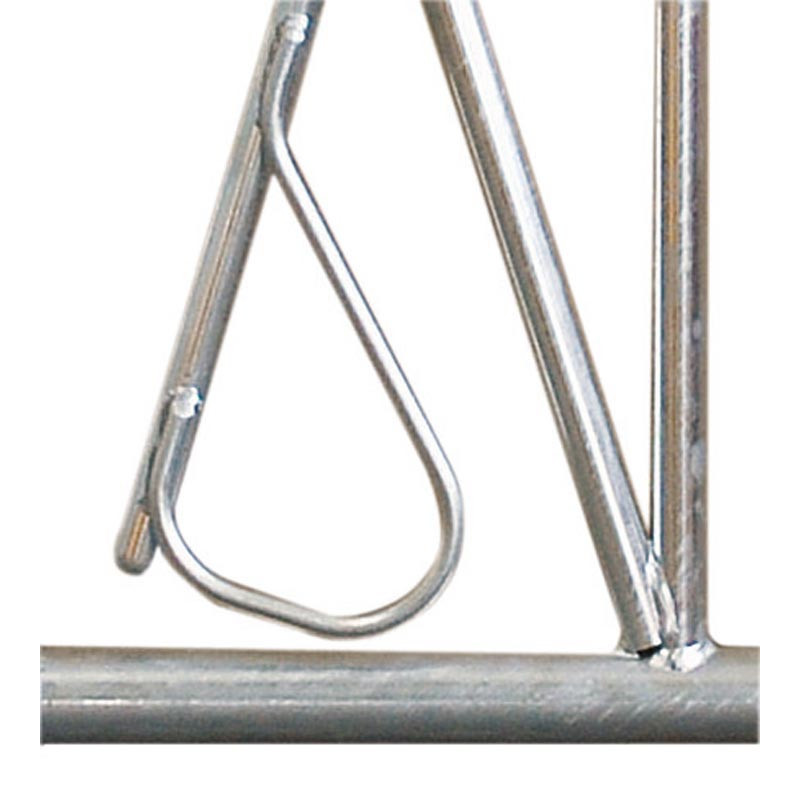

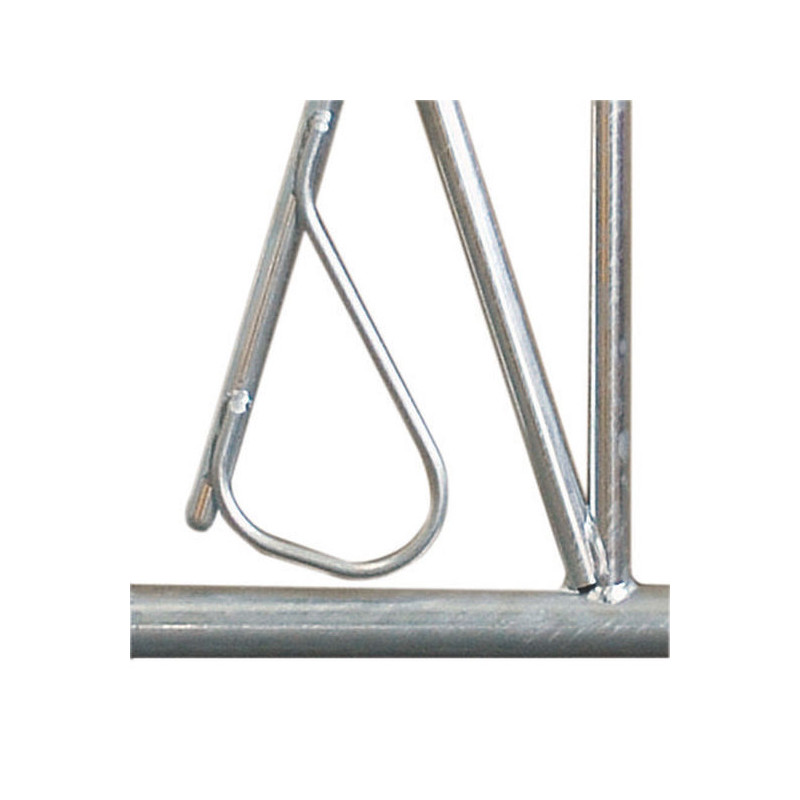

- Moveable bar with top and bottom head guard which also prevents concentrate feed dispenser collar snagging. Lower section of the moveable bar rounded.

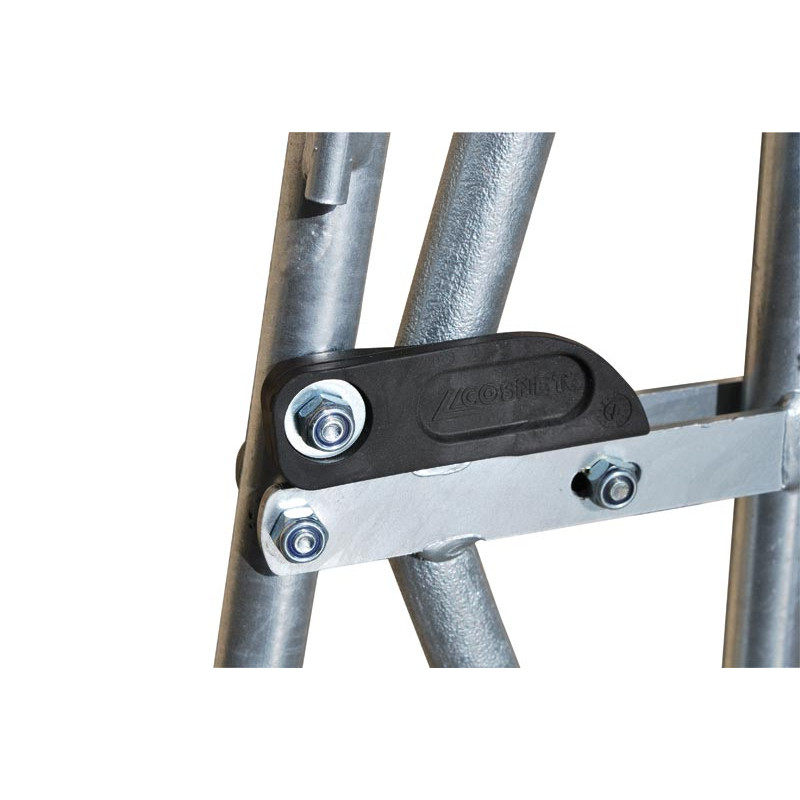

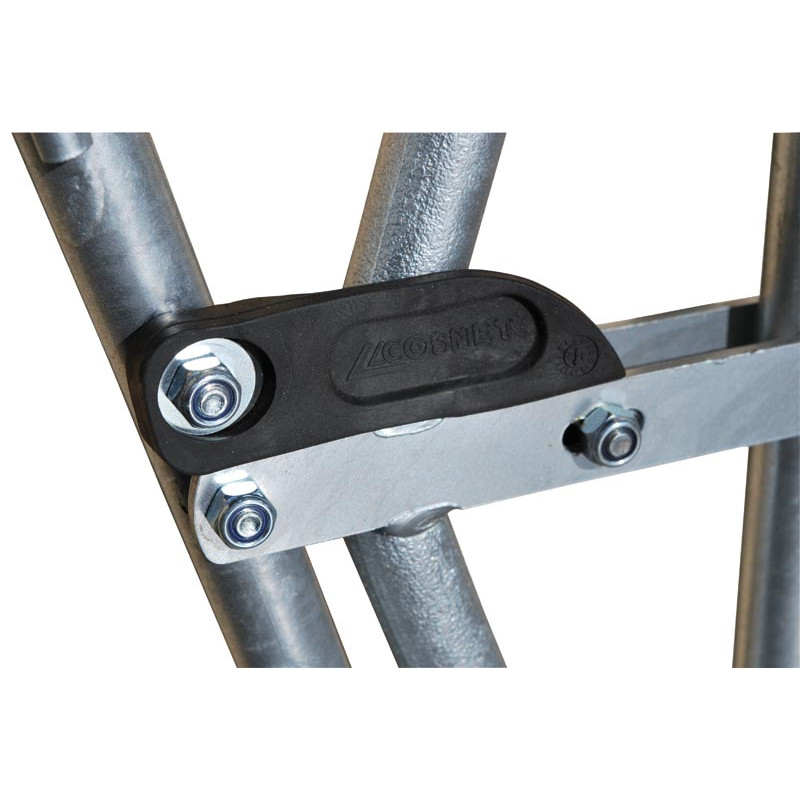

- Patented single-branch elastic spring system adjustable on a rack allows each moveable bar to automatically return to open position. Moveable bar axis fitted with a reinforcement ring limiting long-term wear. The single-branch elastic spring is protected from the calves.
- Material
- Galvanised steel
- Length
- 2 m
- Net weight
- 36 kg
- Model
- Junior Comfort SR without bucket holder
- Packaging
- No packaging
- Number of openings
- 4
- Sales unit
- Unit
