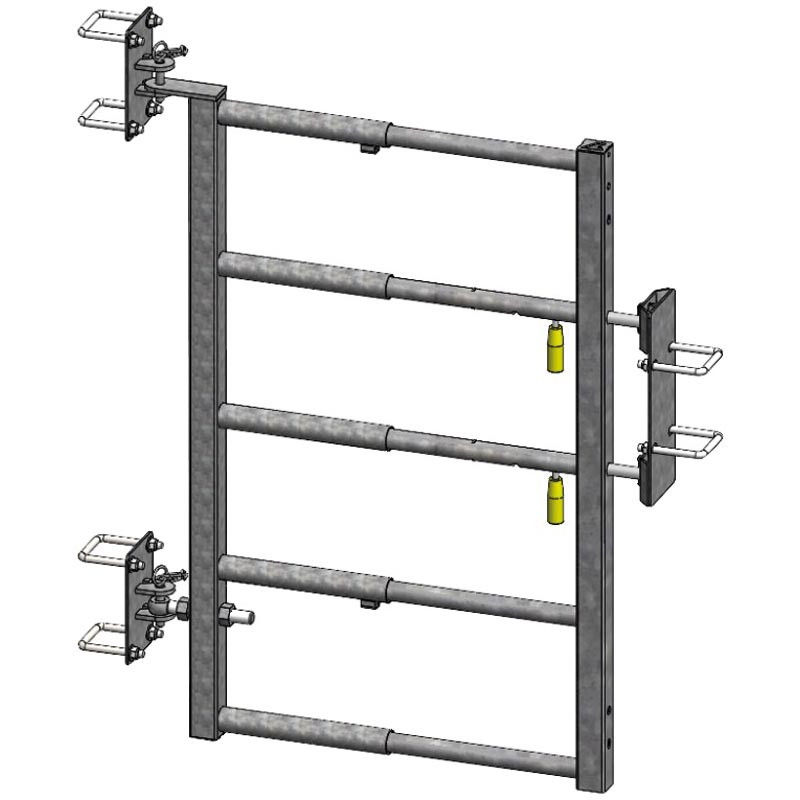

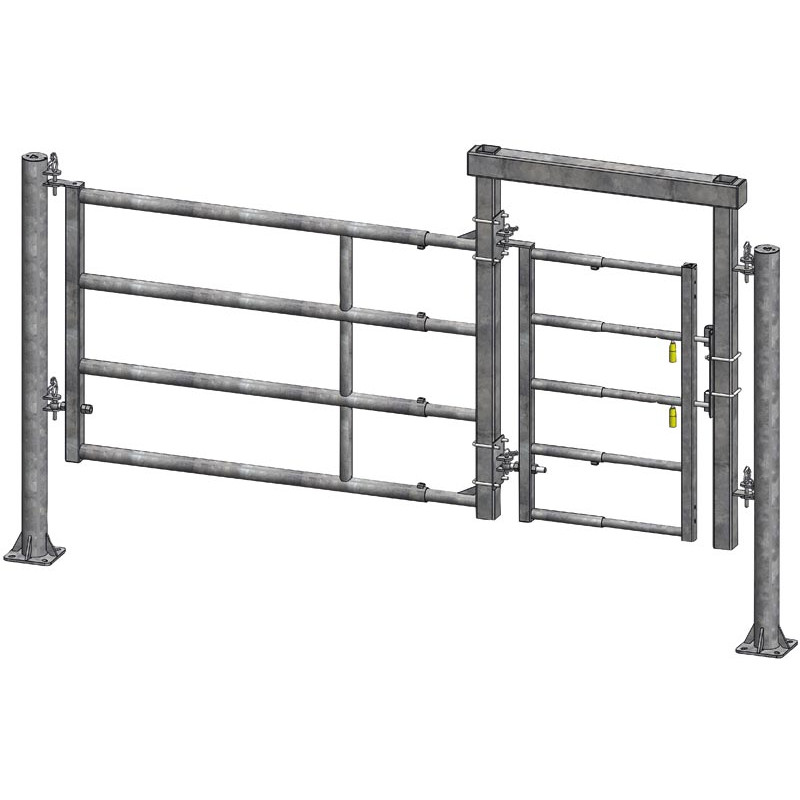

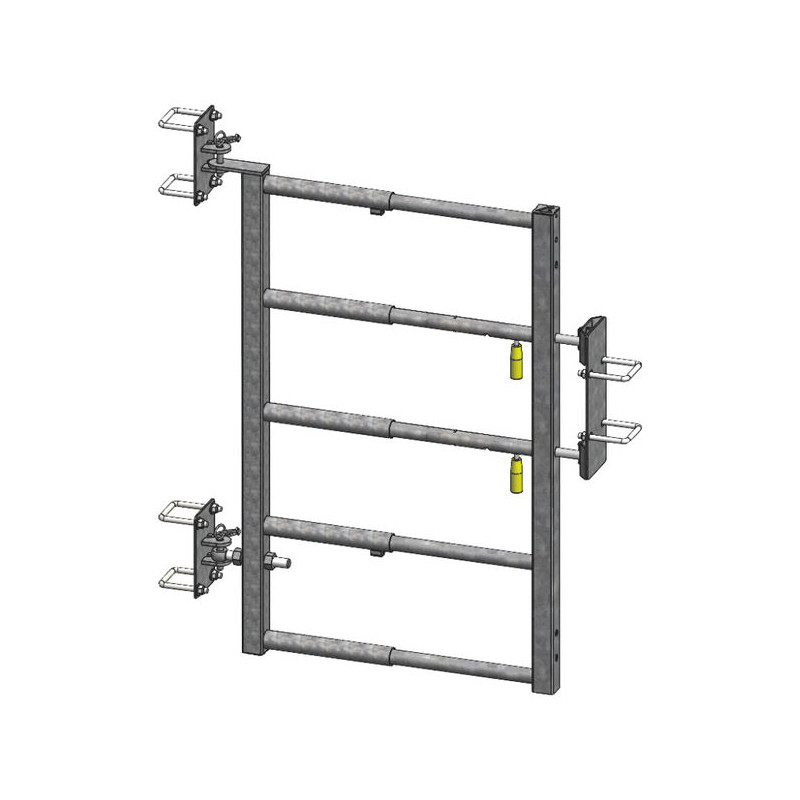

Extendable 5-rail gate with EASYLOCK latch for animals
Technical characteristics:
Rear end:

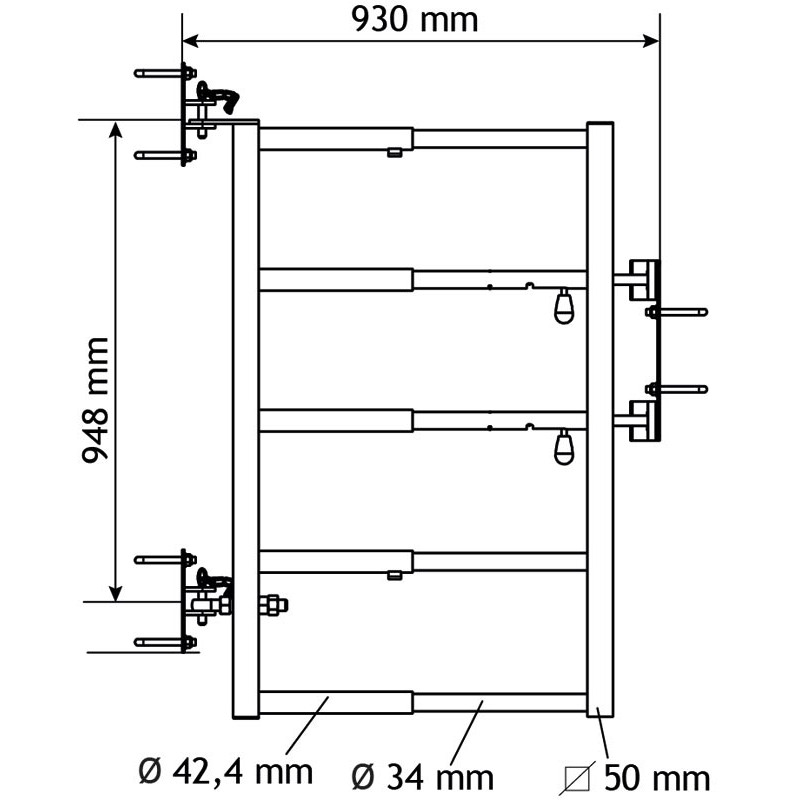

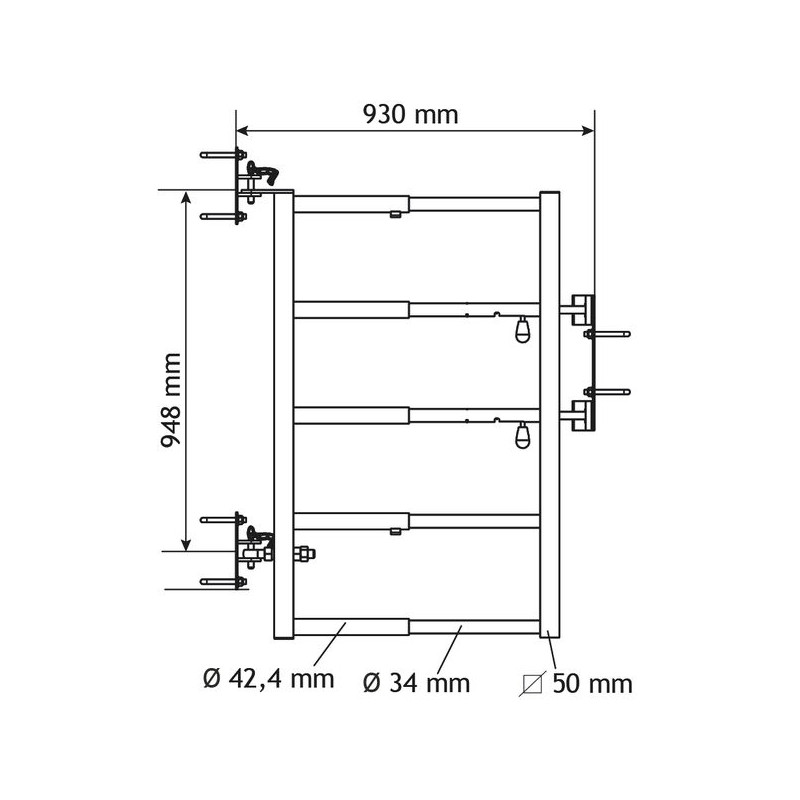

- 5 Ø 42.4 mm rails on two rails by cage bolts and nuts.
- 1 square 50 mm upright.
- 1 fastening flat bracket on the top section.
- 1 adjustment eye bolt on the bottom section.
- 2 fastening brackets with square 80 x 80 mm U-bolts
Front end:
- 5 Ø 34 mm rails.
- 1 square 50 mm upright.
- 1 double bracket accommodating an Easylock latch with square 80 x 80 mm U-bolts

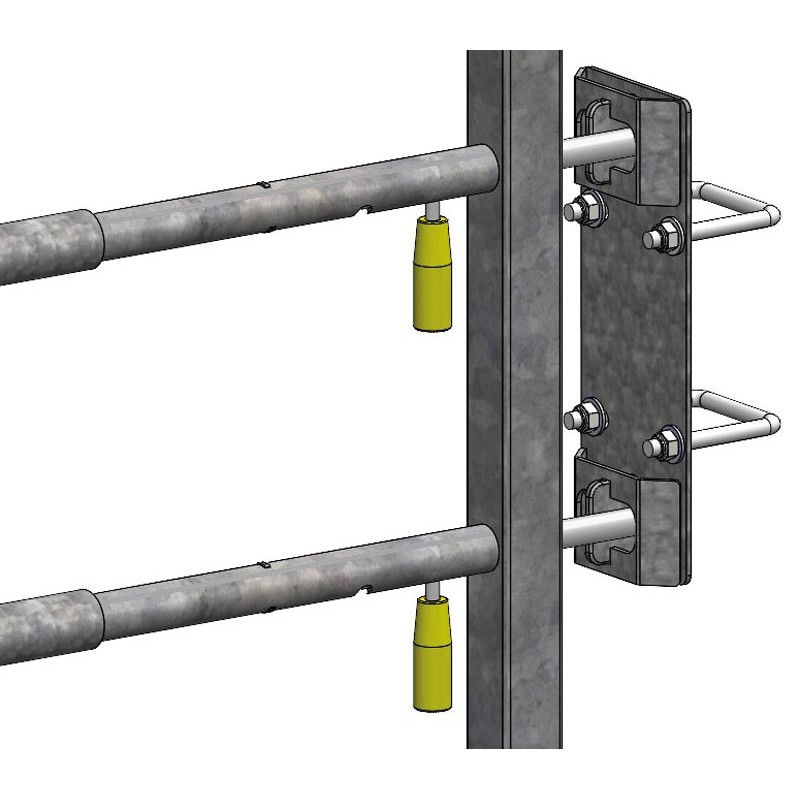

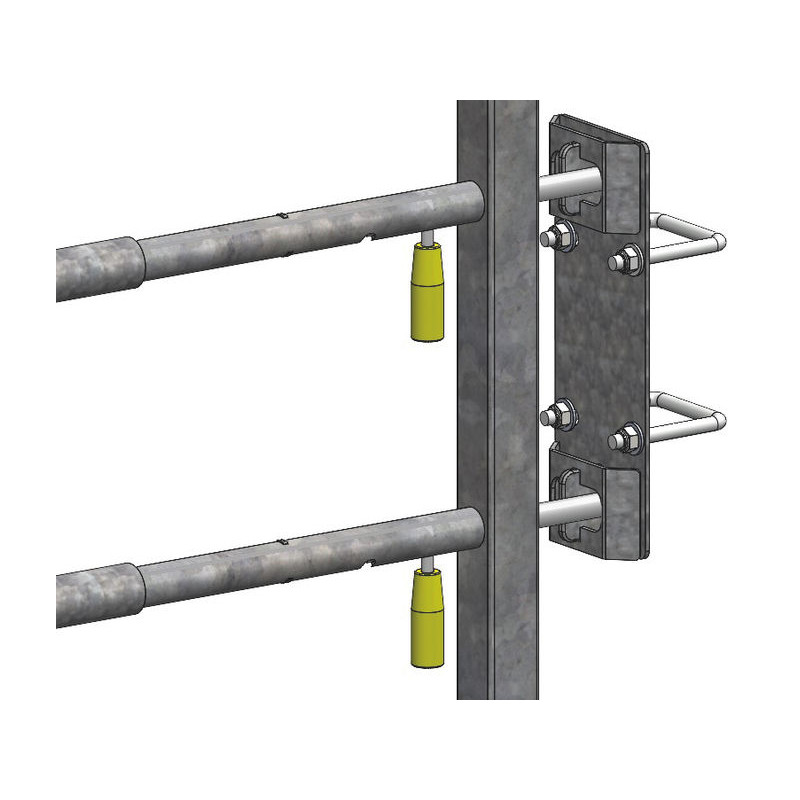

- 2 Easylock Ø 20 mm automatic latches. Latches guided directly into the rails, avoiding any risk of snagging collars or injury to the animals from add-on parts. It has a locking system in closed position, right or left, thanks to its patented Easylock LATCH support.
Its spring system is designed to provide a certain resistance when operated, to prevent it from being opened by the animals.
- Material
- Galvanised steel
- Length
- 0.93 m
- Number of rails
- 5 rails
- Height
- 1150 mm
- Net weight
- 28.5 kg
- Model
- Extendable
- Packaging
- No packaging
- Fastening centre distance
- 948 mm
- Sales unit
- Unit
