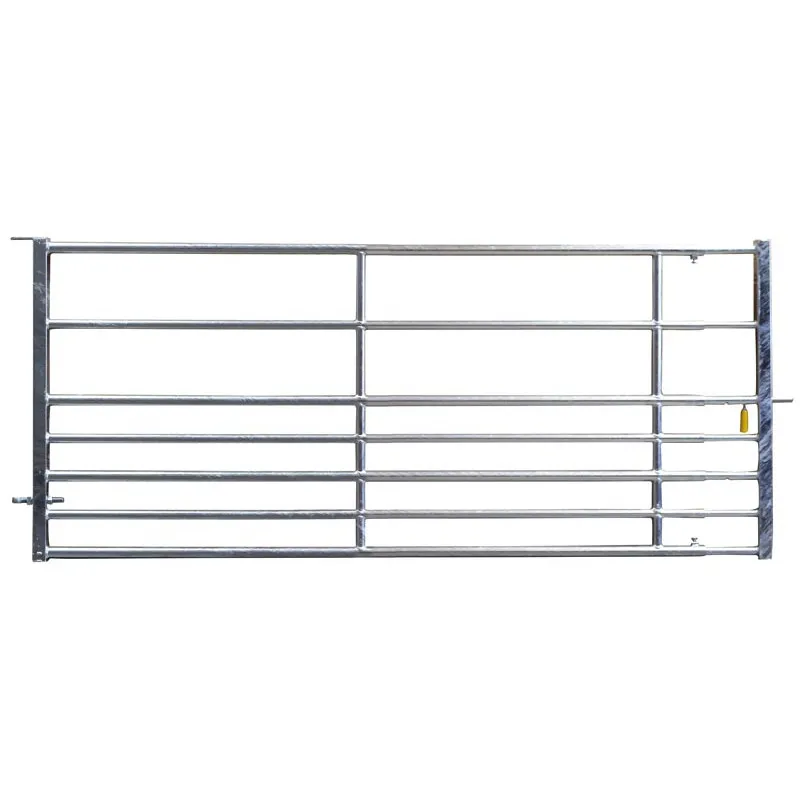

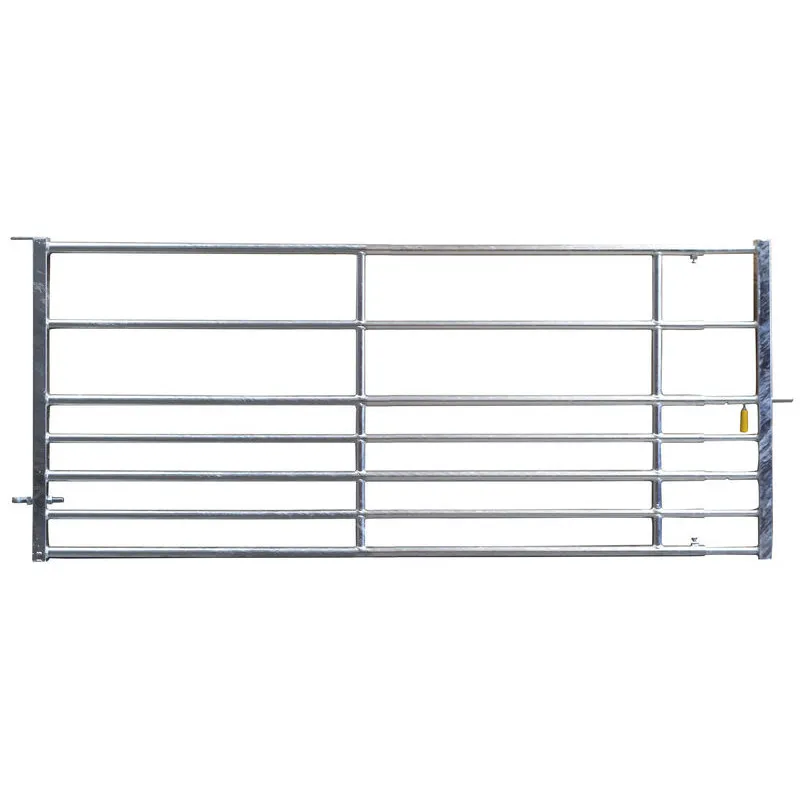

Extendable 2/3 m field panel
Tighter tubes on bottom part designed for small animals : calves, sheep, goats, ...
Features:

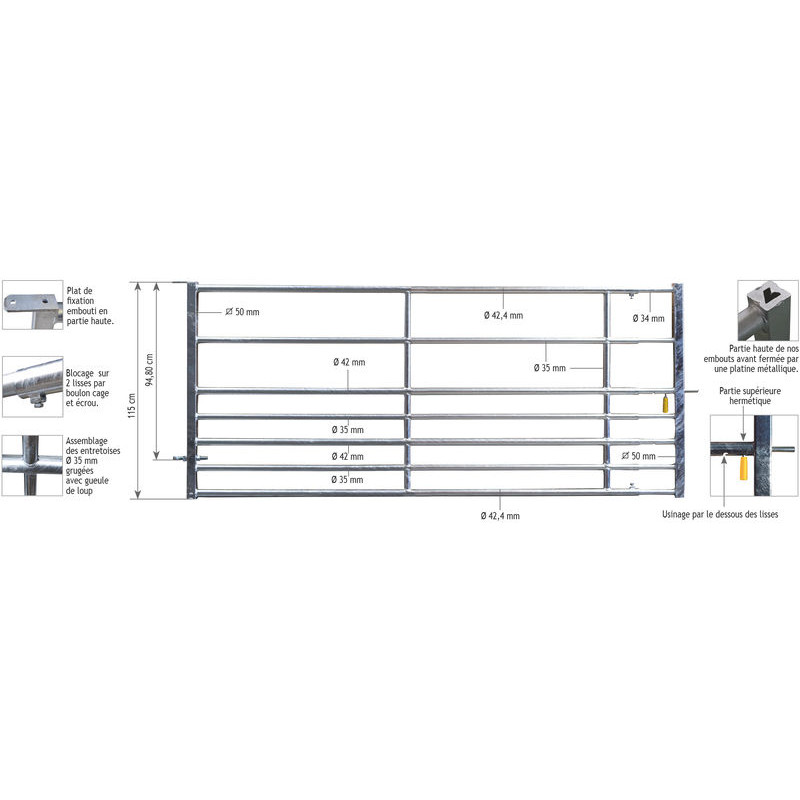

- Hot-dip galvanized after assembly - Front and rear post tubes square 50 mm, thickness 2 mm,
Rear part :
- 4 horizontal tubes Ø 42,4 mm with stoppers on top & bottom tubes thanks to screws and bolts,
- 3 horizontal tubes Ø 35 mm,
- Struts Ø 35 mm U-shape welded,
- Quick mounting and adjustment thanks to a bottom eyebolt, assembled through a bushing.
Front part :
- 4 horizontal tubes Ø 33,7 mm,
- 3 horizontal tubes Ø 26,9 mm.
Available in different versions :
- panel with 2 fixing plates to bolt with a 94,8cm center space.
- 1 automatic latch "Easylock" Ø 20 mm, incorporated in the tube (a second latch can be added as an option, to be fitted inside 3rd tube from bottom).
Top plate welded on upper part.
Adjustment on top & bottom tibes with screw system.
Vertical tubes Ø 42 mm U-shape welded
Front square post tube with closed top
An additional "Easylock" locker can be added on 3rd tube Ø 42,4 mm, pre-cut.
- Material
- Galvanised steel
- Length
- 2 to 3 m
- Number of rails
- 7
- Height
- 1.15 m
- Diameter
- 42.4/35 mm
- Number of locks
- 1
- Number of spacers
- 1
- Net weight
- 48 kg
- Packaging
- Pallet
- Sales unit
- Unit
