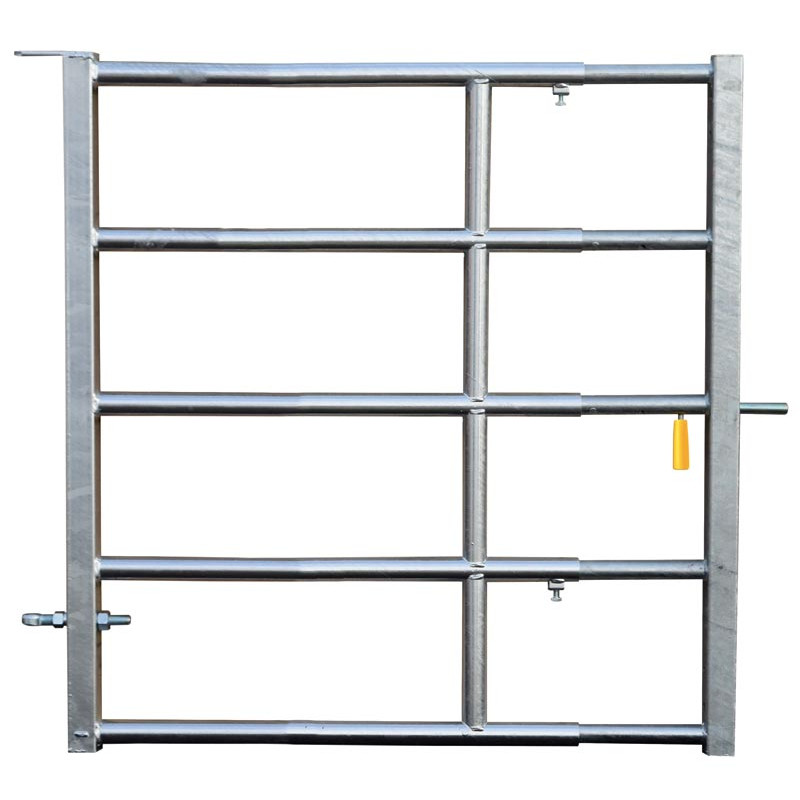

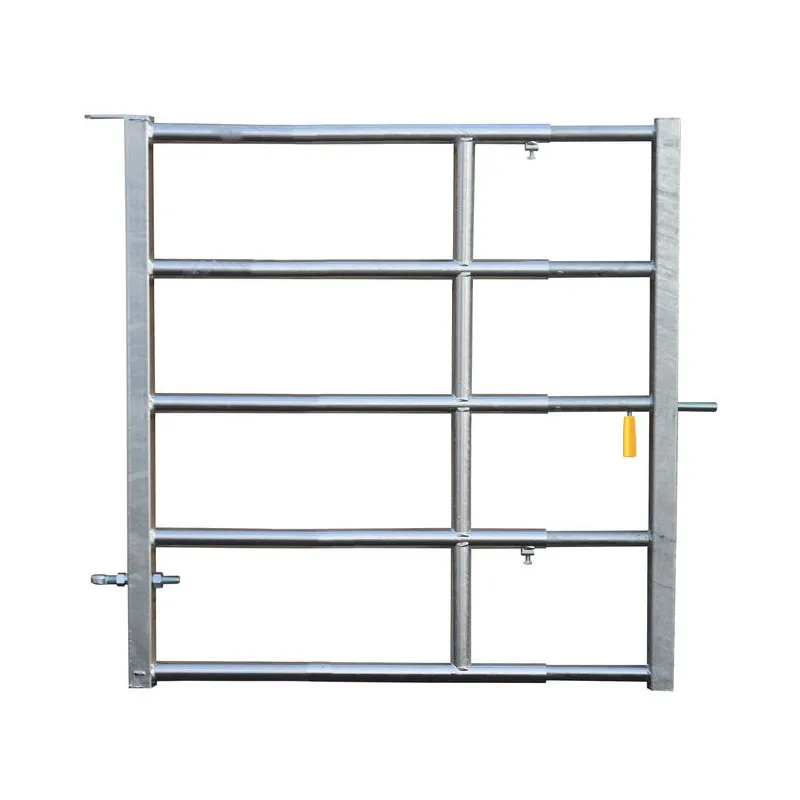

1.10/2 m extendable Ø 42.4 mm field gates with one latch

Latch threaded in the rails of the front section of the barrier.
Safe and without risk of snagging collars.

Characteristics:
- Hot-dip galvanised after assembly,
- 50 x 50 mm thickness 2 mm, front and rear uprights,
Rear section:
- 5 diam. 42.4 mm cross rails with locks on two rails through cage bolts and nuts,
- Ø 42.4 mm spacers with round notches,
- Rapid fastening and adjustment thanks to a flat bracket on the top and a threaded eye bolt in a sleeve on the lower part.
Front section:
- 5 diam. 34 mm cross rails,
Available in various versions:
- panel with two fastening flat brackets to screw to the 94.8 cm centre distance,
- 1 Ø 20 mm "Easylock" automatic lock, guided in a rail,
- 2 Ø 20 mm "Easylock" locks, guided in two rails,
- drinker/column opening.
- drinker/column opening.

Fastening flat bracket stamped on the top section.
Locks on two rails with a cage bolt and nut.
Assembly of Ø 42 mm spacers with round notches.
Top section of our front ends closed by a metal mounting plate.
