3-rail rear panel for 2/3 m stall barrier

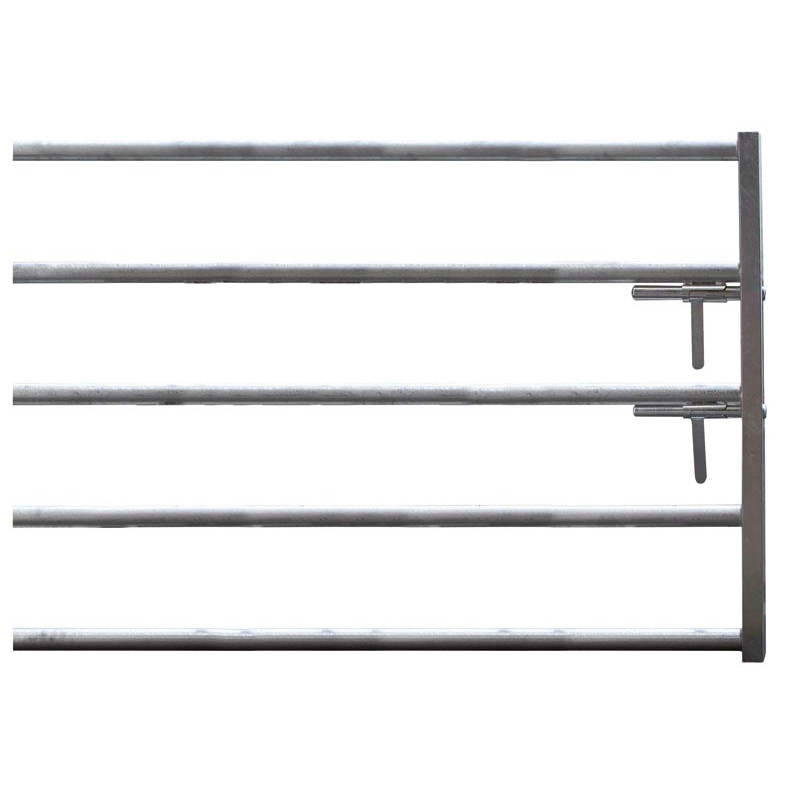

5-rail front end with two stamped locks for stall barrier
Front end fitted with:
- Ø 48.3 mm rails.
- 60 mm square upright.
- sturdy and attractive finish.
- 1.15 m height.
Perfectly slots into rear end to adapt to all types of structure.
- Ø 48.3 mm rails.
- 60 mm square upright.
- sturdy and attractive finish.
- 1.15 m height.
Perfectly slots into rear end to adapt to all types of structure.
Can be adapted to all types of structure. Their design combines strength and modularity.
- Can be extended by one metre.
- Can be raised by turning them over.
- Standard fastening centre distance.

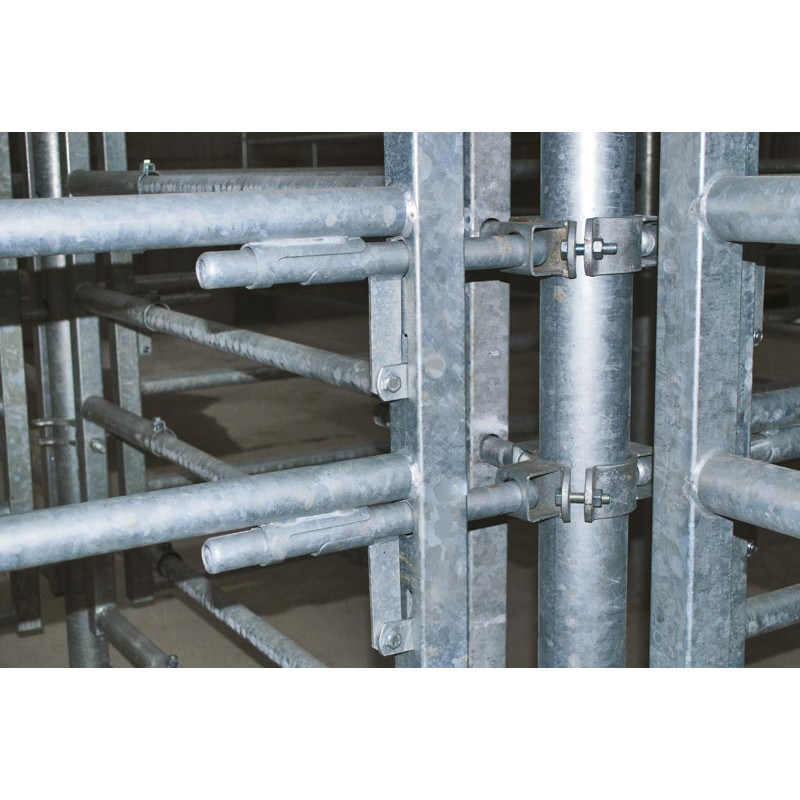

Double latch in the rail axis with anti-backing system.
2 Ø 33.7 mm latchs with a finish on the narrowed ends.
- Material
- Galvanised steel
- Length
- 1,775 mm
- Number of rails
- 5 rails
- Height
- 1.15 m
- Diameter
- 48.3 mm
- Net weight
- 33 kg
- Model
- front end
- Type
- Standard
- Packaging
- No packaging
- Sales unit
- Unit
