Extendable gate 0.695/ 1.13 m
Extendable gate 0.695/ 1.13 m
Extendable gate 0.695/ 1.13 m

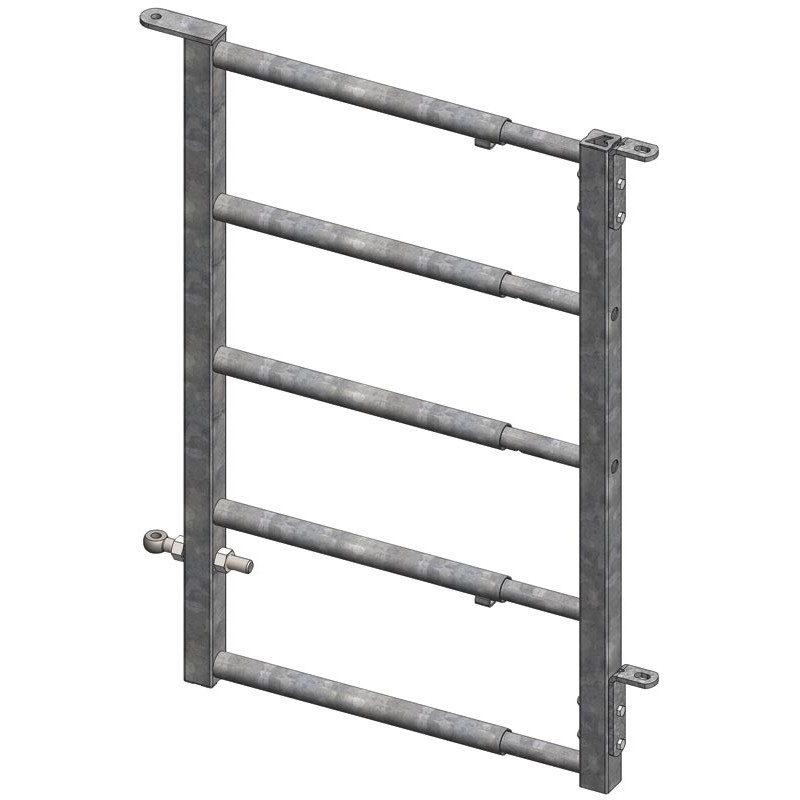

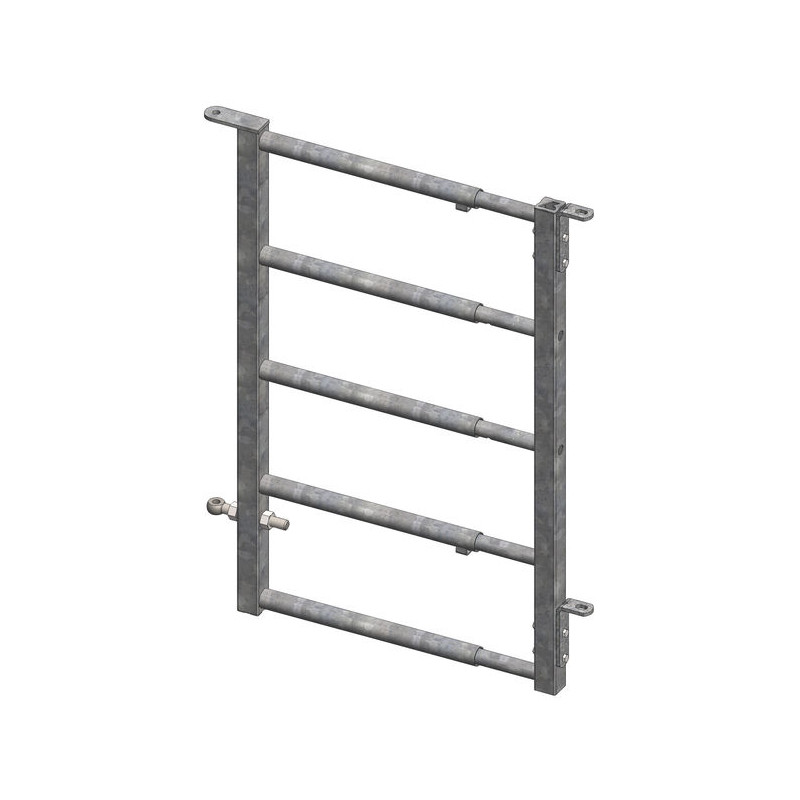

Quick fastening and adjustment thanks to a flat bracket on the top and a threaded eye bolt in a sleeve on the lower part. Factory fitted with an Easylock automatic latch guided in the pin of a rail.

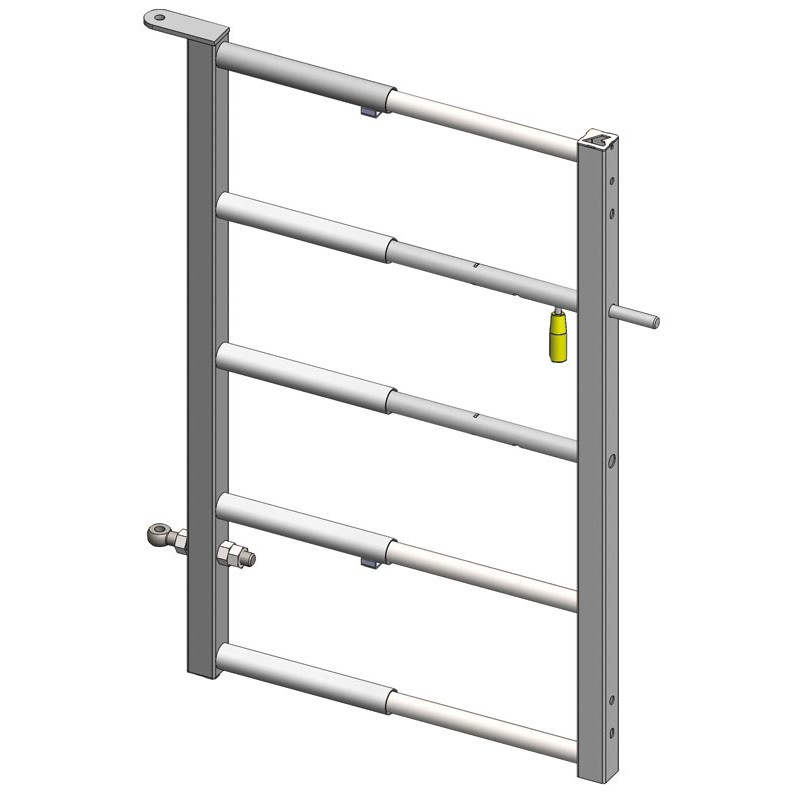

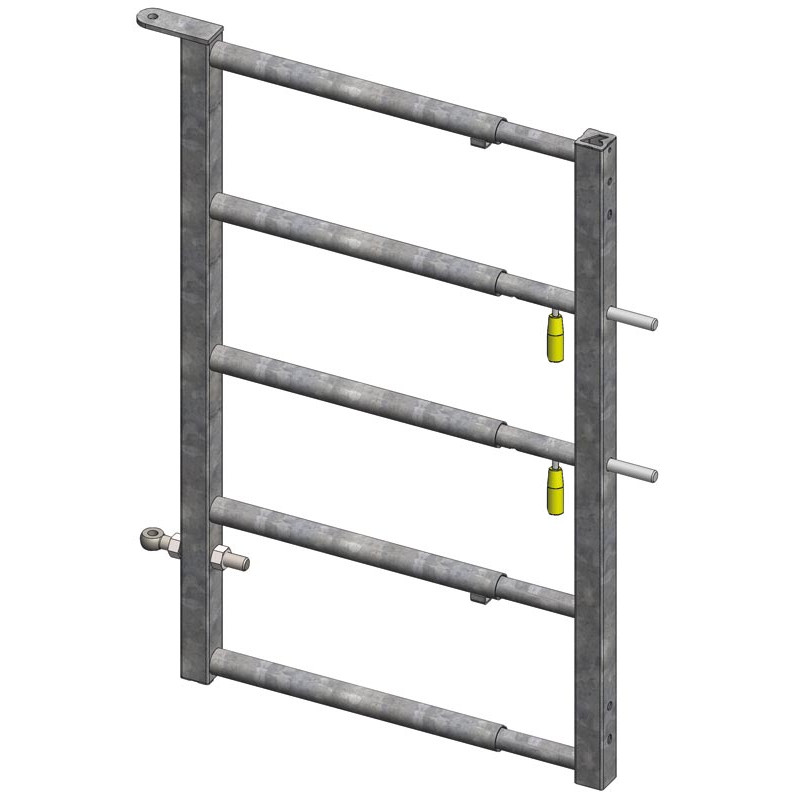

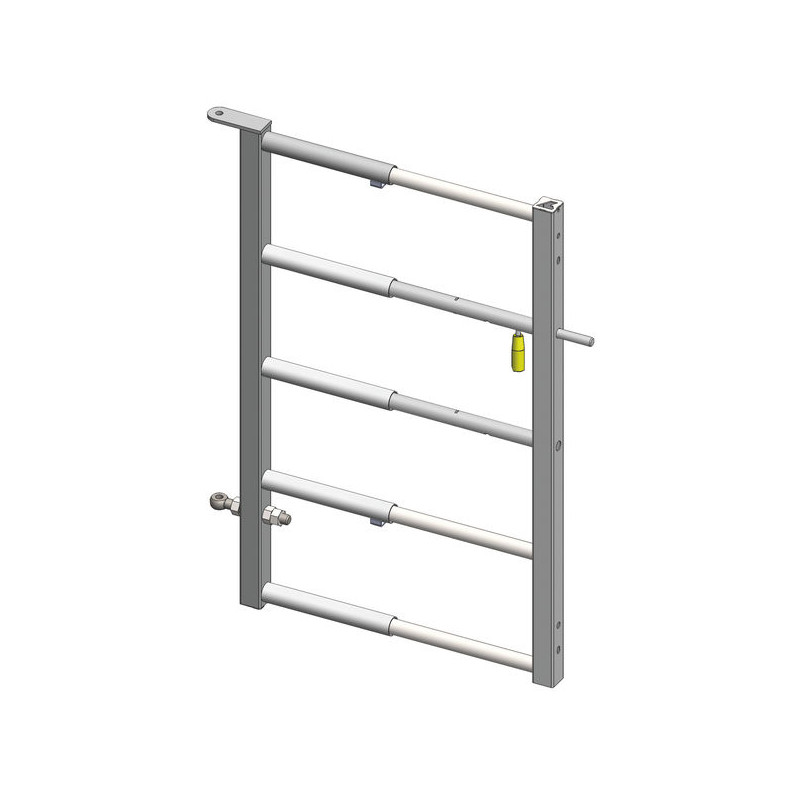

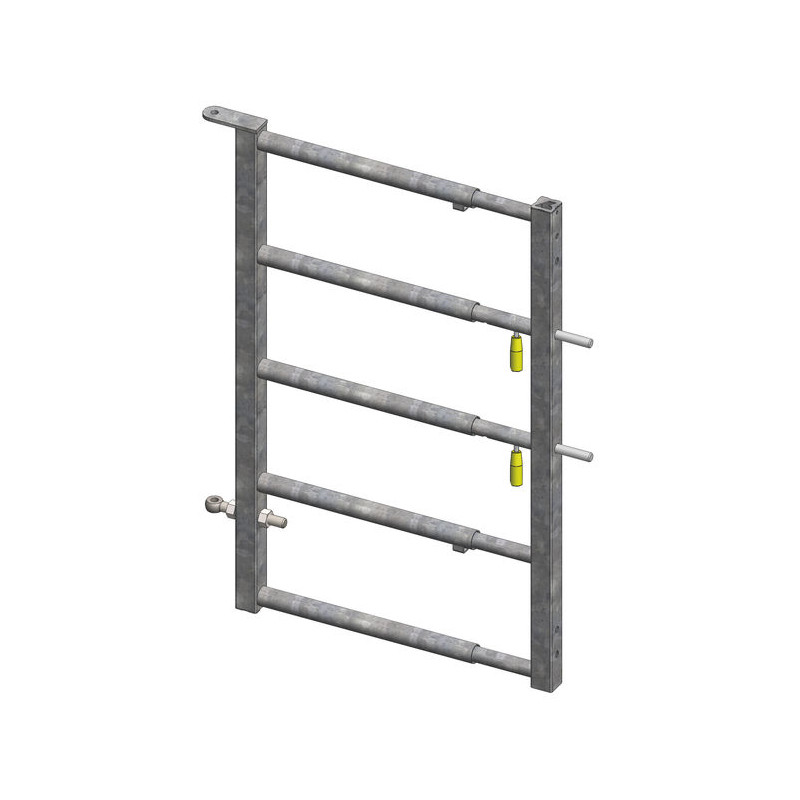

As required, can be fitted with a second automatic latch (A) to mount in the pin of a second rail and/or fastening flat brackets (B) to mount on the front upright to convert it into a panel.



 Rear end:
- 5 Ø 42.4 mm cross rails.
- square 50 mm upright
- 2 fastening flat brackets
Front end:
- 5 Ø 34 mm cross rails.
- square 50 mm upright
- 1 automatic latch in the rail axis.

Material
Galvanised steel
Length
0.69 to 1.13 m
Number of rails
5 rails
Height
1.15 m
Net weight
20.2 kg
Model
Extendable
Packaging
No packaging
Fastening centre distance
94.8 cm
Sales unit
Unit
