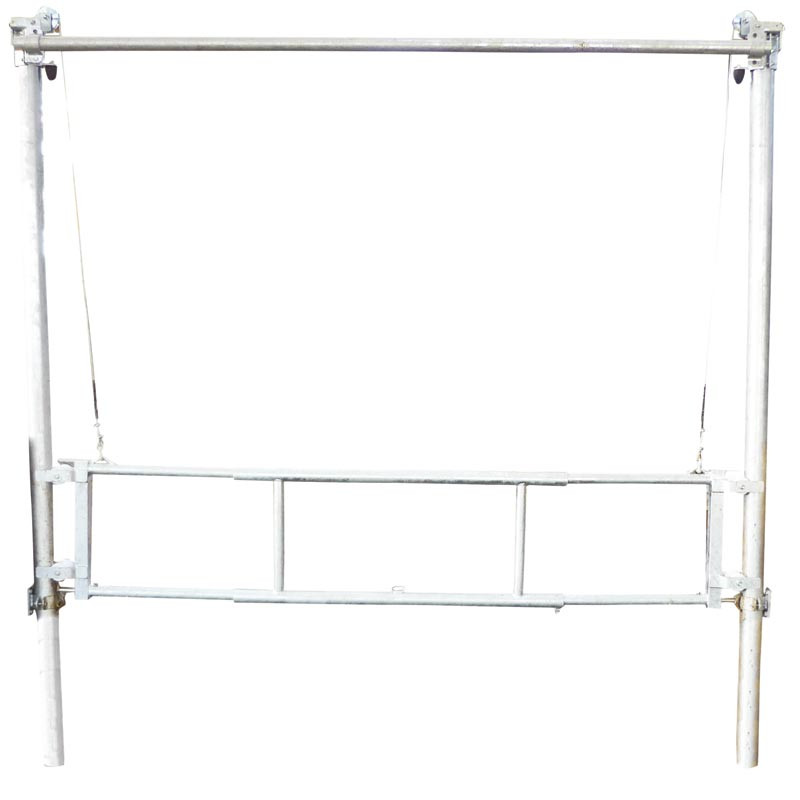

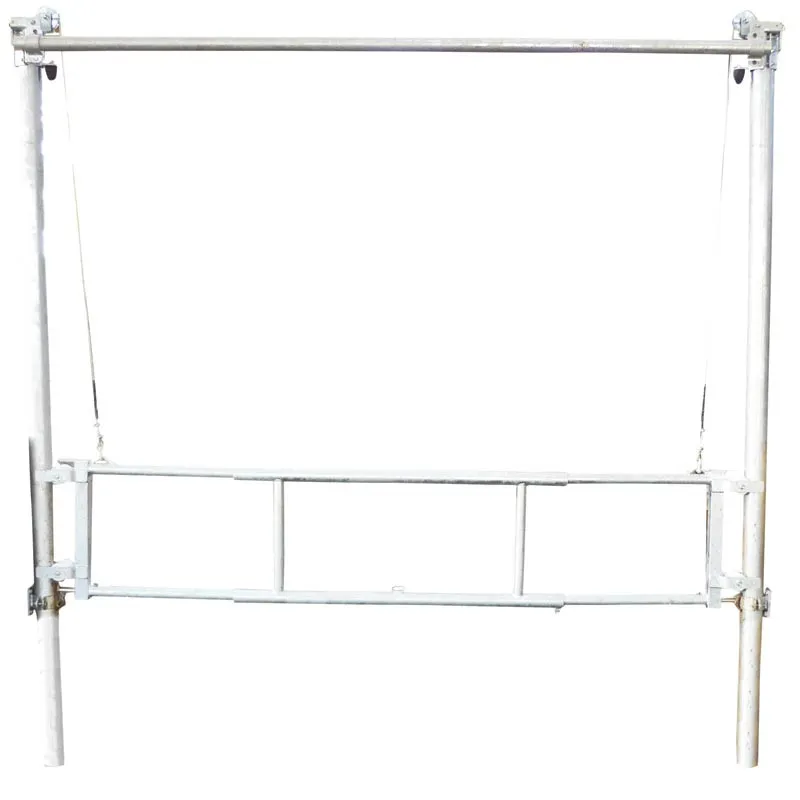

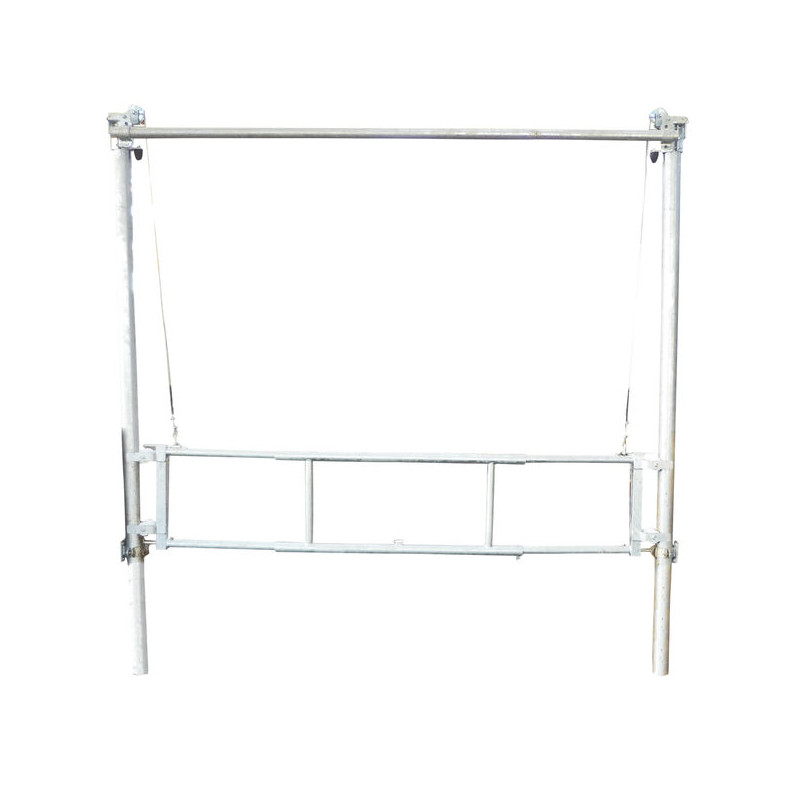

3.40/4.50 m lifting partition barrier for cubicle corridor

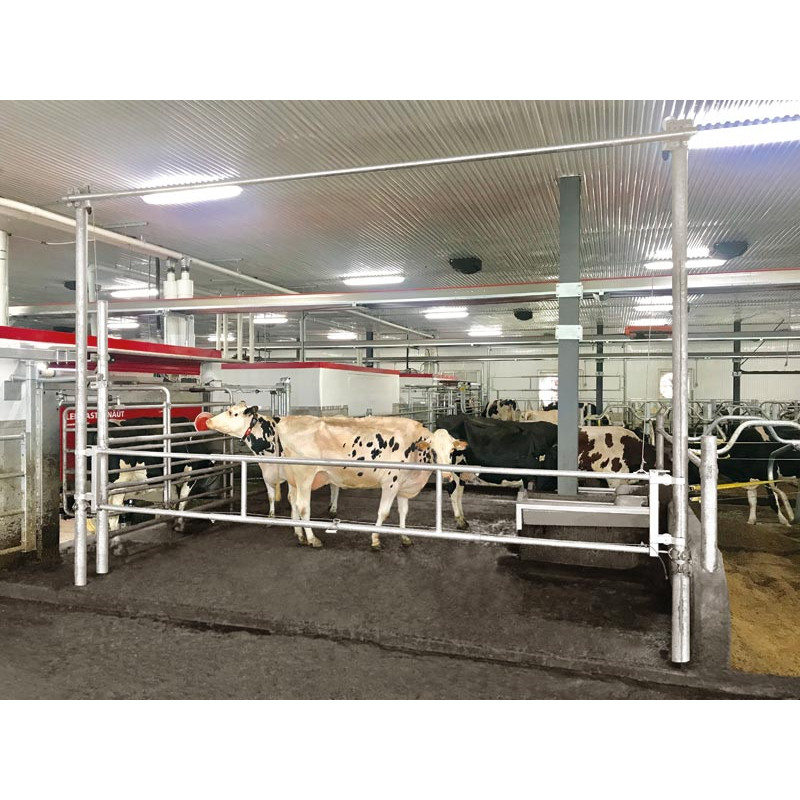

Ideal to close an opening between two cubicle islets.
These lifting partitions are designed to make work easier for farmers. Thanks to their system with counterweight guided in the Ø 102 mm support posts, they are very flexible to use and are effortless to handle.
The partition includes:
- 1 extendable 2-rails panel fitted with four nylon wheels with guiding and two automatic latches,

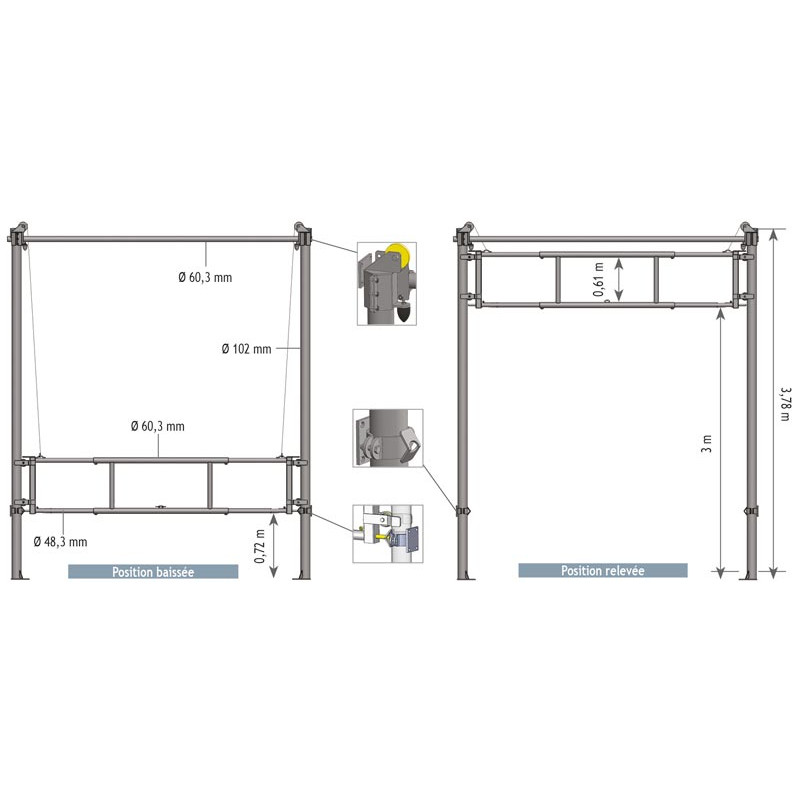

- 2 posts on plate, Ø 102 mm and total height 3.78 m,
- 1 Ø 60.3 mm spacer bar at the top section length adjustable,
- 1 cable to trigger the two automatic latches,
- 2 stainless steel Ø 98 mm pulleys on ball bearings for effortless use,
- 2 pulley upper support brackets, fitted with a wall fastening mounting plate,
- 1 handling rope,
- 2 stainless steel counterweights linked to lifting cables fastened onto the 2-rail barrier, guided in Ø 102 mm posts,
- 2 side brackets with bolt support fitted with a wall fastening mounting plate.
- Material
- Galvanised steel
- Length
- 3.40 / 4.50 m
- Number of rails
- 2
- Diameter
- 60.3 mm
- Net weight
- 190 kg
- Packaging
- No packaging
- Sales unit
- Unit
- Overall width
- min 3.28 / max 4.54 m
