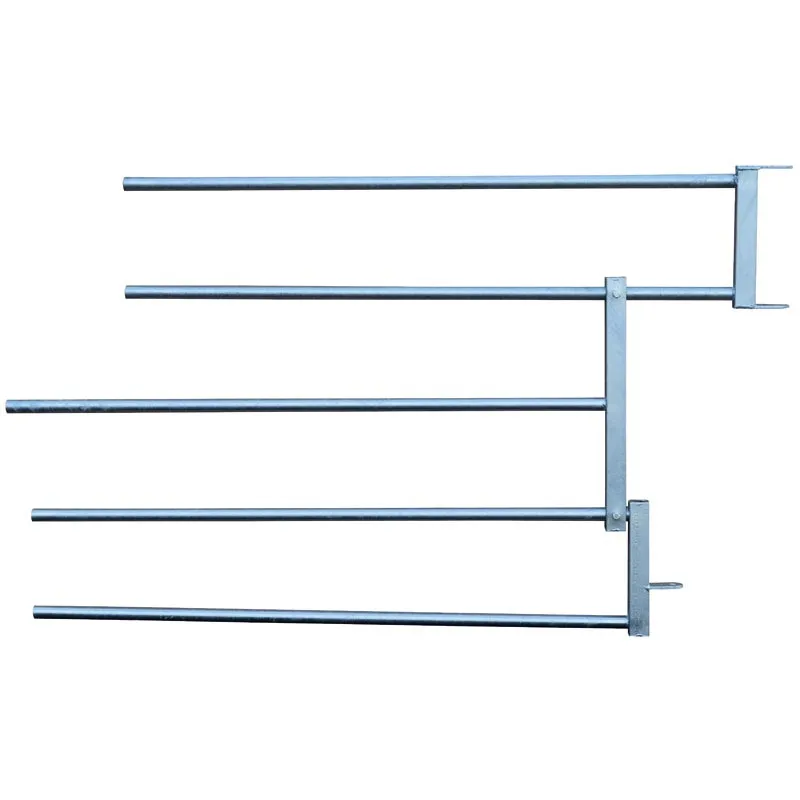

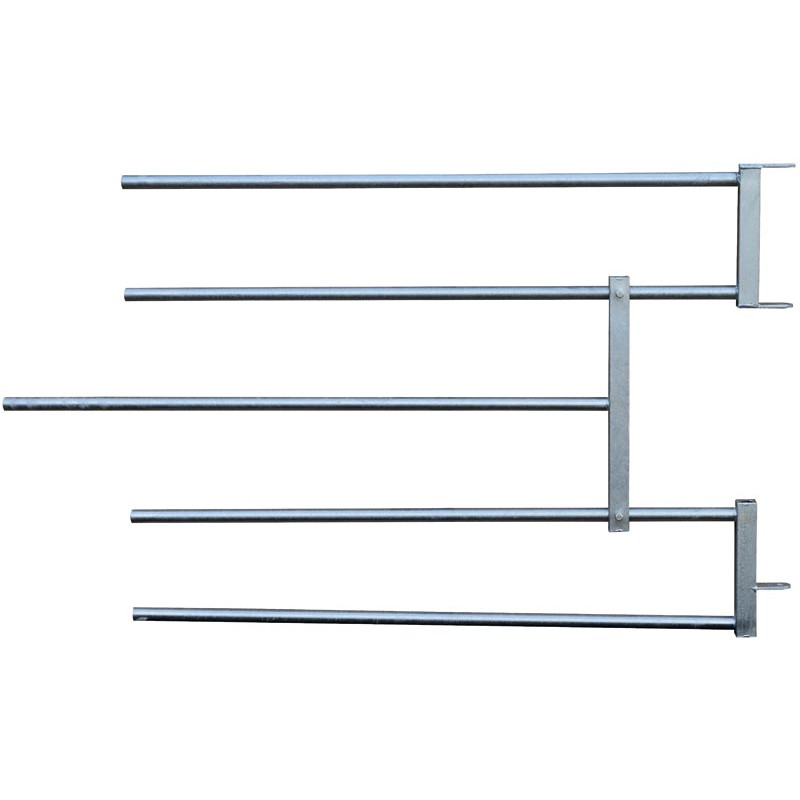

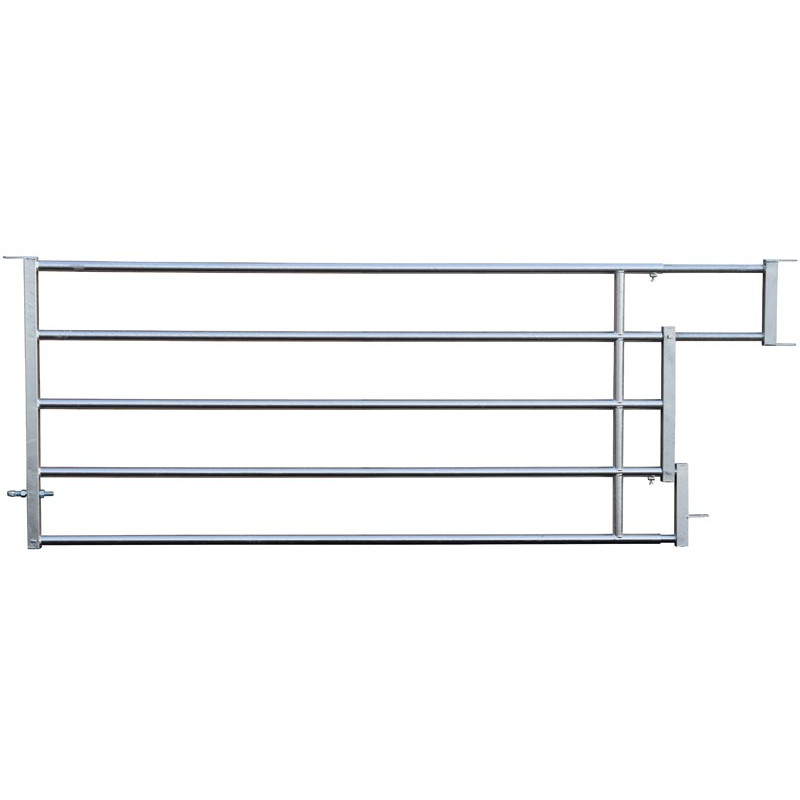

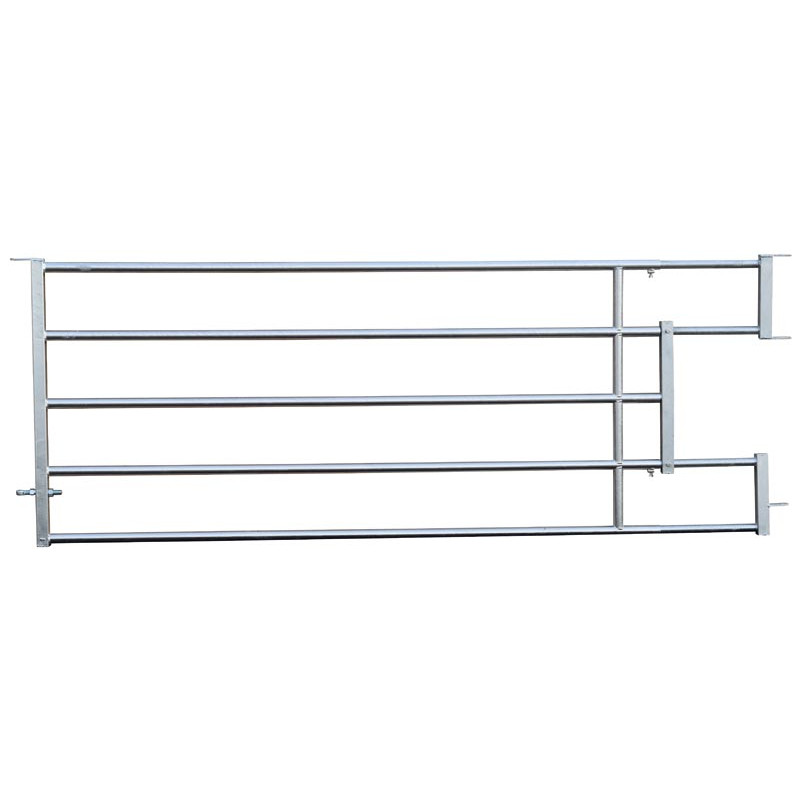

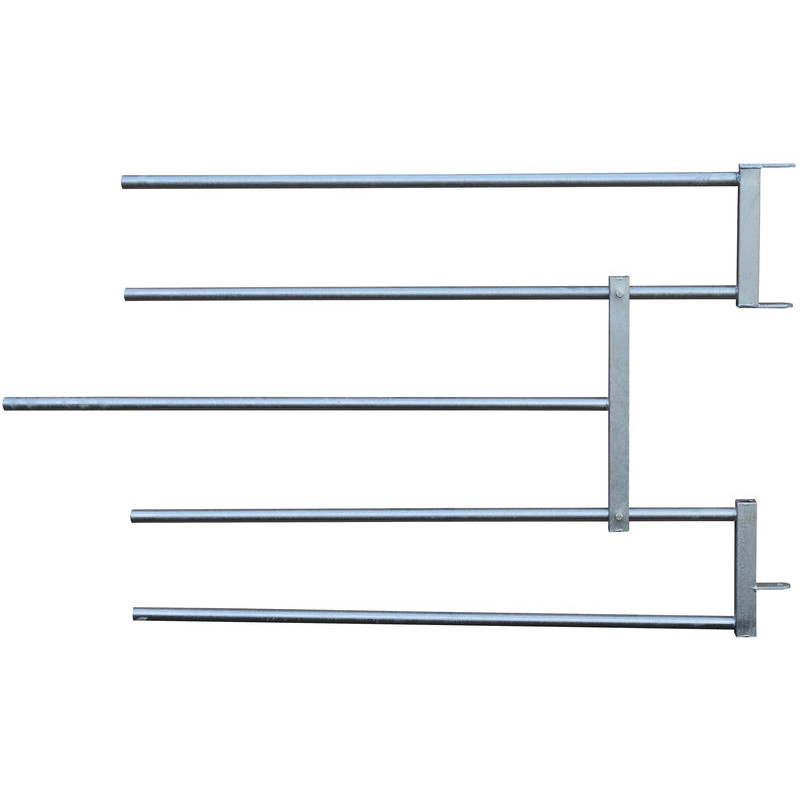

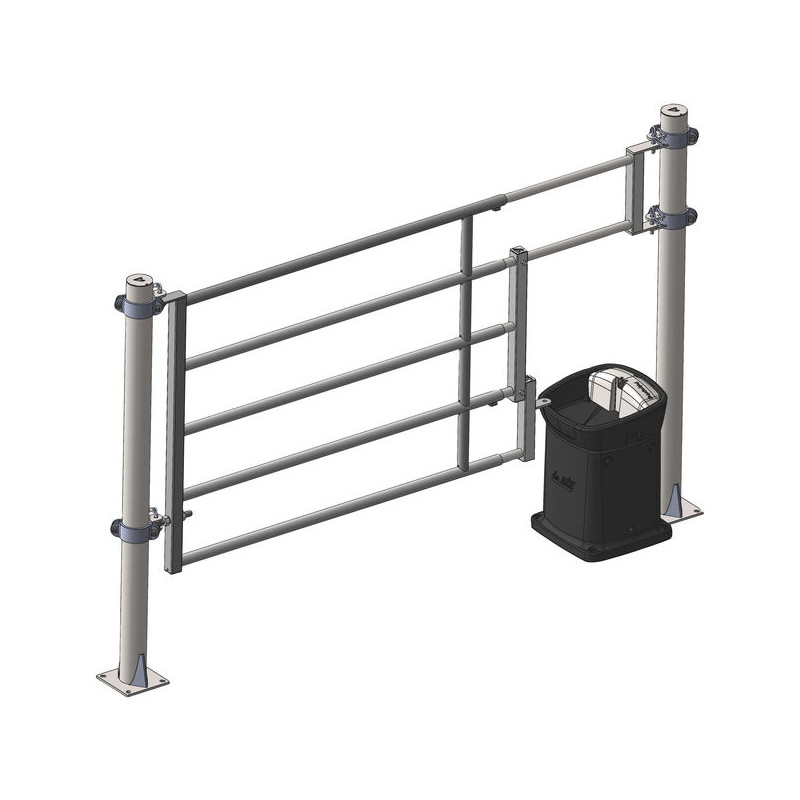

Ø 34 mm pasture front end drinker/column opening
Robust and multi-purpose.
The single latch rail gate can be converted into a double latch version
at any time.
Characteristics:
- Hot-dip galvanised after assembly,
- 50 x 50 mm thickness 2 mm, front and rear uprights,
Rear section:
- 5 diam. 42.4 mm cross rails with locks on two rails through cage bolts and nuts,
- Ø 42.4 mm spacers with round notches,
- Rapid fastening and adjustment thanks to a flat bracket on the top and a threaded eye bolt in a sleeve on the lower part.
Front section:
- 5 diam. 34 mm cross rails,
Available in various versions:
- panel with two fastening flat brackets to screw to the 94.8 cm centre distance,
- 1 Ø 20 mm "Easylock" automatic lock, guided in a rail,
- 2 Ø 20 mm "Easylock" locks, guided in two rails,
- drinker/column opening.
- drinker/column opening.
Fastening flat bracket stamped on the top section.
Locks on two rails with a cage bolt and nut.
Assembly of Ø 42 mm spacers with round notches.
Top section of our front ends closed by a metal mounting plate.
Front end designed to leave an opening for a drinker or column.

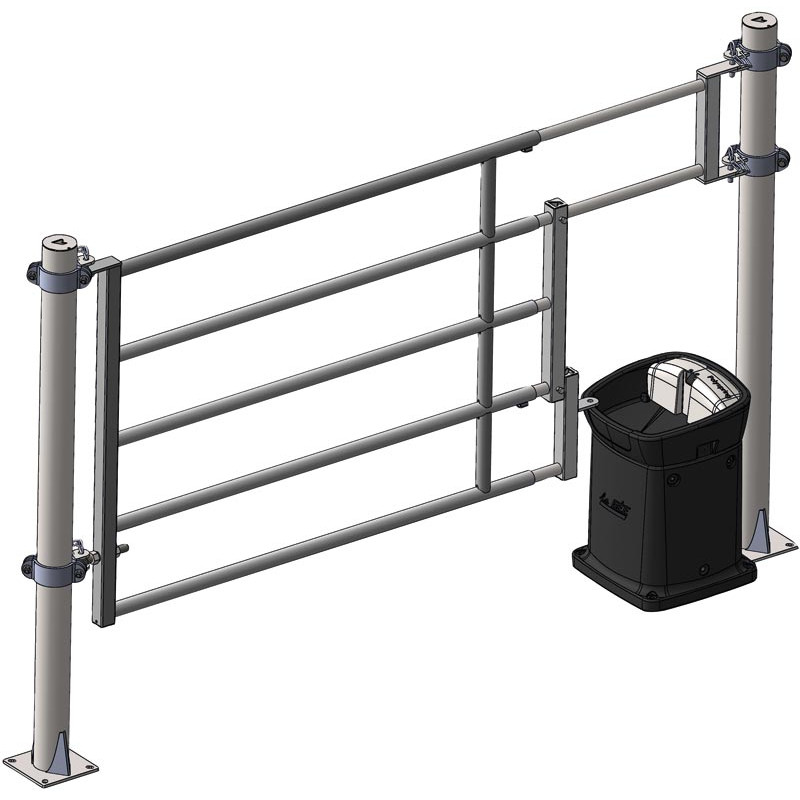

Column opening fastening centre distance: 340 mm.

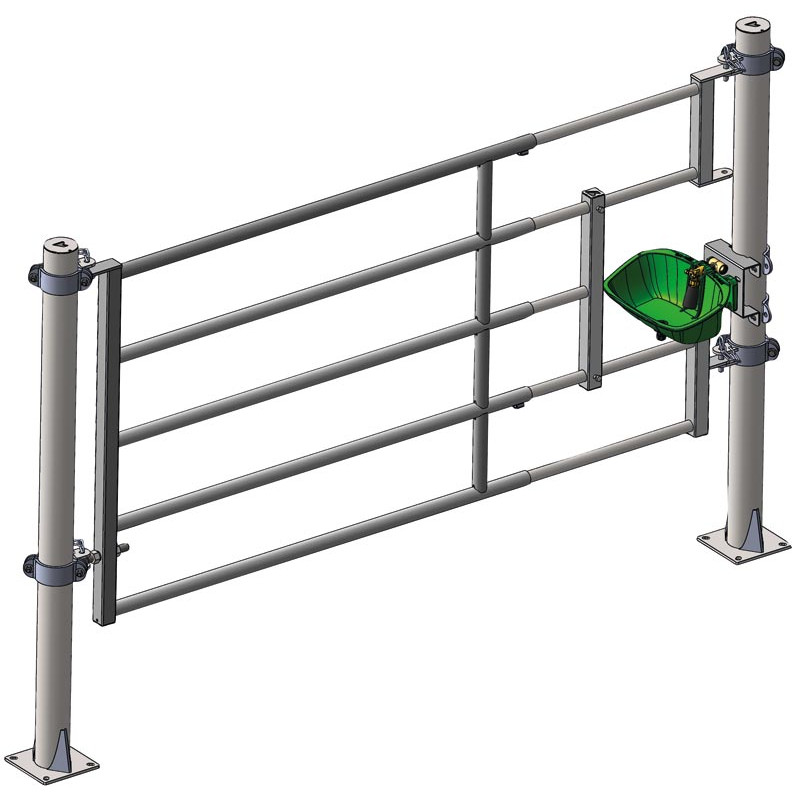

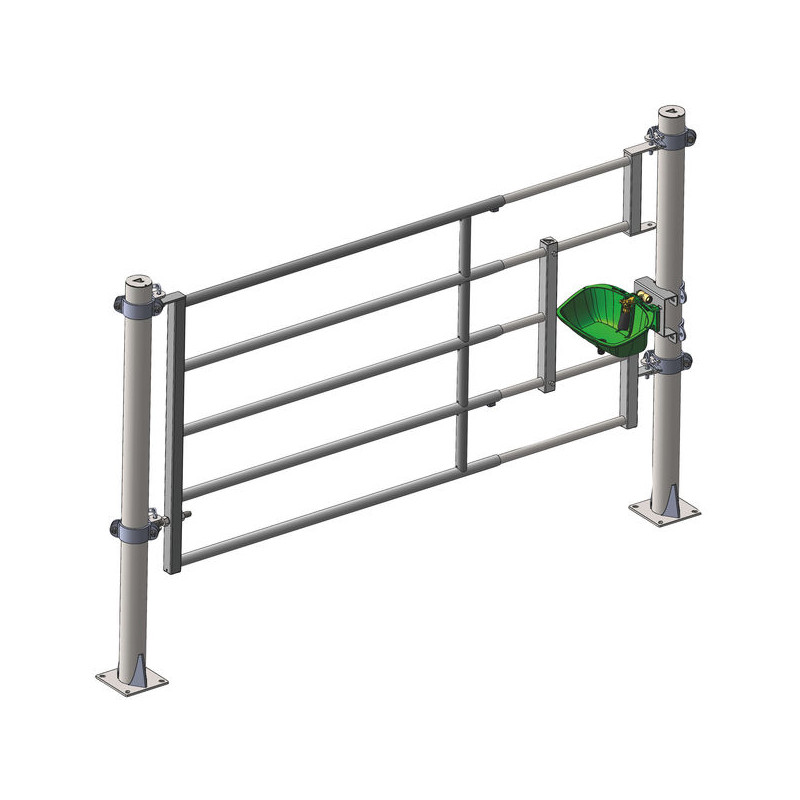

Drinker opening fastening centre distance: 948 mm.
Only compatible with Ø 42.4 mm pasture rear gates.
- Material
- Galvanised steel
- Length
- 1.61 m
- Number of rails
- 5 rails
- Height
- 1.15 m
- Diameter
- 34 mm
- Net weight
- 21 kg
- Model
- pasture front end
- Packaging
- Pallet
- Sales unit
- Unit
