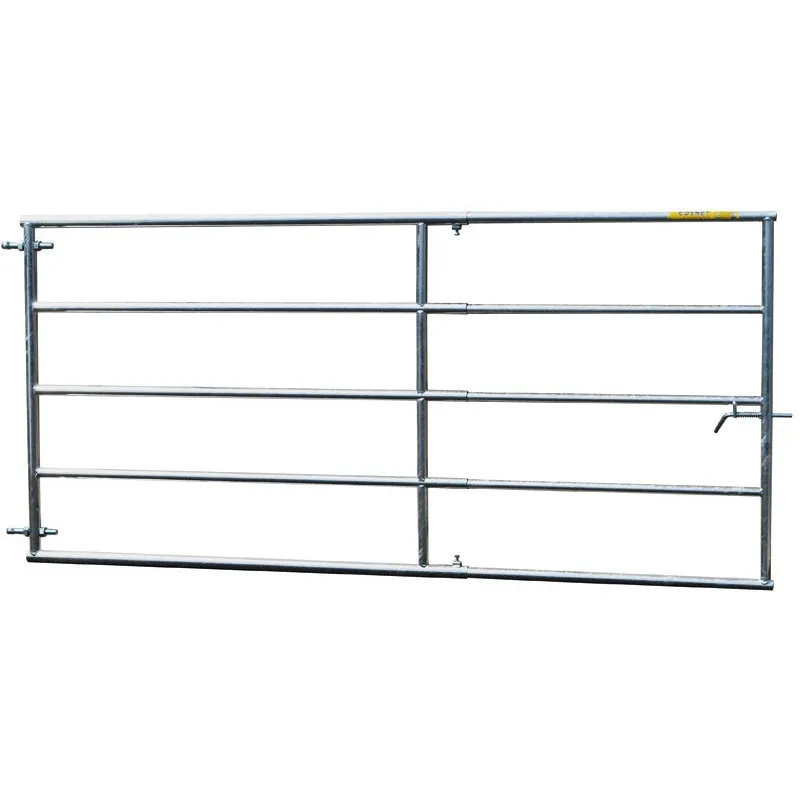

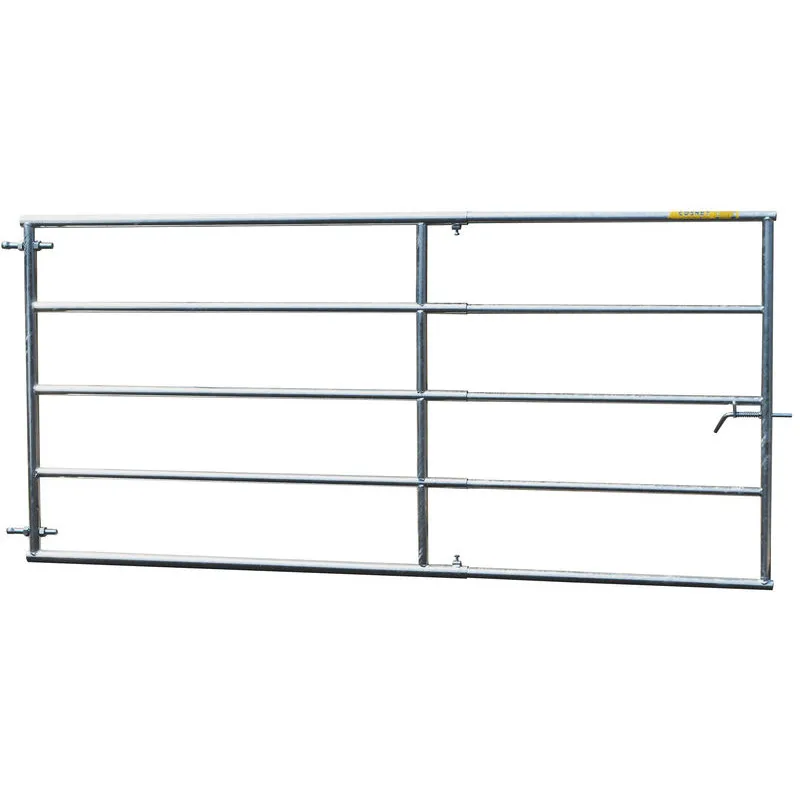

3/4 m Extendable field gate

Feature-Benefits : Excellent value for money.
Extendable.
Adapts to your needs.
> More details

Characteristics:
- Hot galvanised after manufacture,
- 2 Ø 22 mm threaded eye bolts with two bolts at the top and bottom,
- 1 Ø 14 mm spring lock,
- 2 rails locked by a bolt in a retaining nut,
- assembly of Ø 42 mm spacers with round notches.

Characteristics
Rear section:
- 2 Ø 42.4 mm top and bottom rails,
- 3 Ø 35 mm intermediary rails,
- Locks on two rails with a cage bolt and nut.
- 1 Ø 42.4 mm upright,
- Ø 35 mm spacers with round notches.
- 2 Ø 22 mm threaded eye bolts with two bolts at the top and bottom.
Front section:
- 2 Ø 35 mm top and bottom rails,
- 3 Ø 27 mm inner rails,
- 1 Ø 35 mm upright fitted with a Ø 14 mm spring lock.



Delivered assembled.
Material
Galvanised steel
Length
3 to 4 m
Number of rails
5 rails
Diameter
42.4/35 mm
Number of locks
1
Number of spacers
1
Net weight
38 kg
Model
field gate
Type
Extendable
Packaging
Pallet
Shape
tube
Sales unit
Unit
