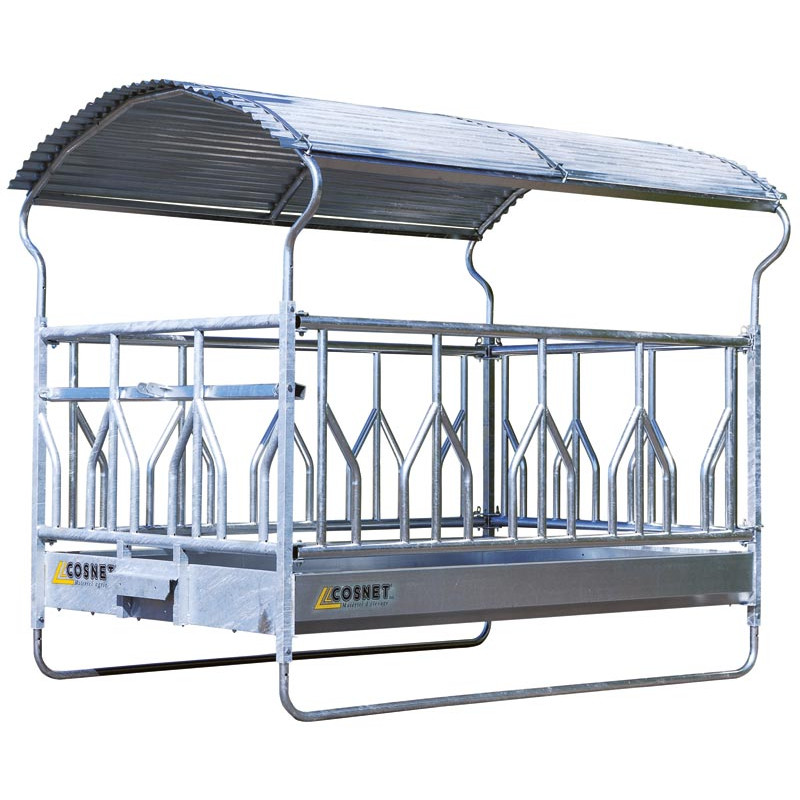

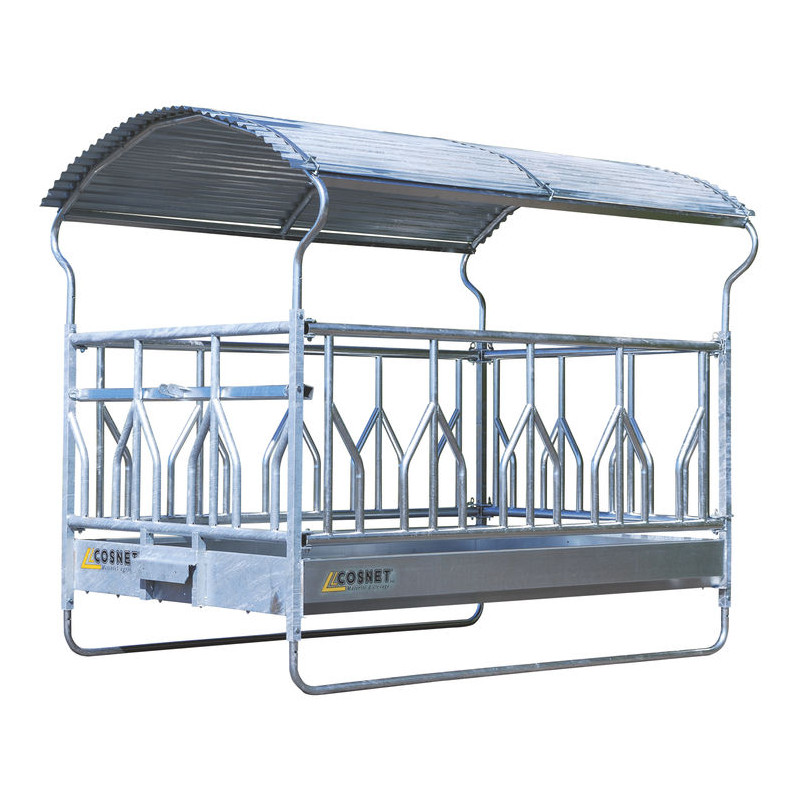

RDTLS II double feed panel hay rack

Designed for horned or hornless herds.

These new-generation double hay racks are designed to open on three sides:
the two wide sides and the side opposite the hitch. With a total length of 3 m,
these double hay racks are factory fitted with two Ø 60.3 mm bottom reinforcement bars (thickness 3.2 mm).
Their structure is hot-dip galvanised after assembly. Their design, incorporating four main 3 mm thick uprights, is very robust.
They are factory fitted with:

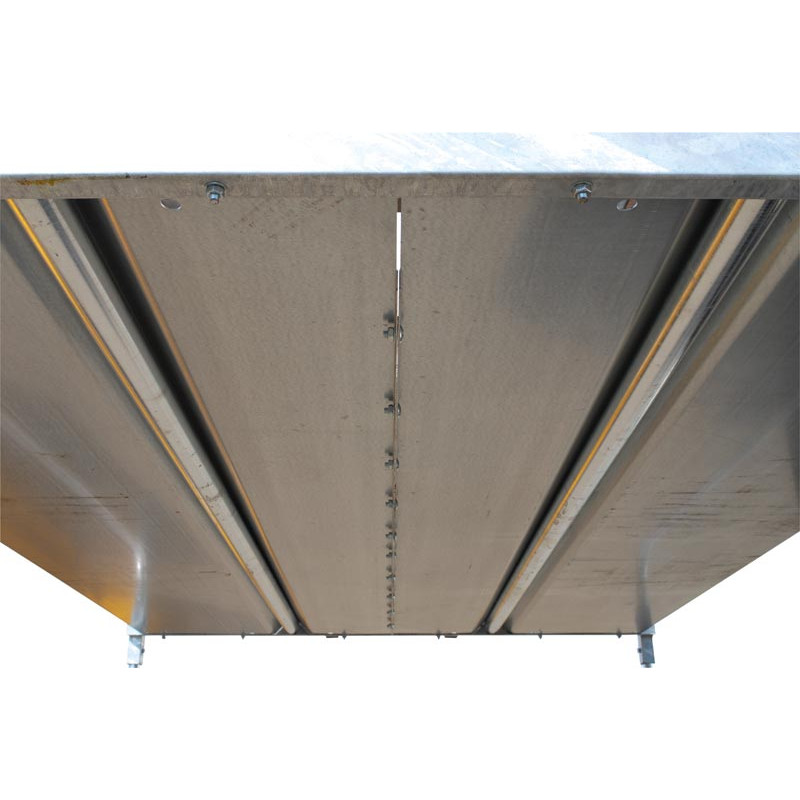

- bottom sheets reinforced by two cones to centre round bales. Ends drilled with several holes to evacuate moisture.
- ‘optimum’ roof, with a wide curve to improve the installation of large hay bales and a larger covered surface to better protect them from the rain,
- the height of the roof and pads can be adjusted by through bolts,
- monoblock hitch panel to reduce assembly time and contribute to the structure’s strength,
- Folding tow bar,
- 2 Ø 60.3 mm bottom reinforcement tubes (thickness 3.2 mm),
- Side reinforcement bars and roof protection kit.

Double pasture hay racks are suited to the distribution of hay in large square or round bales in fields.

The double feed panel hay rack is fitted with:
- 4 reinforced feed panels assembled with notches on the Ø 60.3 mm side rails, connected to an upper bar,
- 3.10 m roofing.
