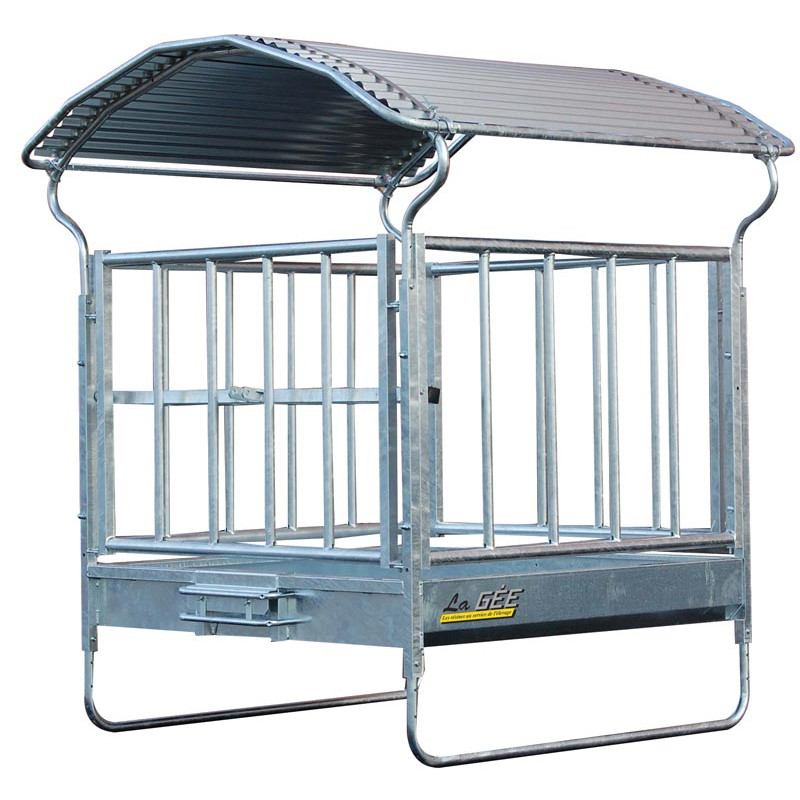

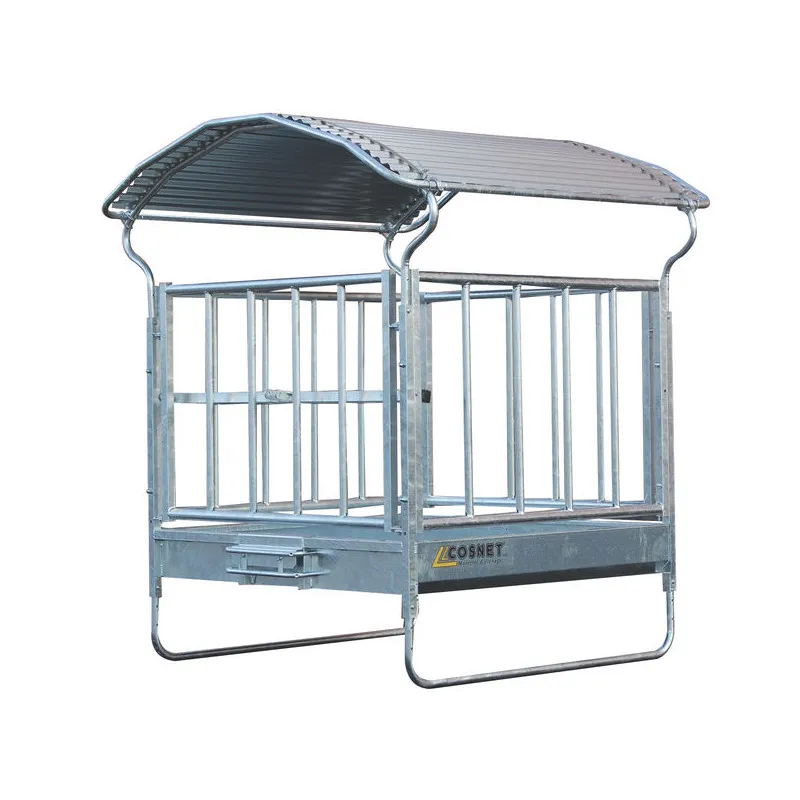

The ‘equine’ RTE panel hay rack allows the distribution of hay in round bales and small square bales for ten horses.


These new-generation single hay racks are designed to open on three sides: two sides and the side opposite the hitch (excluding RTT and RTE with a gate opposite the hitch).
Their structure is hot-dip galvanised after assembly.
They are factory fitted with:
- bottom sheets reinforced by two cones to center round bales, with the ends drilled with several holes to evacuate moisture,
- ‘optimum’ roof, with a wide curve to improve the installation of large hay bales and a larger covered surface to better protect them from the rain,
- the height of the roof and pads can be adjusted by through bolts,
- folding tow bar (except RTT, U bar using the five rails),
- monoblock hitch panel to reduce assembly time and contribute to the structure’s strength.

These hay racks are perfect for the distribution of round fodder bales in pastures.

The RTE hay rack is fitted with:
- 4 reinforced panels assembled with notches in a Ø 60.3 mm side rail frame with high straight feed ports.
- 2.25 m roofing.



Delivered in kit.
Material
Galvanised steel
Width
2 m
Length
2 m
Net weight
350 kg
Model
RTE
Number of feed spaces
20
Type
Horse neck panels
Packaging
No packaging
Sales unit
Unit
