Fastening mounting plate to accommodate Ø 60.3 mm cubicle dividers

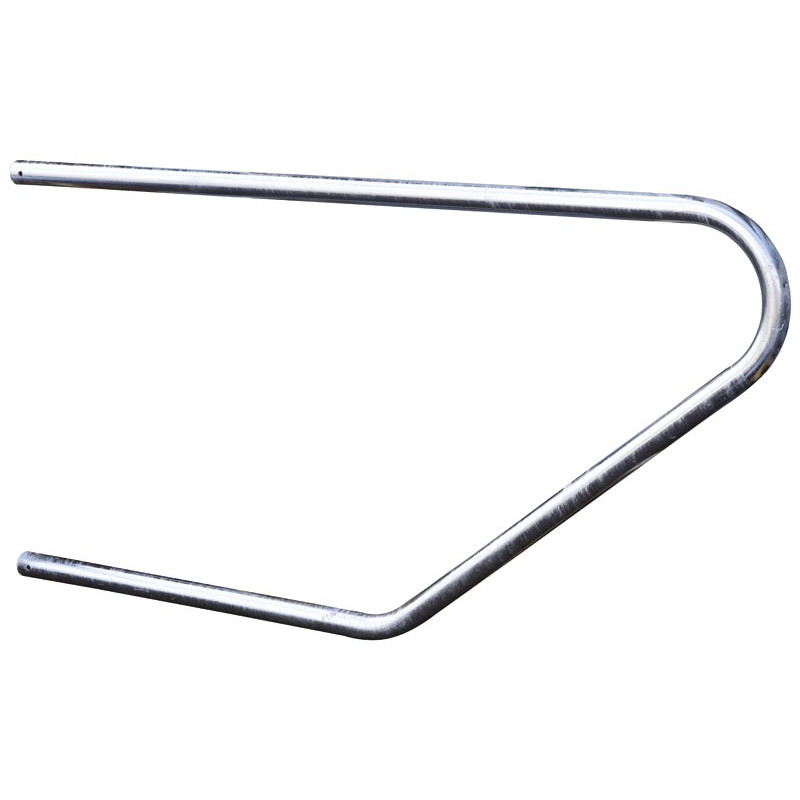

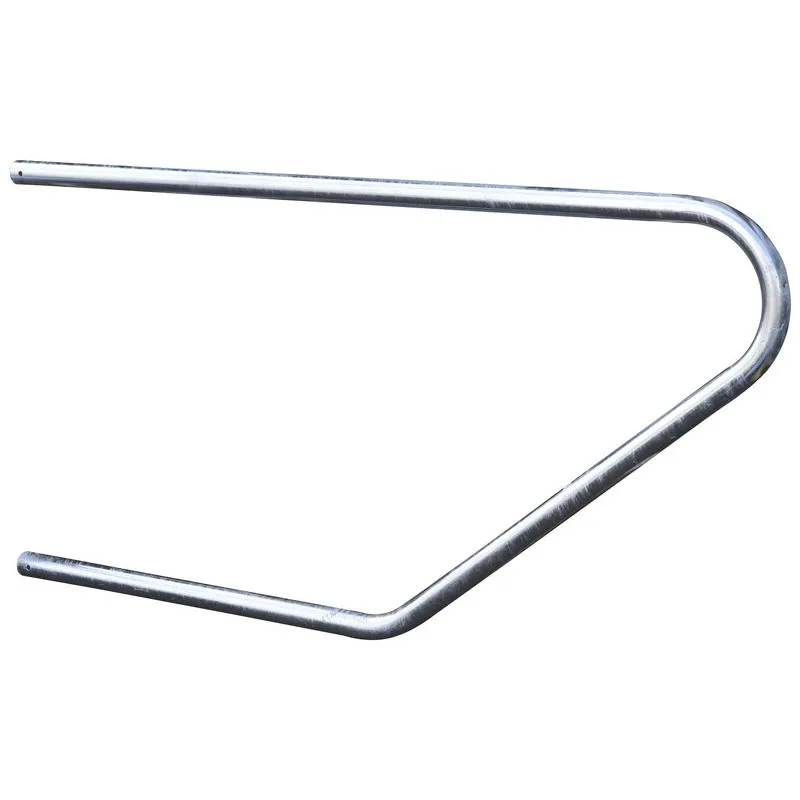

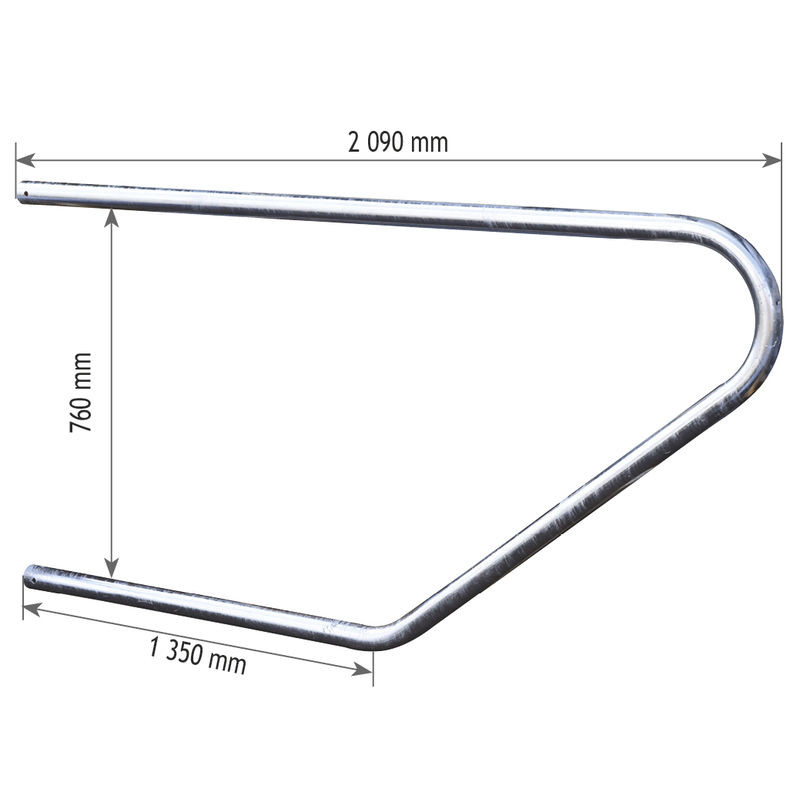

CONTINENTAL cubicle
Feature-Benefits :
> More details
Quick and easy mounting.
Good lateral contention.
Height and width adjustable.

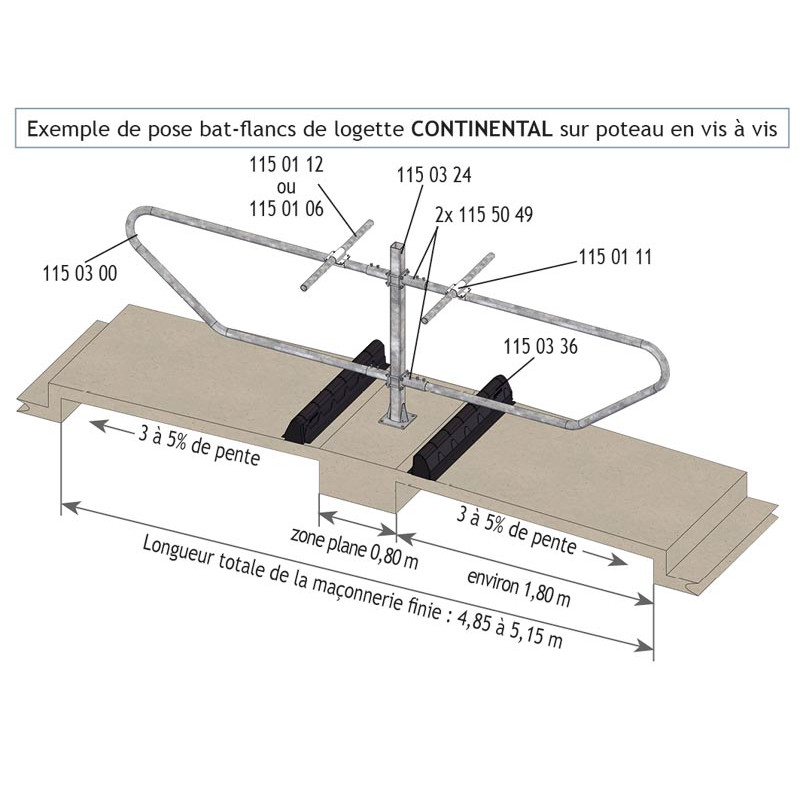

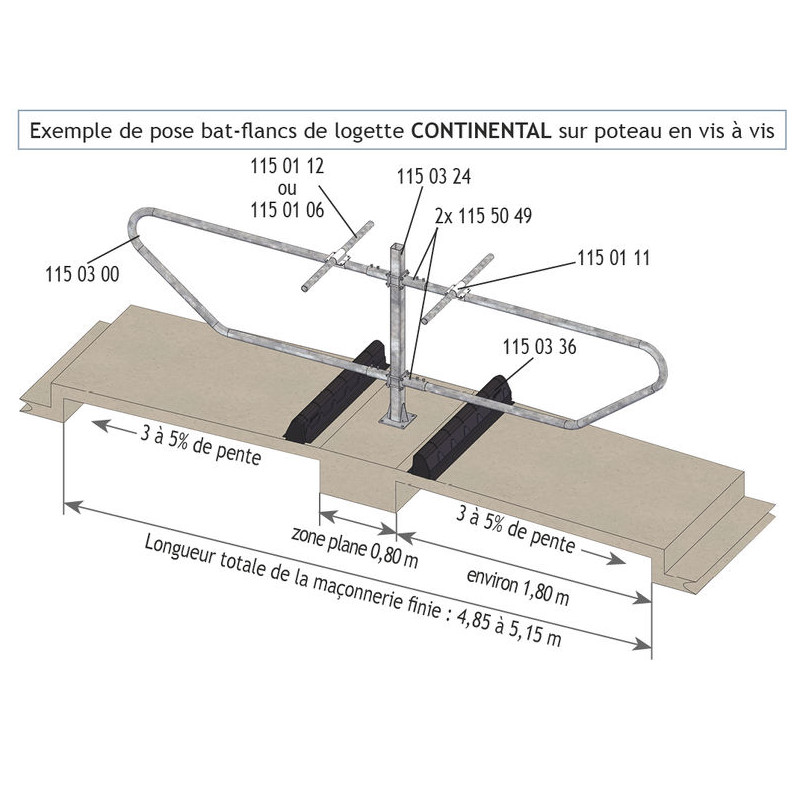

Adjustable suspended cubicle dividers can be mounted in single or double rows either directly
on a post or on square 60 mm beams.
In the latter case, transversal adjustment is possible at any time.

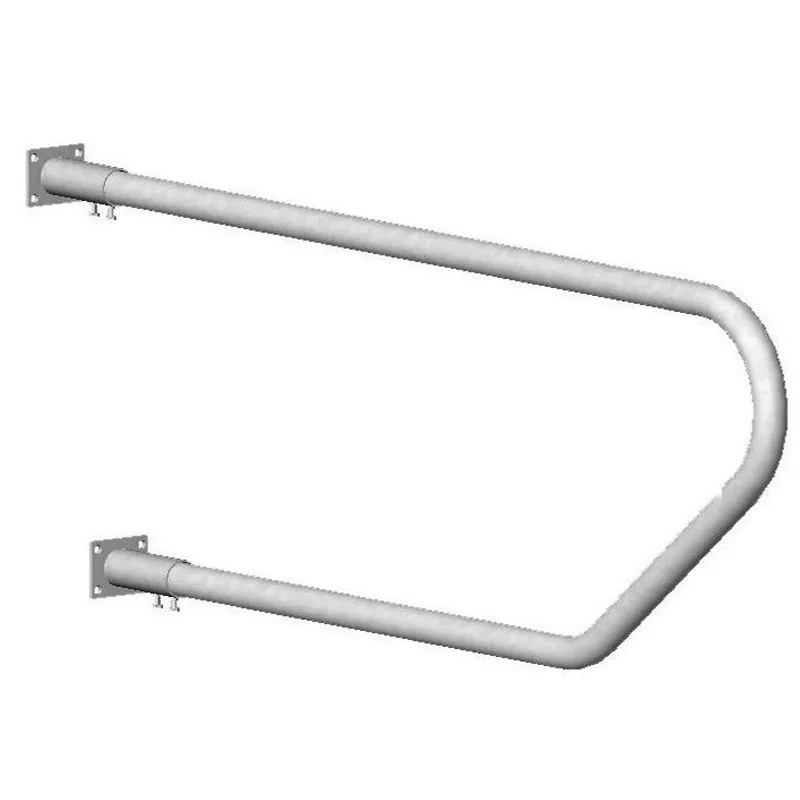

They are delivered with a pair of mounting plate ends fitted with a screw lock.
Their fastening is compatible for mounting on a square 80 mm post or on horizontal square 60 mm beams.
- Material
- Galvanised steel

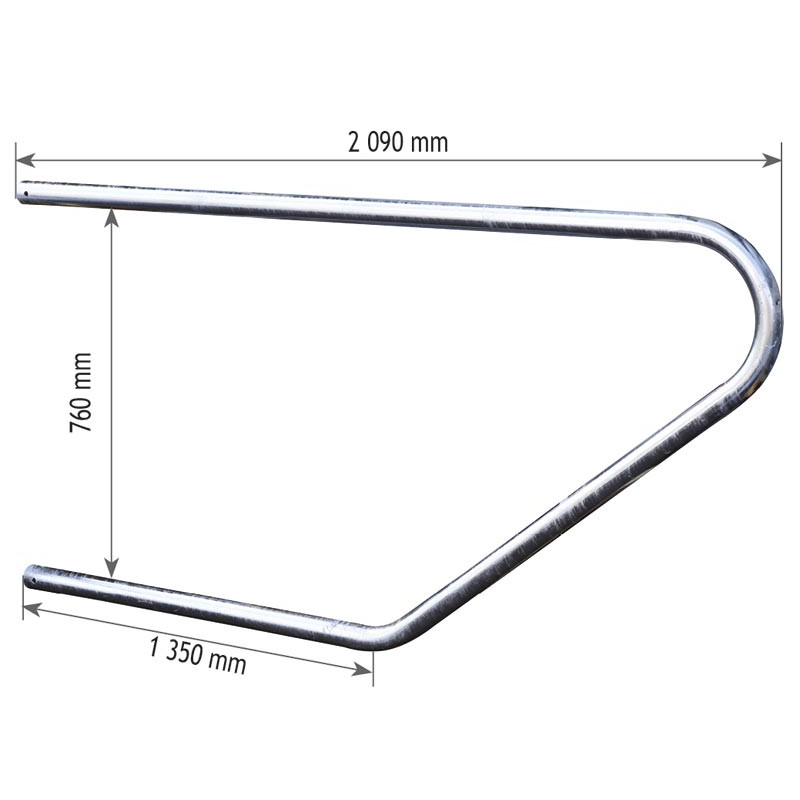

- Length
- 2,090 mm
- Height
- 760 mm

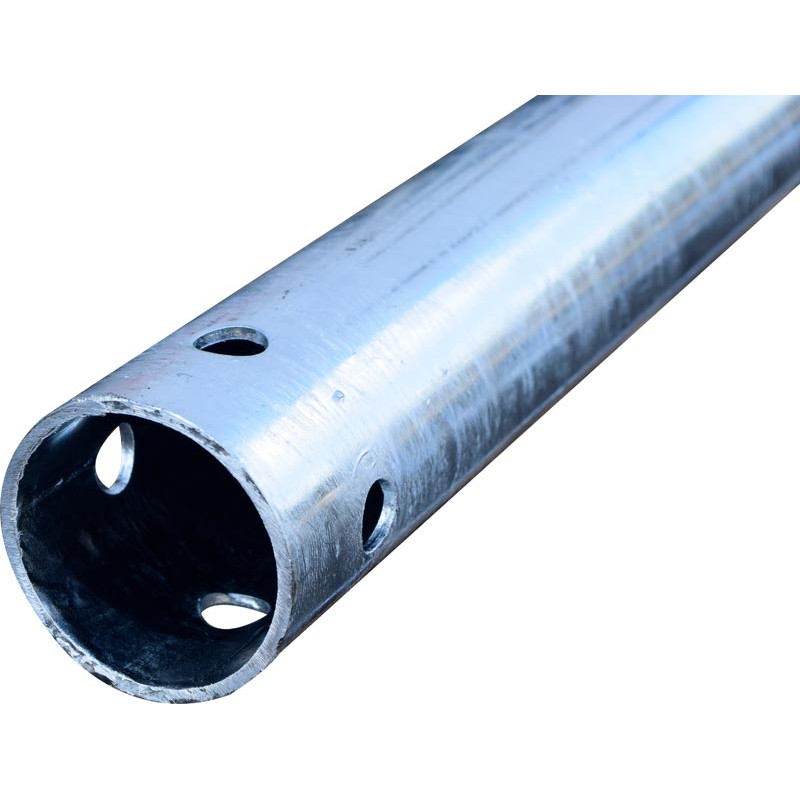

- Diameter
- 60.3 mm
- Net weight
- 24 kg
- Model
- adult cow
- Packaging
- No packaging
- Thickness
- 2.9 mm
- Intermediate length
- 1,350 mm
- Sales unit
- Unit
- Cubicle
- Continental
- Range
- Adjustable suspended
