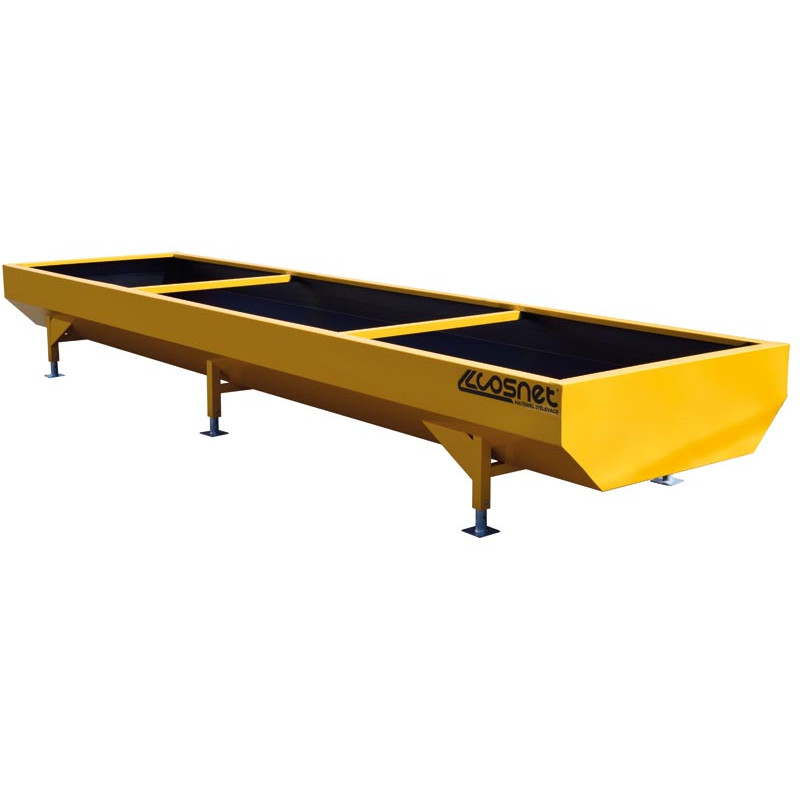

Feature-Benefits : Feed trough, interior bituminous coating.
High-quality coating.

New : Polyurethane outter paint.

> More details
Available in the following widths: 1 m, 1.20 m, and 1.50 m.
It offers farmers the possibility of removing silage with a front loader.


- Manufactured from 2 mm sheet steel bent in a single length for greater rigidity,
- Angles are notched allowing the ends to be superimposed with a weld bead for more solidity,
- Anti-rust protection on the entire trough,
- Polyurethane paint applied on exterior pan,
- Bituminous coating applied on interior pan,
- Very deep trough,
Reinforced painted feed troughs are fitted with:

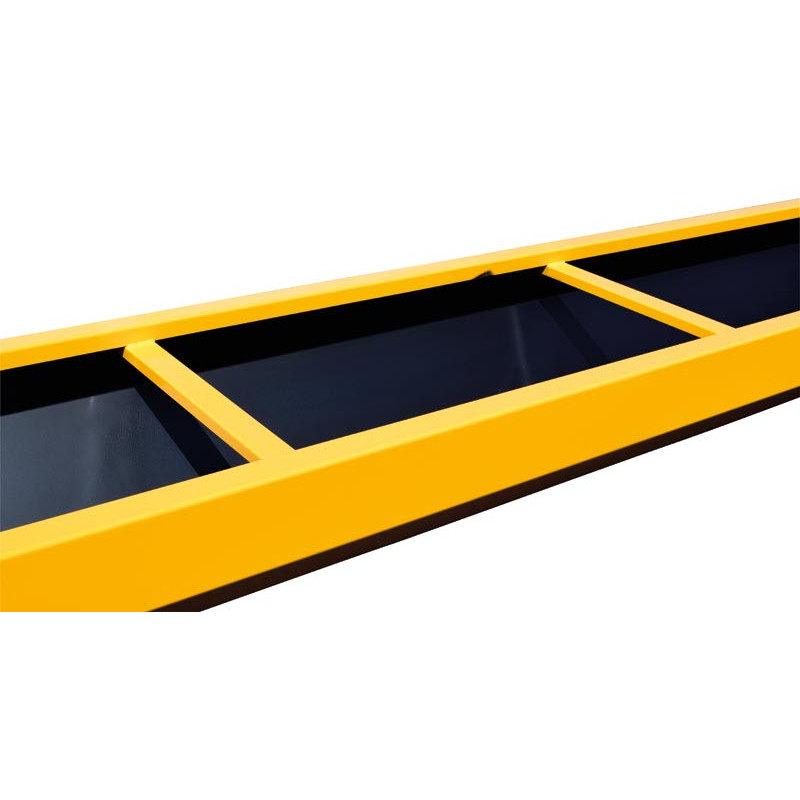

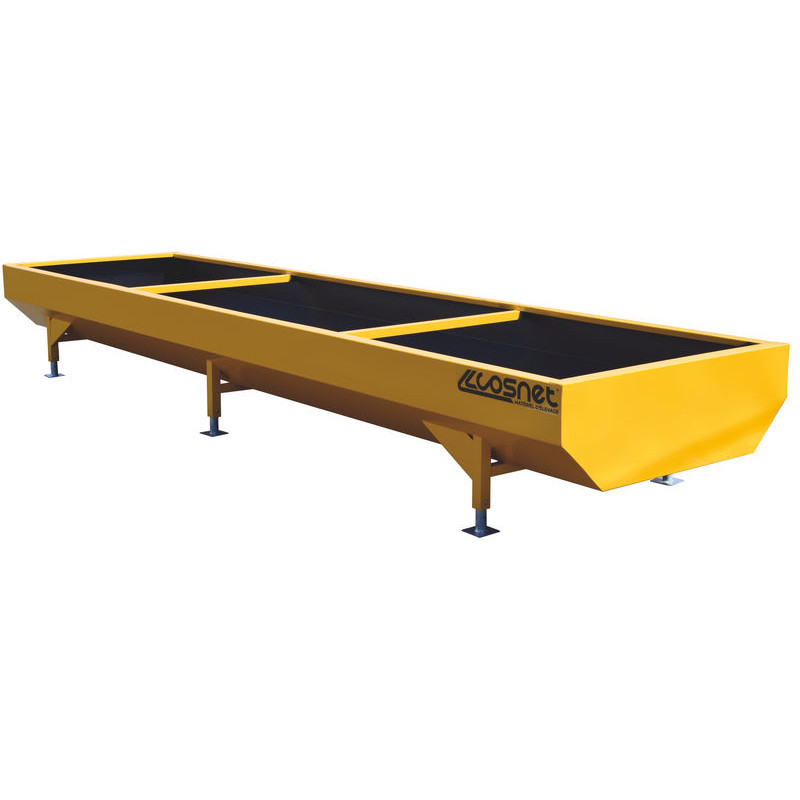

- 2 reinforcing cross bars inside the feed trough,
- 4 welded feed linked by cross bars under the feed trough pan up to 5 m and 6 feet for 6 m,
- Anti-spillage rim’s width of :
• 75 mm for any troughs width from 0.80 to 1.50 m
• 55 mm for troughs width 0.60 m

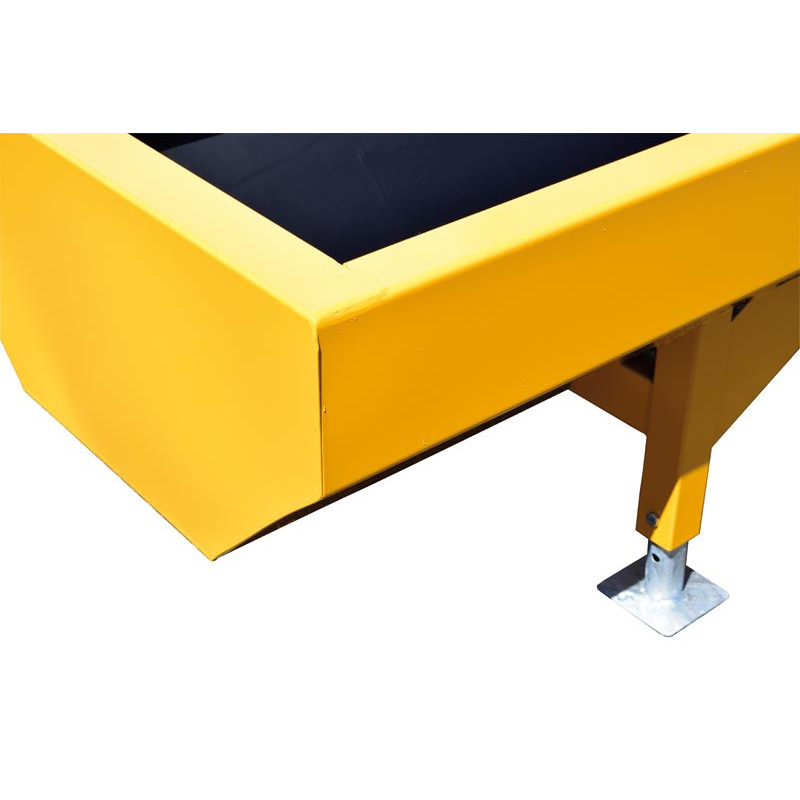

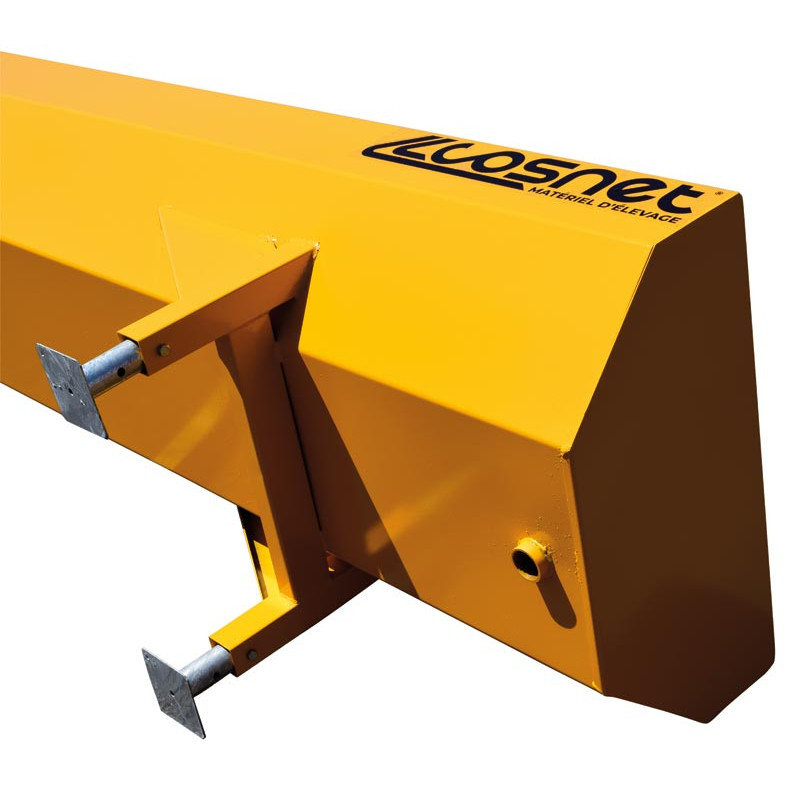

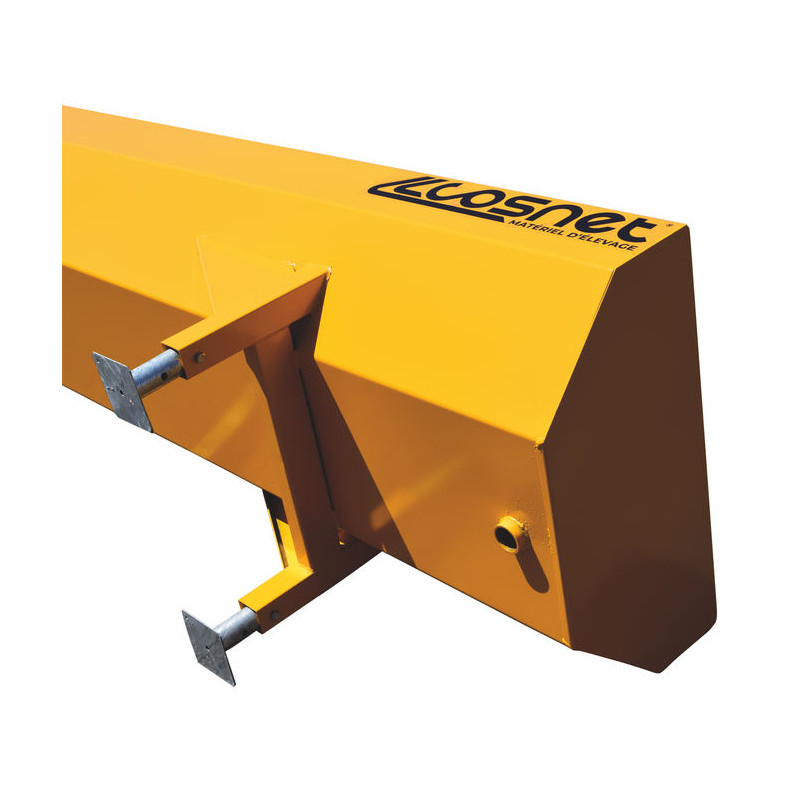

- Ø 50 mm galvanised legs for any troughs width from 0.80 to 1.50 m and Ø 42.4 for any troughs width 0.60 m. Adjustable in height in groups of 7 cm by a through bolt to adjust the height or tilt the trough to limit waste,

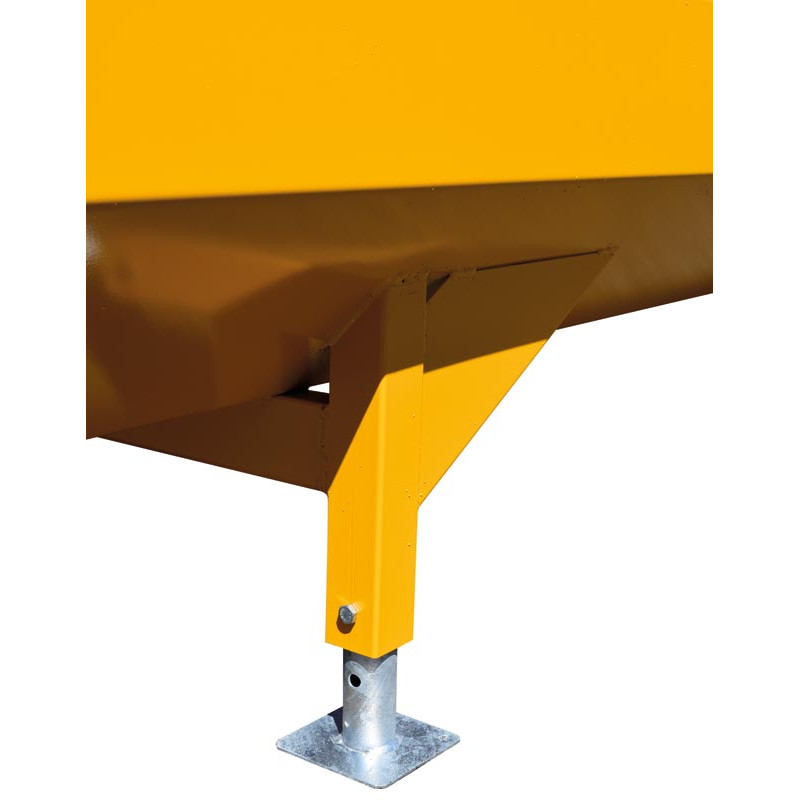

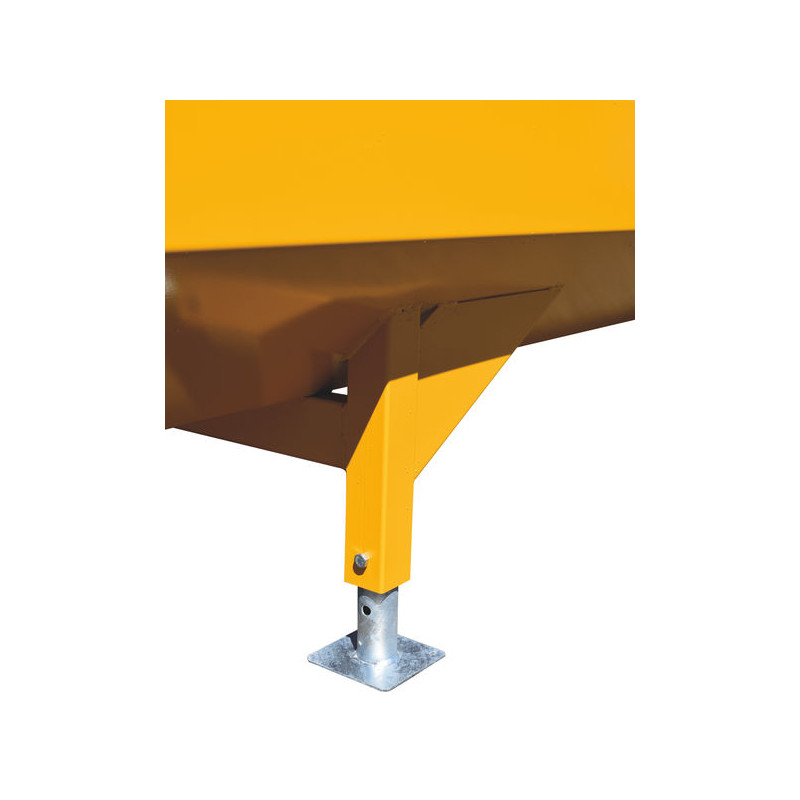

- 4 reinforcing triangular armpits between the foot and the pan to increase overall stability and solidity

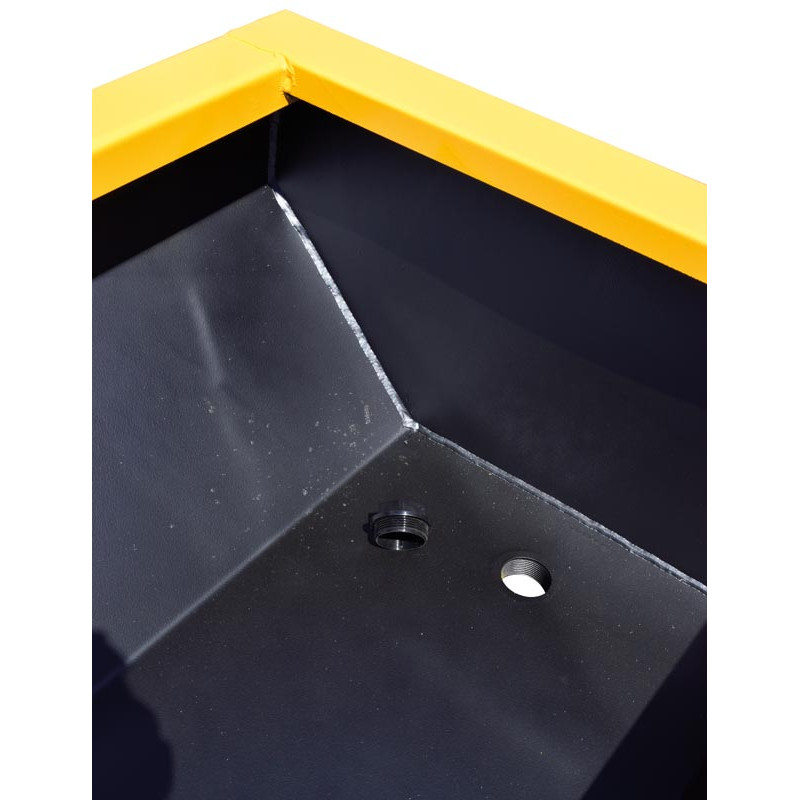

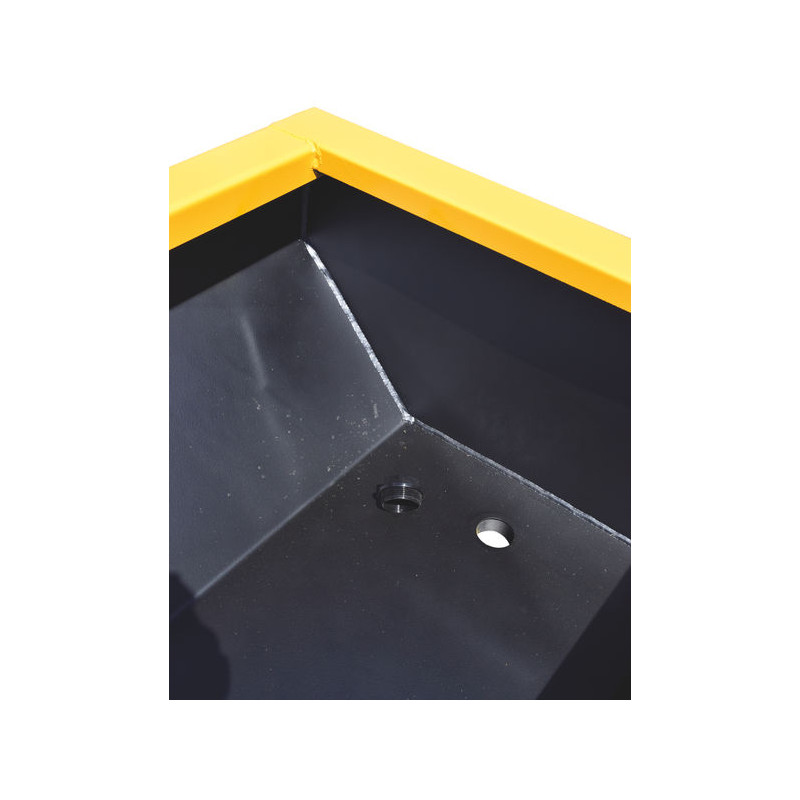

- 1 PVC threaded drain through wall plug (Ø 45 mm).

Large width reinforced feed troughs are also fitted with:
- 1 central cone reinforcing the bottom and improving silage intake for models of a width of 1.20 and 1.50 m.



Material
Steel
Width
1 m
Length
5 m
Volume
1,688 l
Min. height
64.5 cm
Max. height
78.5 cm
Depth
40 cm
Model
reinforced
Packaging
No packaging
Sales unit
Unit
Finish
painted
Bottom
bituminous coated
