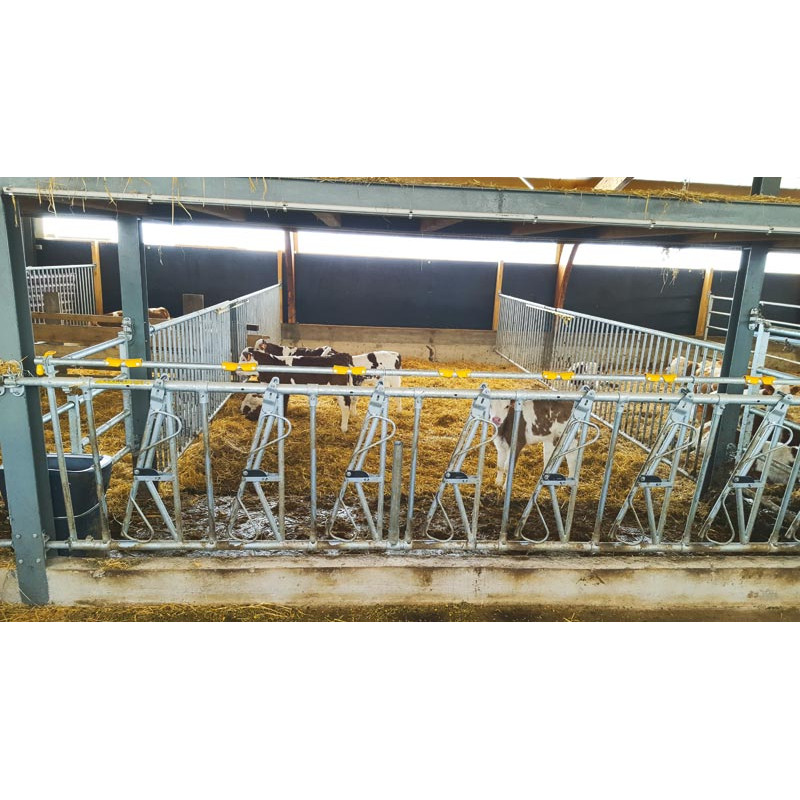

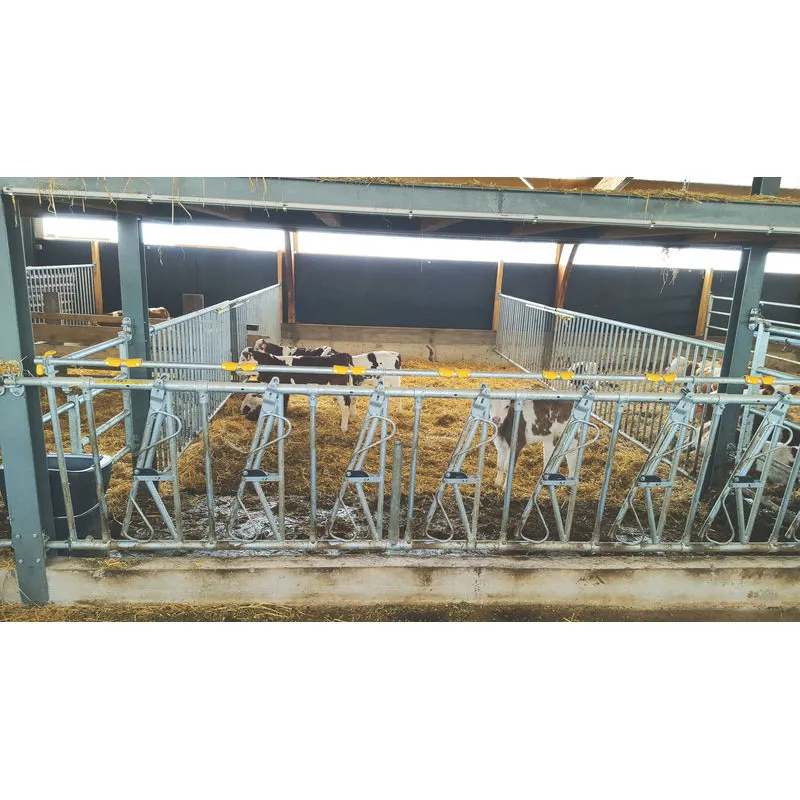

6 places/3 m JUNIOR COMFORT SR calf headlock panel without bucket holder

These "Junior Comfort SR" calf yoke panels are available without bucket holder.
For the 4 and 5 m models, two sets of bucket holders or feed troughs are recommended.
The 4 and 5 m models are respectively delivered with one and two reinforcements to embed.



Technical characteristics:
- adjustable neck, anti-choke system, anti-noise,
- collar anti-snagging,
- top and bottom head guard on moveable bar,
- reinforcement ring on each moveable bar axis,
- patented elastic spring system for automatic moveable bar return to open position,
- panel opening in both directions,
- Polymer tabs guaranteed five years, highly resistant, UV and frost stabilised. Safe opening by opening triggering possible.

- Locking system for the control bars of the embedded double tabs, secured by a guillotine mechanism with plastic-coated handle.
- Individual openings can be left closed when the yoke panel is fully opened thanks to the factory-fitted pin on the top side rail and the top section of the moveable bars.
- Patented system.  Double quick release polymer embedded tabs. Effectively and silently locks moveable bars thanks to a large diameter Teflon spacer.
- Strangulation prevention device.
- Fitted with four length-adjustable ends.
- Moveable bar with top and bottom head guard which also prevents concentrate feed dispenser collar snagging.  Lower section of the moveable bar rounded.
- Patented single-branch elastic spring system adjustable on a rack allows each moveable bar to automatically return to open position. Moveable bar axis fitted with a reinforcement ring limiting long-term wear. The single-branch elastic spring is protected from the calves.



Material
Galvanised steel
Length
3 m
Net weight
54 kg
Model
Junior Comfort SR without bucket holder
Packaging
No packaging
Number of openings
6
Sales unit
Unit
