4-rail front end with drinker opening for stall barrier

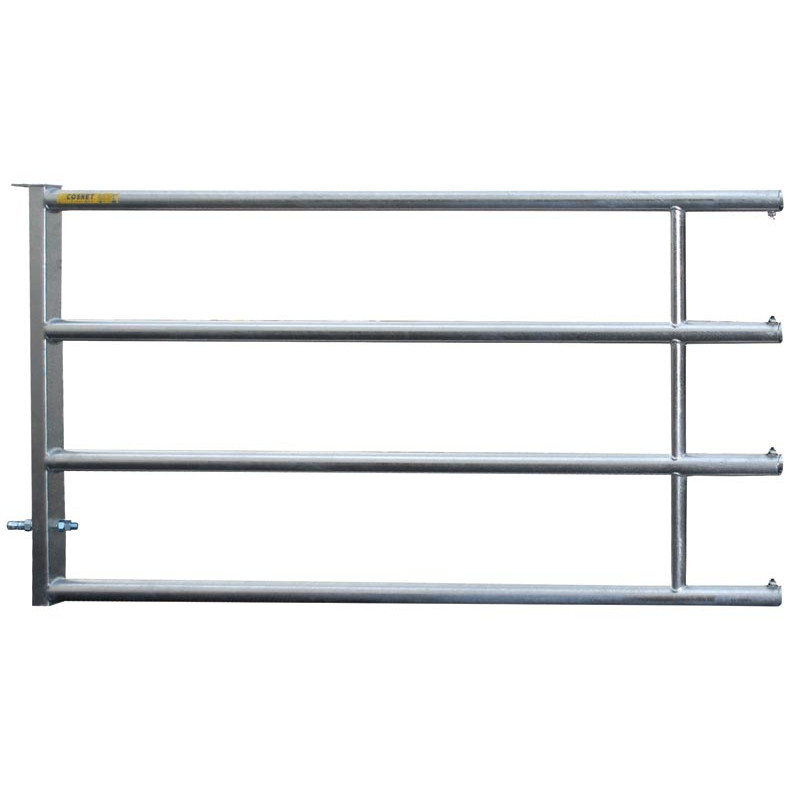

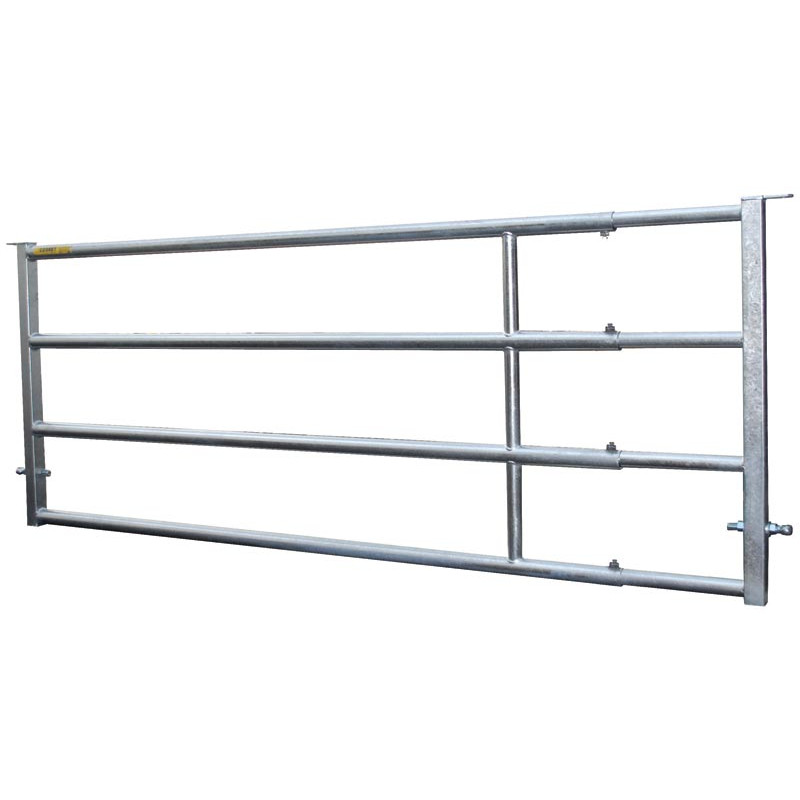

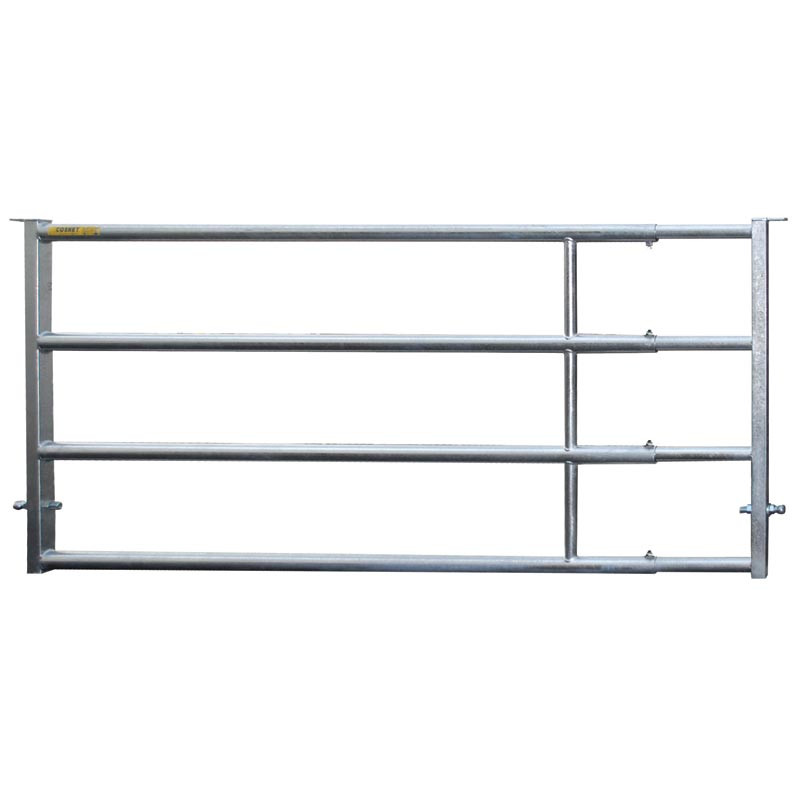

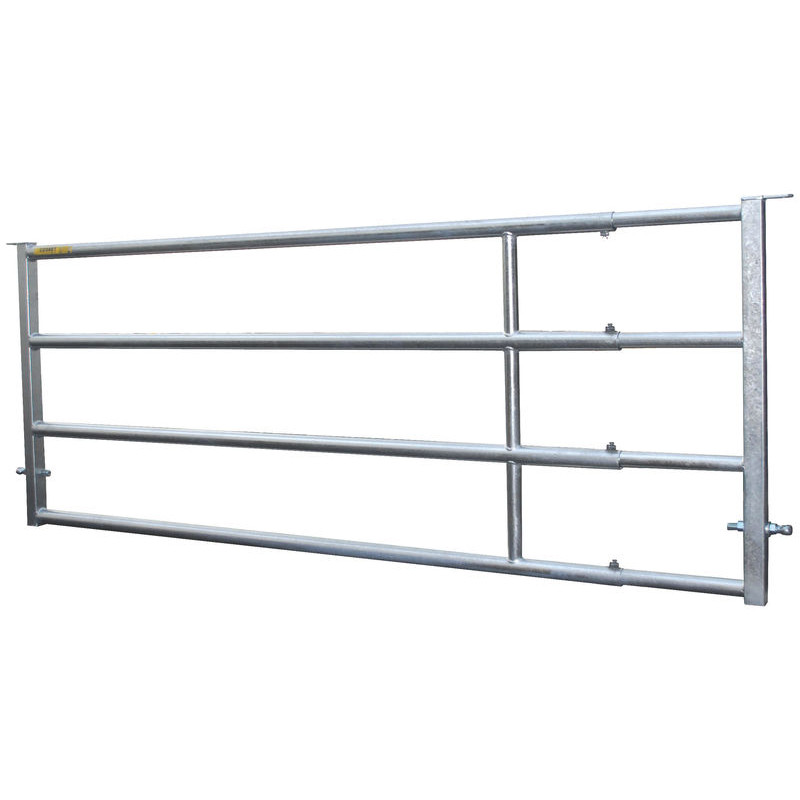

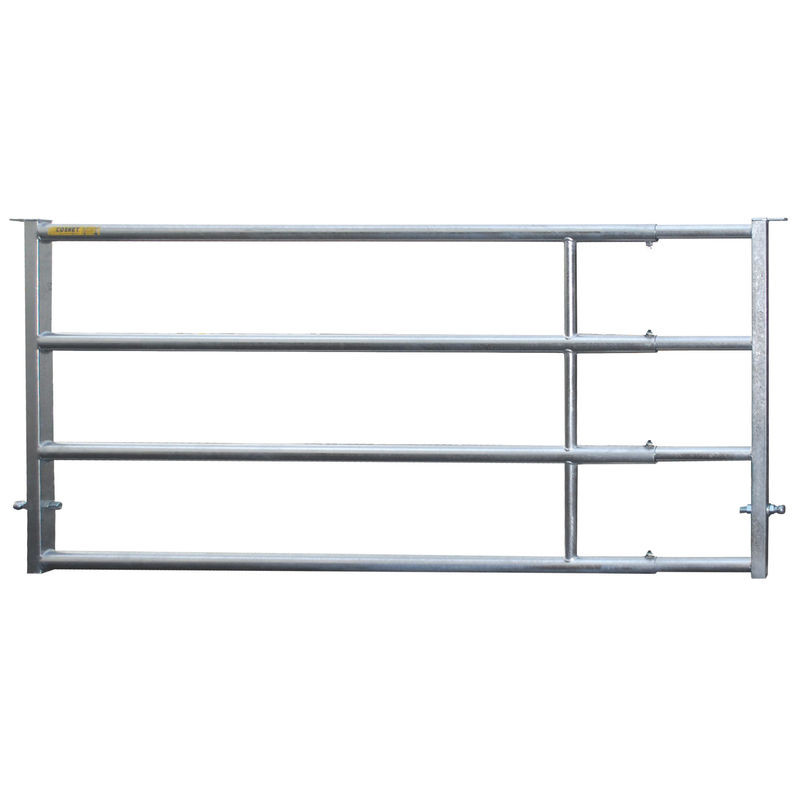

4-rail rear panel for 2/3 m stall barrier
Rear end fitted with:
- Ø 60.3 mm rails.
- 60 mm square upright.
- 1 Ø 22 mm threaded eye bolt, threaded in a reinforcement sleeve on the bottom section and secured by three nuts.
- Fastening flat bracket stamped and marked on the total length of the barrier or panel.
- sturdy and attractive finish.
- Assembly of spacers with round notches.
- All rails locked with a retaining nut.
- 1.15 m height.
- 94.8 cm fastening centre distance which is standard on the market.
- Ø 60.3 mm rails.
- 60 mm square upright.
- 1 Ø 22 mm threaded eye bolt, threaded in a reinforcement sleeve on the bottom section and secured by three nuts.
- Fastening flat bracket stamped and marked on the total length of the barrier or panel.
- sturdy and attractive finish.
- Assembly of spacers with round notches.
- All rails locked with a retaining nut.
- 1.15 m height.
- 94.8 cm fastening centre distance which is standard on the market.
- Material
- Galvanised steel
- Number of rails
- 4 rails
- Height
- 1.15 m
- Diameter
- 60.3 mm
- Net weight
- 34 kg
- Model
- rear end
- Packaging
- No packaging
- Fastening centre distance
- 94.8 cm
- Space between rails
- 300 mm
- For sizes: Front and rear
- 2 / 3 m
- Sales unit
- Unit
- Panel length
- 1,585 mm
