4-rail model featured in a column opening version. In this case, order an extra Ø 22 mm threaded eye bolt (115 50 01) and position it in the top section.

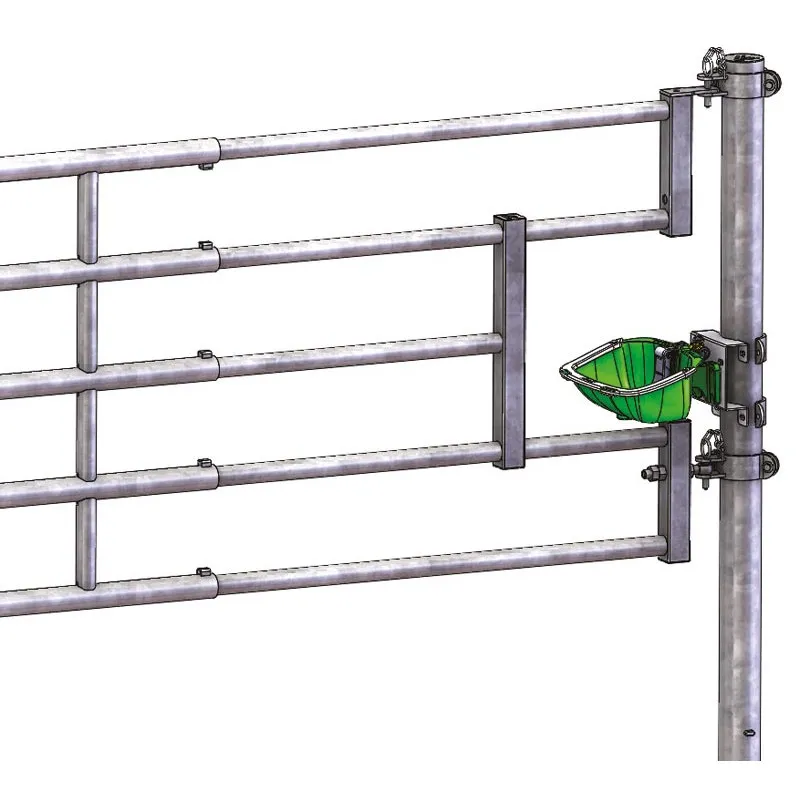

5-rail model featured in a drinker opening version. To use this end to pass a column through, position the second Ø 22 mm threaded eye bolt on the end’s top section. Can be fitted with a third eye bolt as an option.
2 fastening points for better support;
2 sliding bottom rails pass the drinker or column through.
Column opening fastening centre distance: 260 mm.
Drinker opening fastening centre distance: 948 mm.

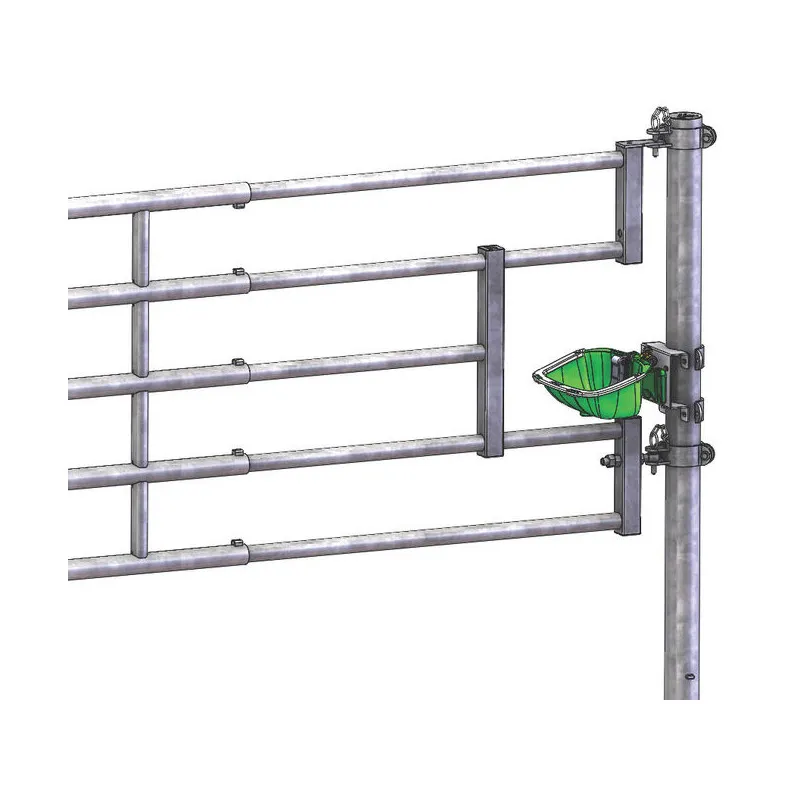

5-rail model featured in a drinker opening version. To use this end to pass a column through, position the second Ø 22 mm threaded eye bolt on the end’s top section. Can be fitted with a third eye bolt as an option.
2 fastening points for better support;
2 sliding bottom rails pass the drinker or column through.
Column opening fastening centre distance: 260 mm.
Drinker opening fastening centre distance: 948 mm.
- Material
- Galvanised steel
- Length
- 2,100 mm
- Number of rails
- 5 rails
- Diameter
- 48.3 mm
- Net weight
- 39 kg
- Model
- front end
- Packaging
- No packaging
- Sales unit
- Unit
