Multi-purpose, it can be fitted with various options:

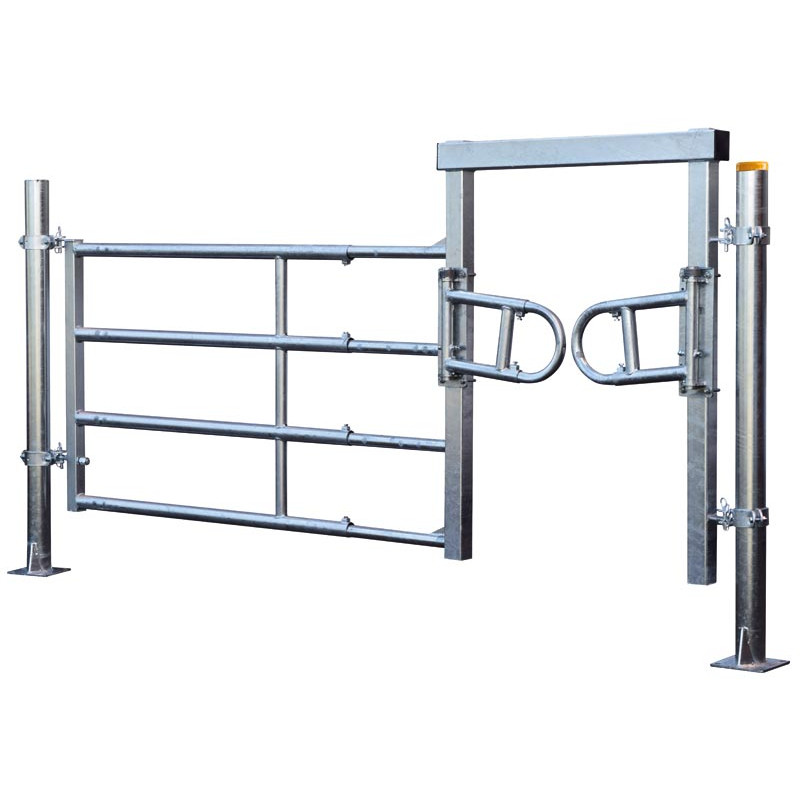

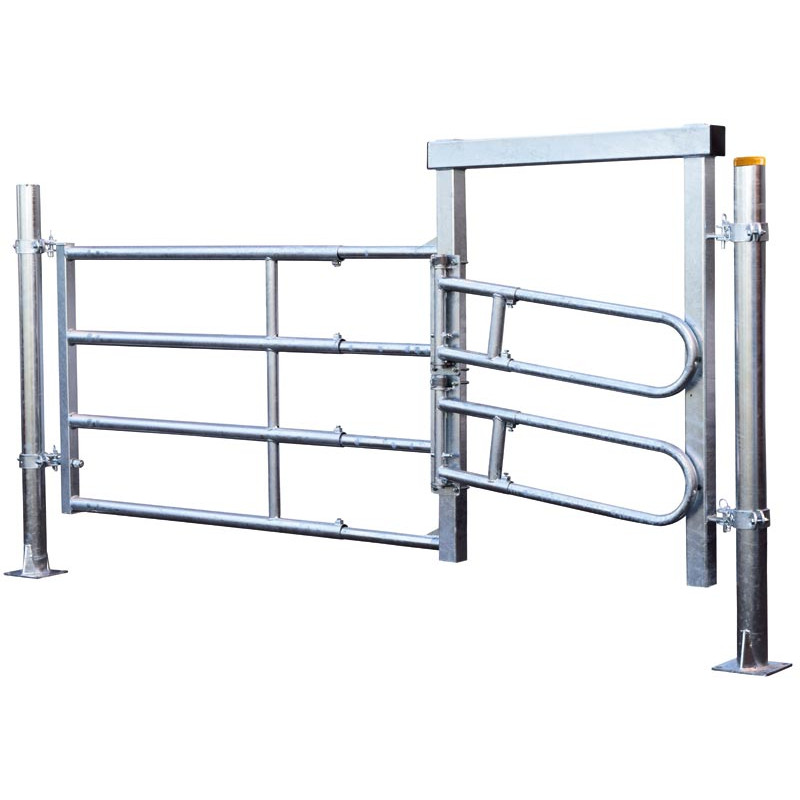

- one or two extendable anti-backing gates,

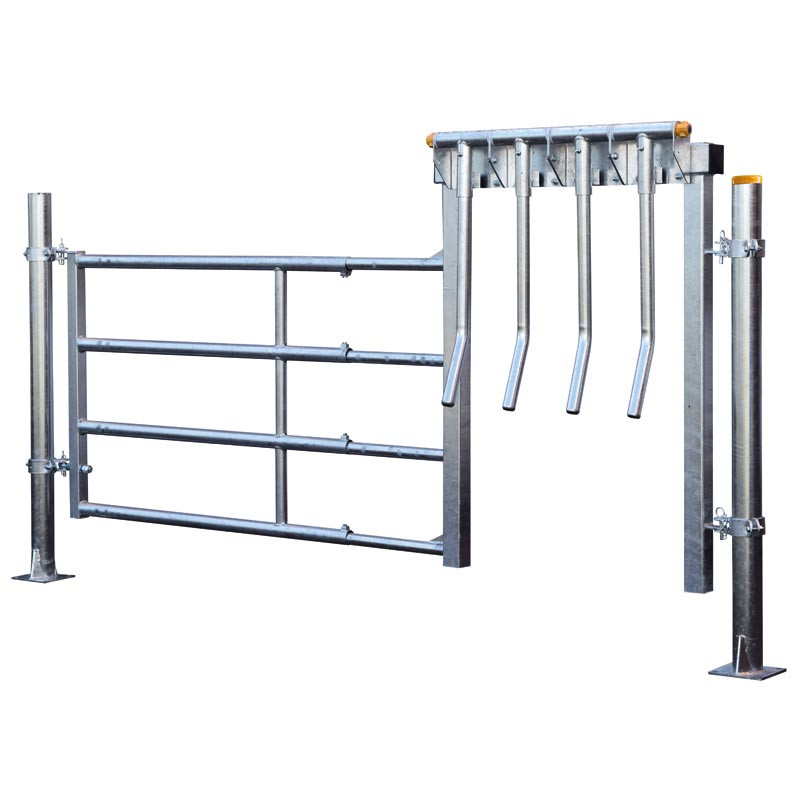

- one finger gate kit for animals,

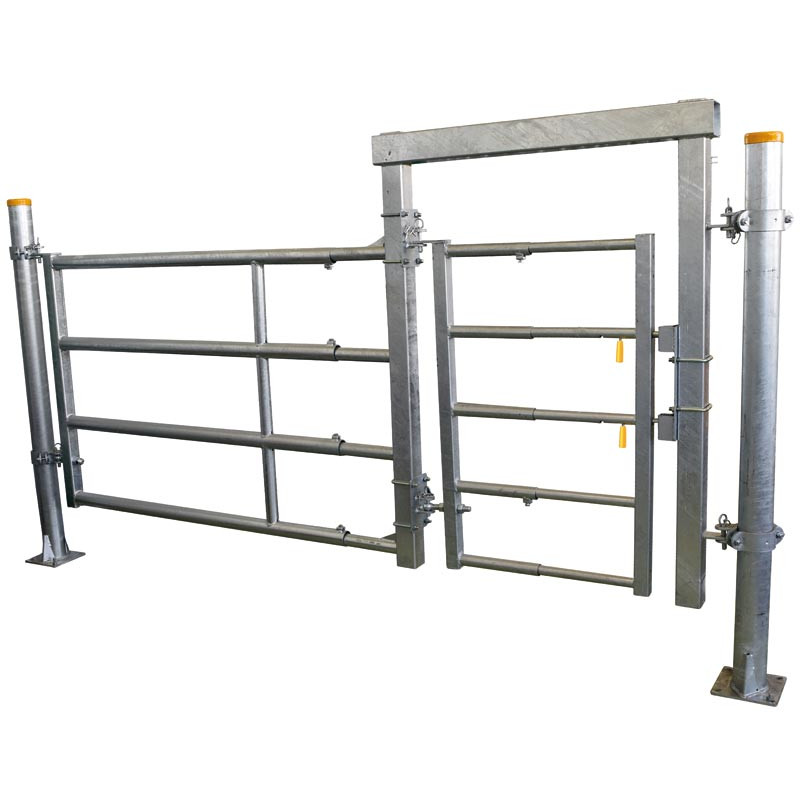

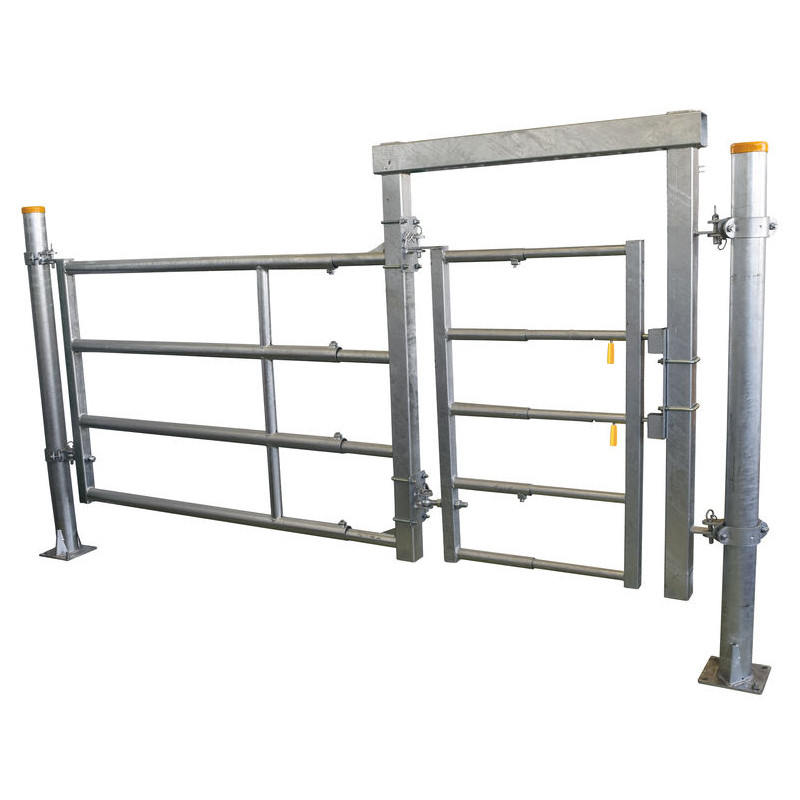

- one automatic latch 5-rail gate.
Equipped with this front end, the overall minimum length must be increased by 1100 mm.
Highly appreciated for uses around dairy robots.

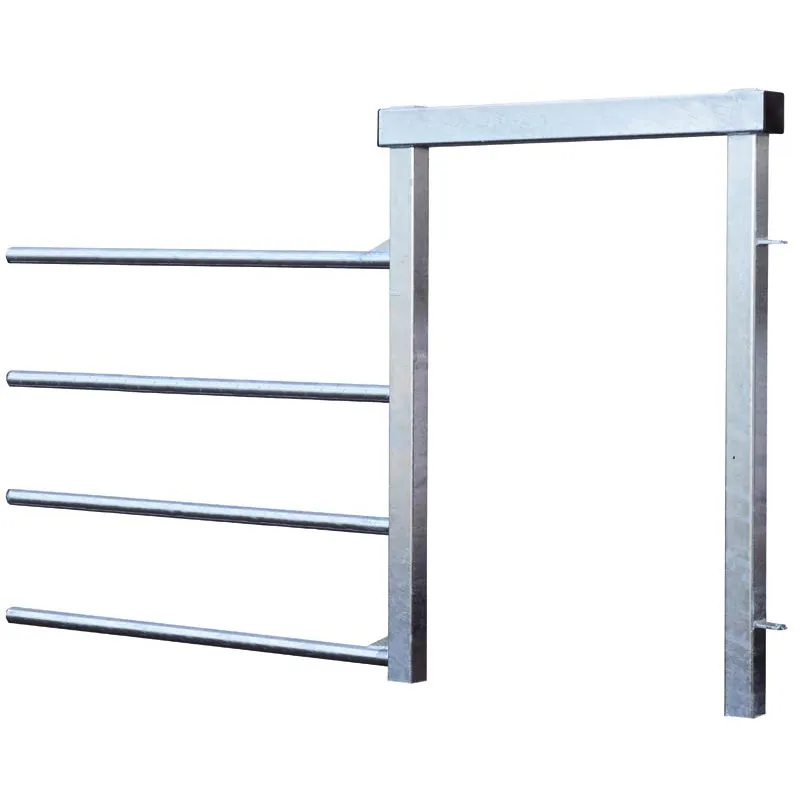

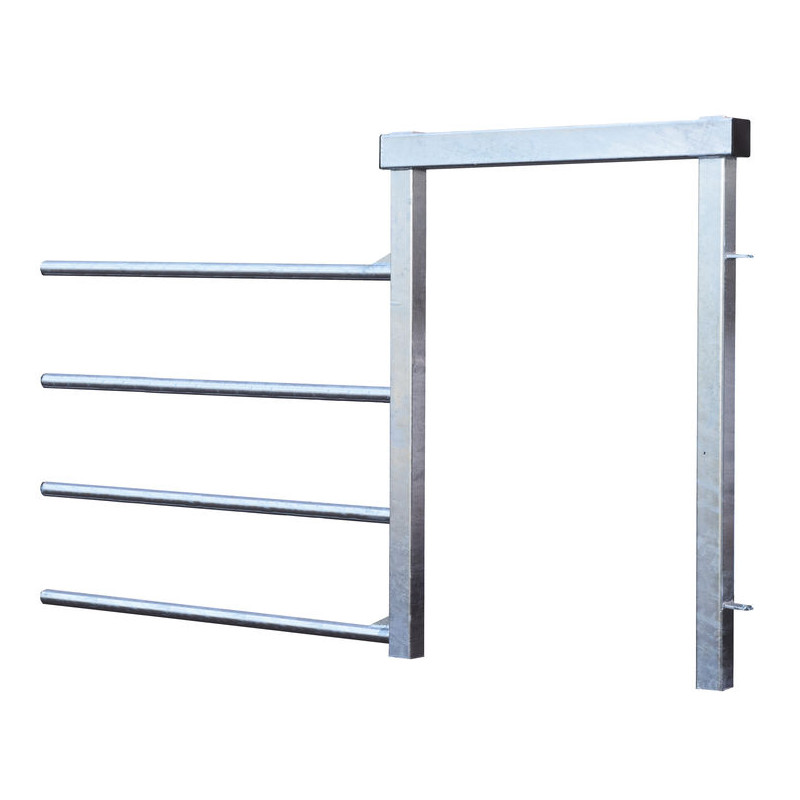

Mechanically welded frame with two 80 mm square uprights crossing an upper 100 mm square beam attached to the Ø 48.3 mm tube rails reinforced by two armpits.
Compatible with the 4- or 5-rail rear end.
- Material
- Galvanised steel
- Length
- 2,840 mm
- Number of rails
- 4 rails
- Net weight
- 66 kg
- Model
- front end
- Packaging
- No packaging

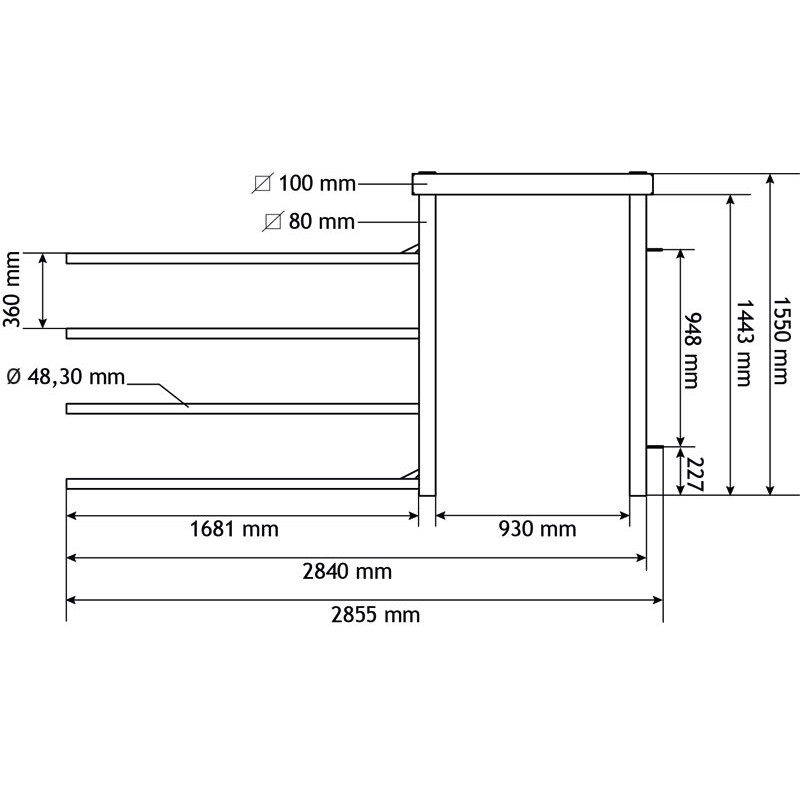

- Fastening centre distance
- 948 mm
- Width of opening
- 930 mm
- Height of opening
- 1,443 mm
- Height of rear part
- 1.15 m
- Total length given at the fastening axis
- 2,840 mm
- Sales unit
- Unit
Accessories and options
