For standard height mounting on a post, allow for clearance of 434 mm between the floor and the barrier, i.e. a floor/finger end distance of 1,033 mm.
Height can be adjusted, in this case, adjust according to the size of the animals using the opening.

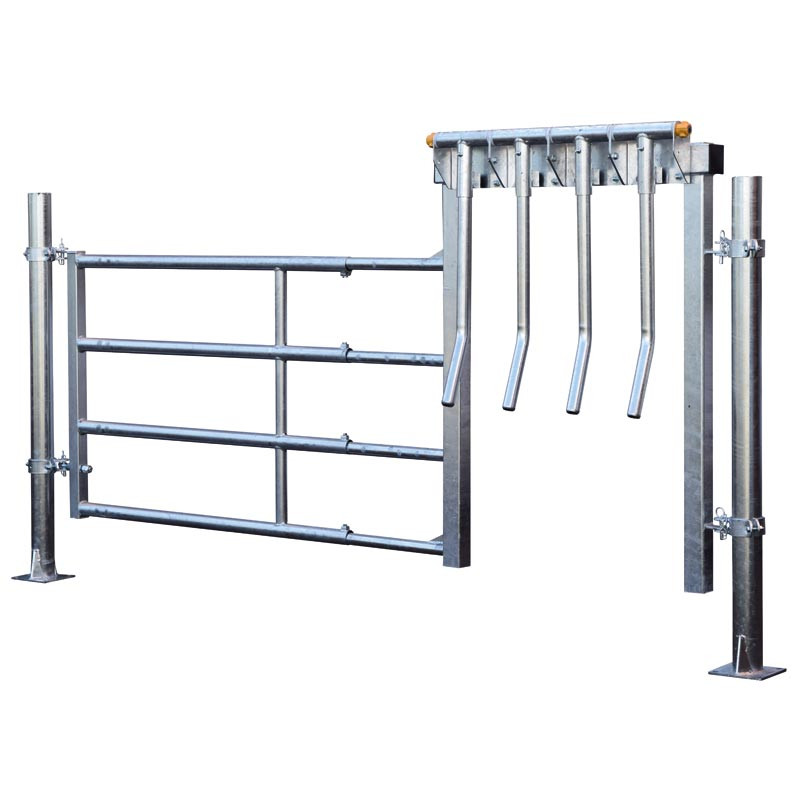

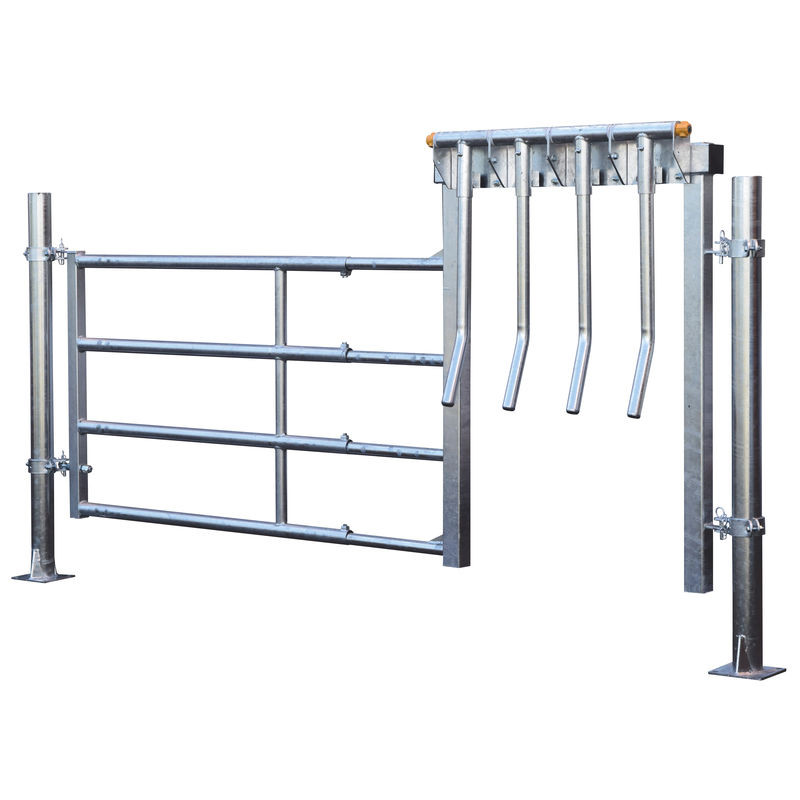

Compatible with the animal opening front end.
Height can be adjusted, in this case, adjust according to the size of the animals using the opening.
Designed to be mounted on the upper square 100 mm beam of an animal opening.

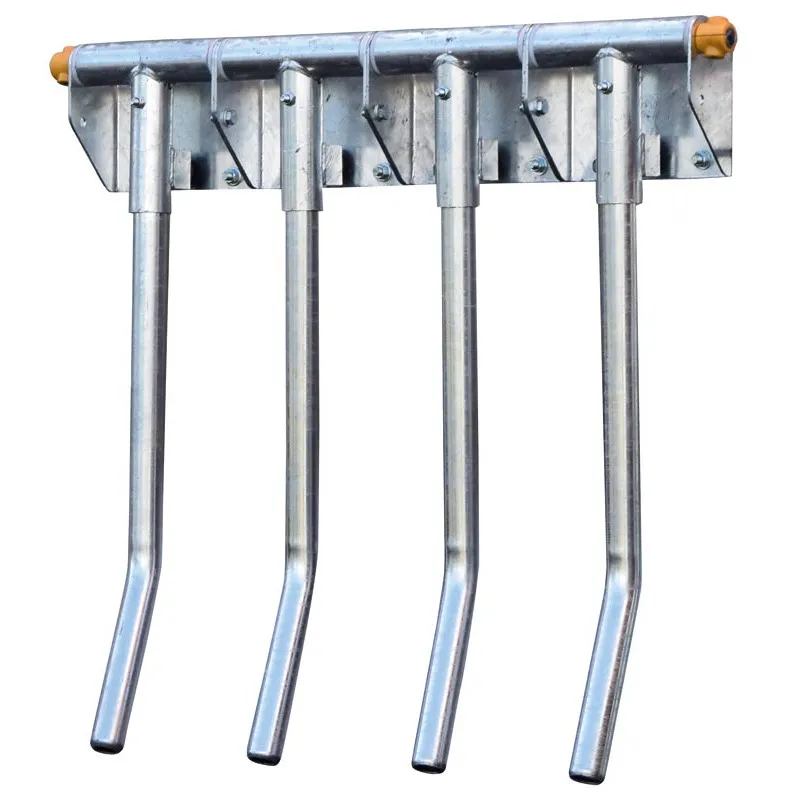

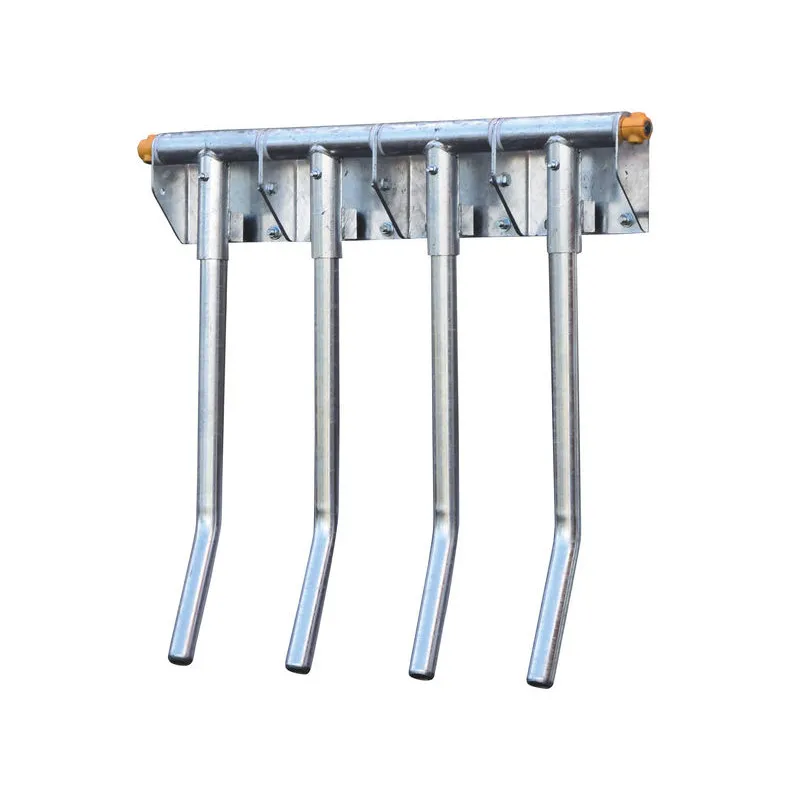

Kit features:
- 4 finger-shaped mechanical tubes called "Finger Gate", length: 945 mm. Ø 48.3 mm, inserted in a Ø 60.3 mm sleeve - thickness 5 mm - height 180 mm,
- 1 square 100 mm U-bolt supplied for each finger gate to fasten on animal opening beam, assembly between two finger gate bodies by screw and nut supplied.
- 1 additional 100 mm U-bolt to finalise the finger gate line.
- 1 Ø 27 mm pin engaging with the four finger gates.
- 2 nylon Ø 27 mm pin retainers.
- 4 noise damping pads.
Compatible with the animal opening front end.
- Material
- Galvanised steel
- Net weight
- 46 kg
- Packaging
- No packaging
- Sales unit
- Kit

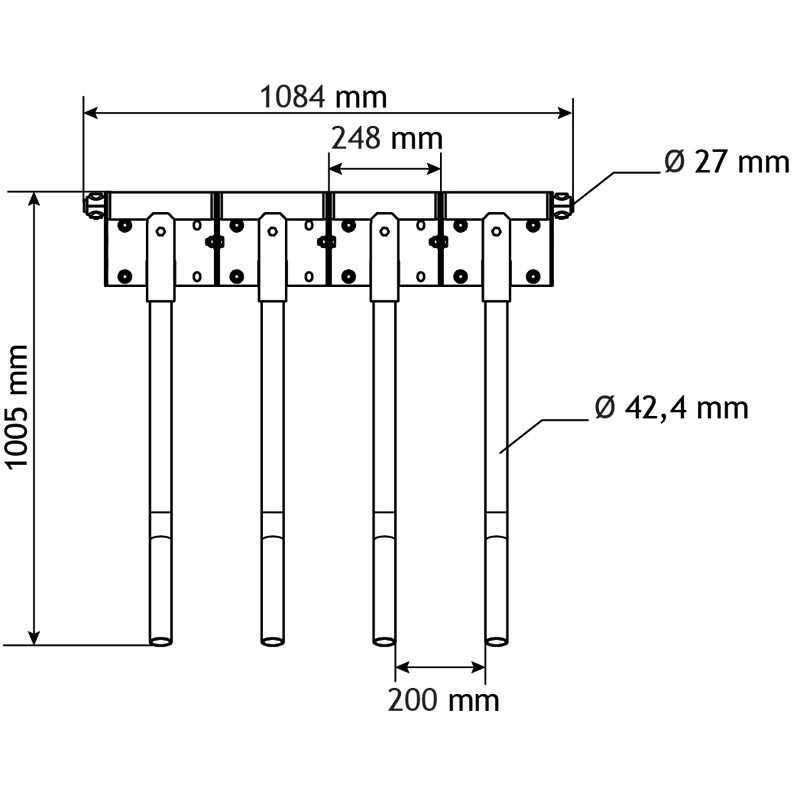

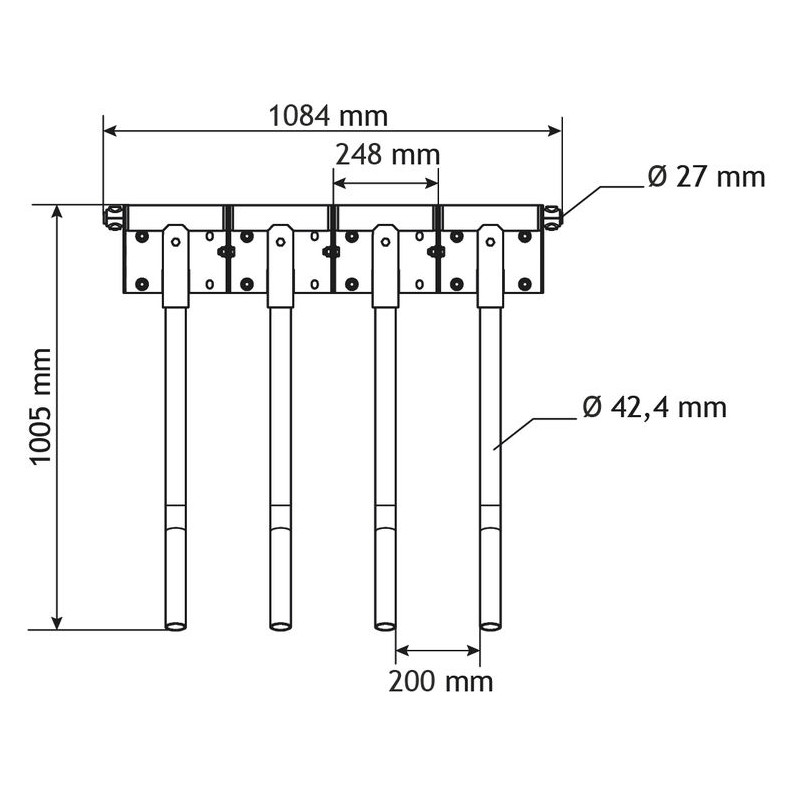

- Overall width
- 1,084 mm
- Overall height
- 1,005 mm
