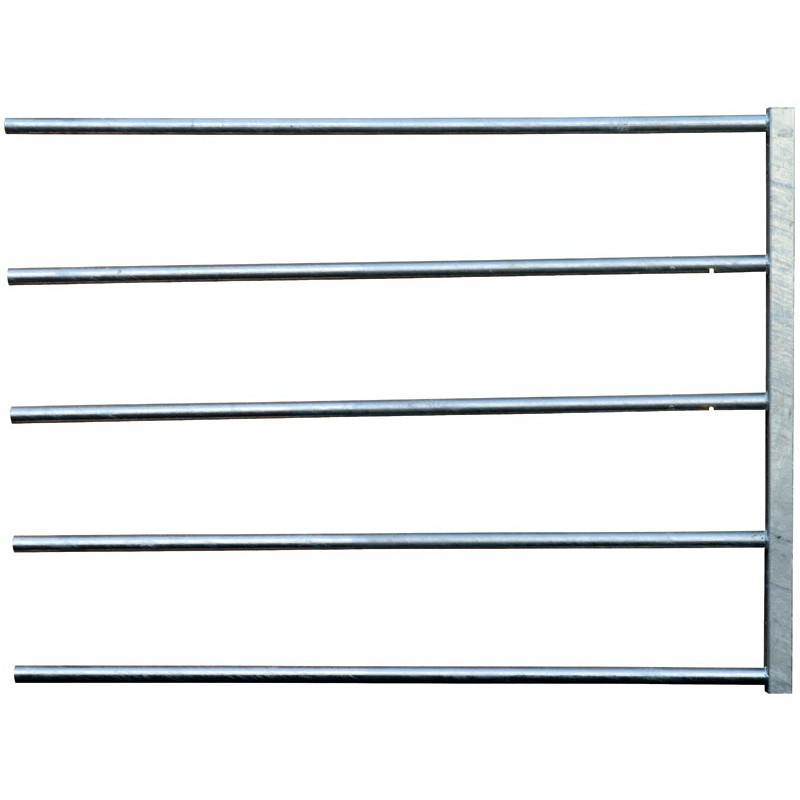

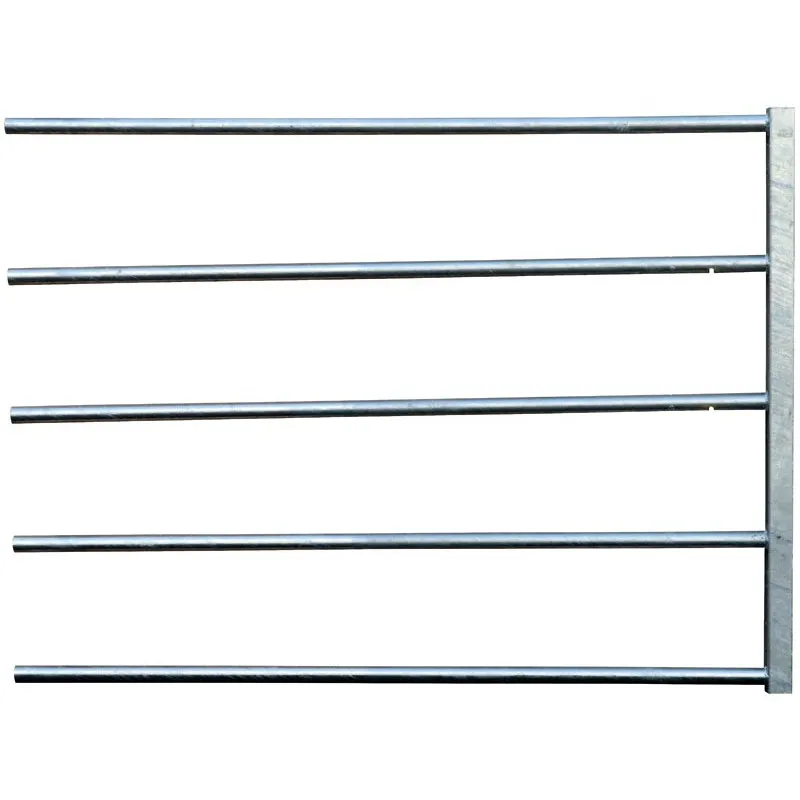

Multi-purpose Ø 34 mm pasture front end

Robust and multi-purpose.
The single latch rail gate can be converted into a double latch version
at any time.
Combined front end designed to receive, as desired:
- 1 or 2 "Easylock" (112 14 37) automatic latches to design a field barrier front end.
or
- 2 fastening flat brackets (112 14 39) to design a pasture panel front end.
Double latch panel and barrier which can be used to stall young dairy cows.
Characteristics:
- Hot-dip galvanised after assembly,
- 50 x 50 mm thickness 2 mm, front and rear uprights,
Rear section:
- 5 diam. 42.4 mm cross rails with locks on two rails through cage bolts and nuts,
- Ø 42.4 mm spacers with round notches,
- Rapid fastening and adjustment thanks to a flat bracket on the top and a threaded eye bolt in a sleeve on the lower part.
Front section:
- 5 diam. 34 mm cross rails,
Available in various versions:
- panel with two fastening flat brackets to screw to the 94.8 cm centre distance,
- 1 Ø 20 mm "Easylock" automatic lock, guided in a rail,
- 2 Ø 20 mm "Easylock" locks, guided in two rails,
- drinker/column opening.
- drinker/column opening.
Fastening flat bracket stamped on the top section.
Locks on two rails with a cage bolt and nut.
Assembly of Ø 42 mm spacers with round notches.
Top section of our front ends closed by a metal mounting plate.
Hermetic upper part.
Fitting system from underneath the bar.
Gate post designed to fit optional fastening plates.
Structure designed to fit optional Easylock automatic lockers.
Gate post designed to fit optional fastening plates.
- Material
- Galvanised steel
- Length
- 1.55 m
- Number of rails
- 5 rails
- Height
- 1.15 m
- Diameter
- 34 mm
- Net weight
- 19 kg
- Model
- pasture front end
- Sales unit
- Unit
Accessories and options
