Feature-Benefits :

Three-side opening.
Factory-fitted bottom reinforcement.

"Comfort SR self-locking yoke"

> More details

Designed for hornless herds.

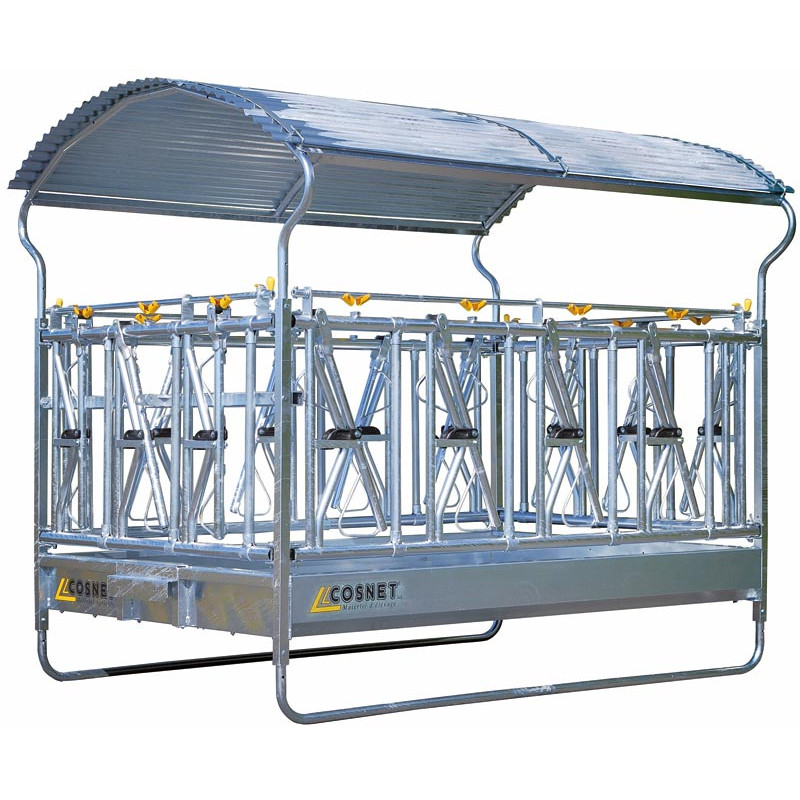

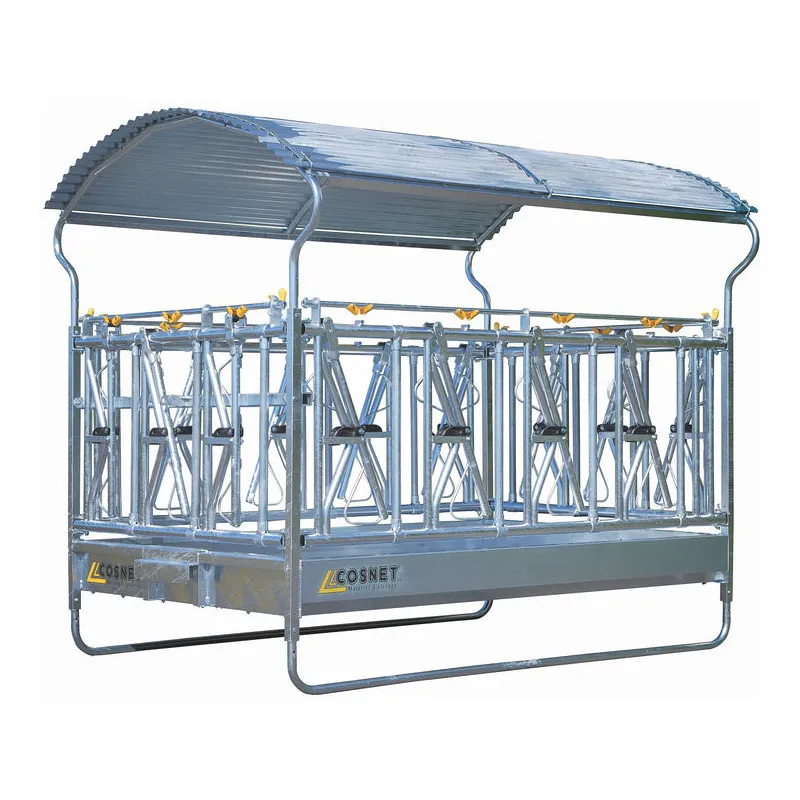

These new-generation double hay racks are designed to open on three sides:
the two wide sides and the side opposite the hitch. With a total length of 3 m,
these double hay racks are factory fitted with two Ø 60.3 mm bottom reinforcement bars (thickness 3.2 mm).
Their structure is hot-dip galvanised after assembly. Their design, incorporating four main 3 mm thick uprights, is very robust.
They are factory fitted with:

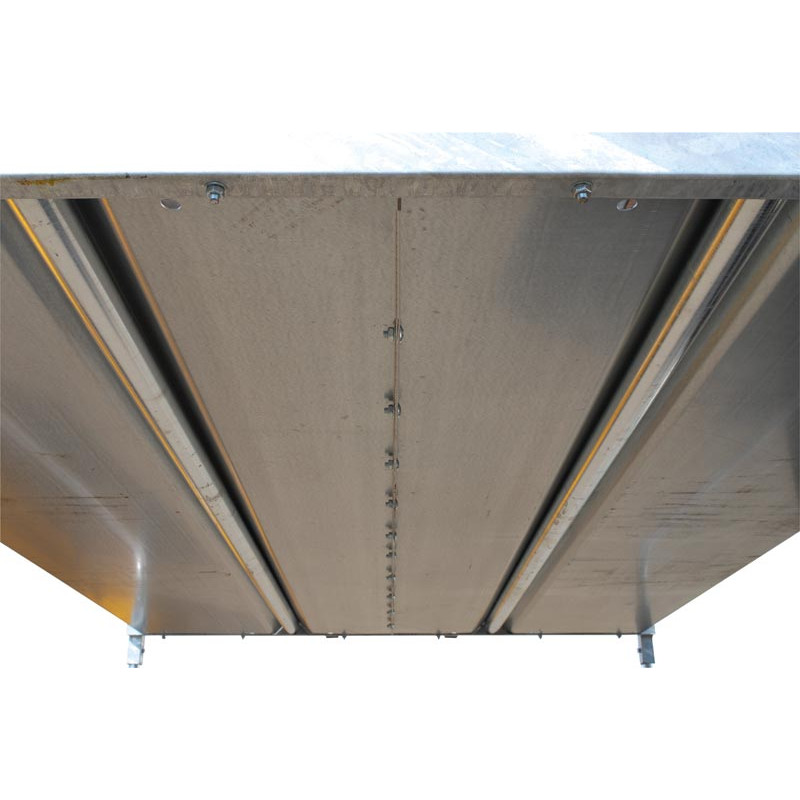

- bottom sheets reinforced by two cones to centre round bales. Ends drilled with several holes to evacuate moisture.
- ‘optimum’ roof, with a wide curve to improve the installation of large hay bales and a larger covered surface to better protect them from the rain,
- the height of the roof and pads can be adjusted by through bolts,
- monoblock hitch panel to reduce assembly time and contribute to the structure’s strength,
- Folding tow bar,
- 2 Ø 60.3 mm bottom reinforcement tubes (thickness 3.2 mm),
- Side reinforcement bars and roof protection kit.

The double self-locking yoke hay rack is fitted with:
- 4 headlock panels using ‘comfort SR’ headlock panel technology,
- anti-choke system,

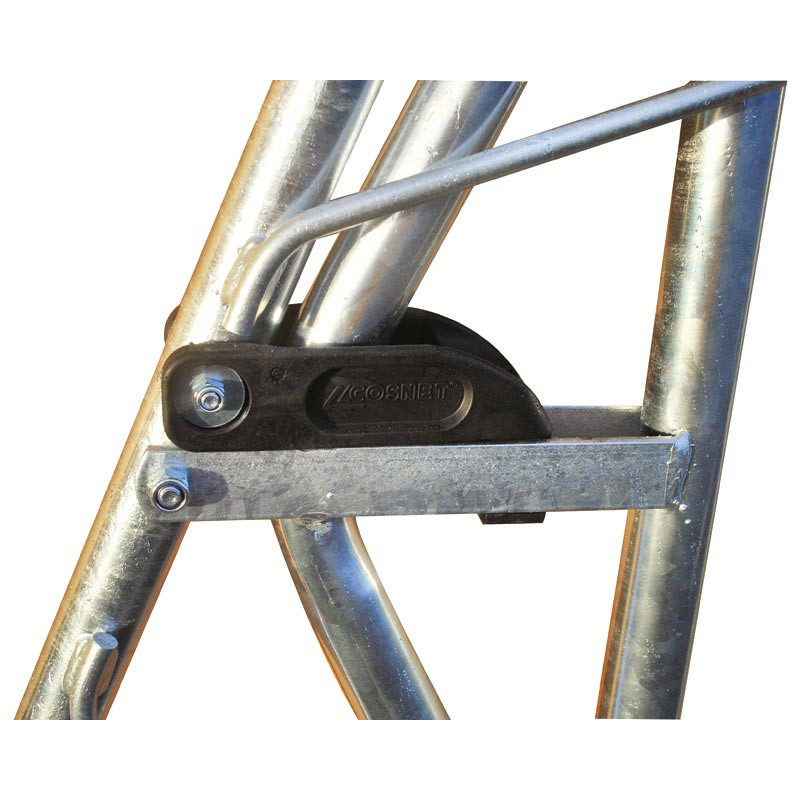

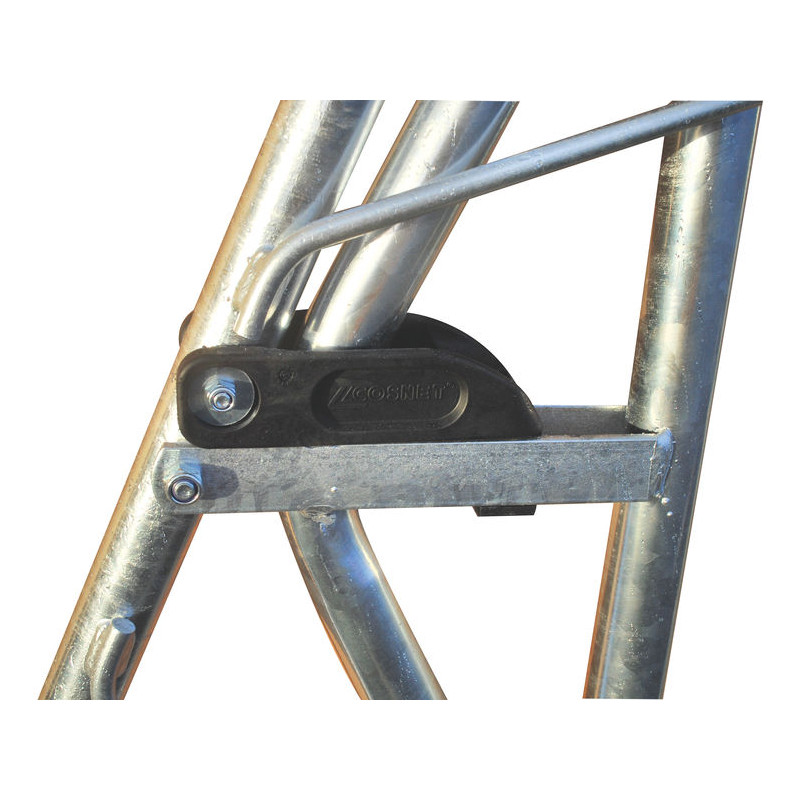

- patented elastic spring system,

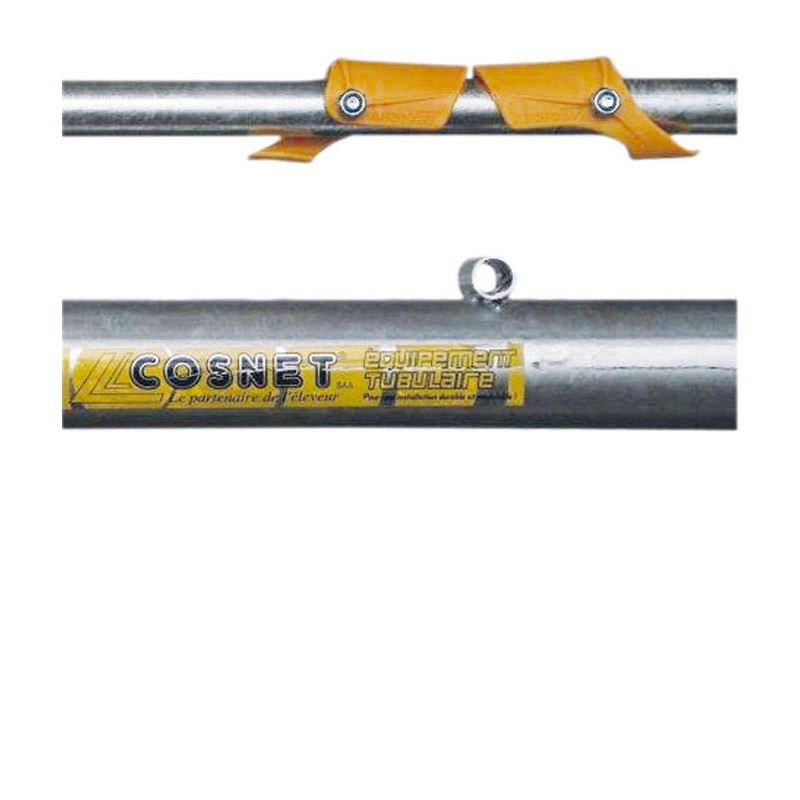

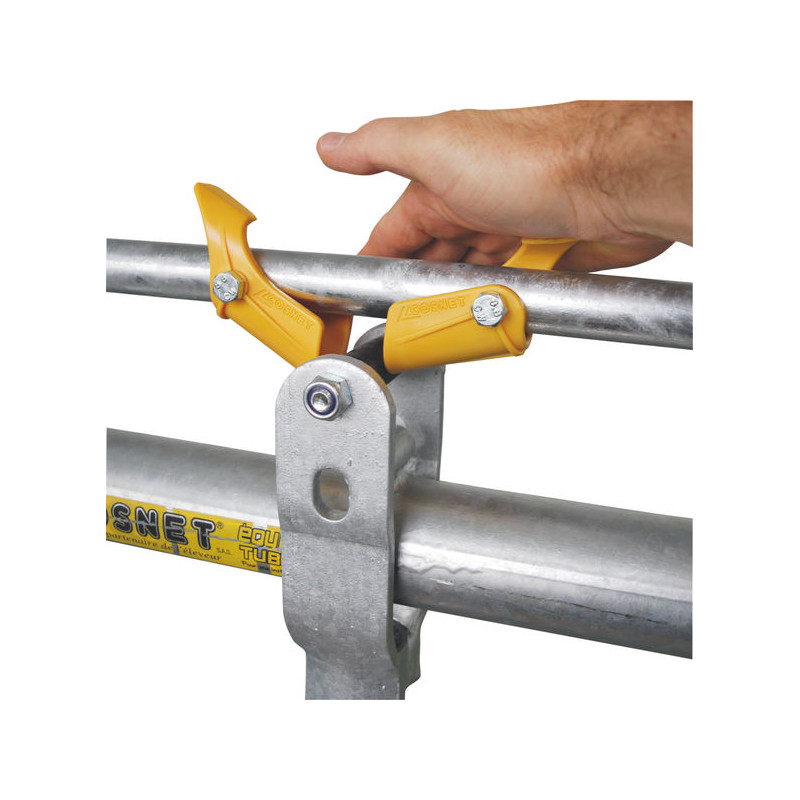

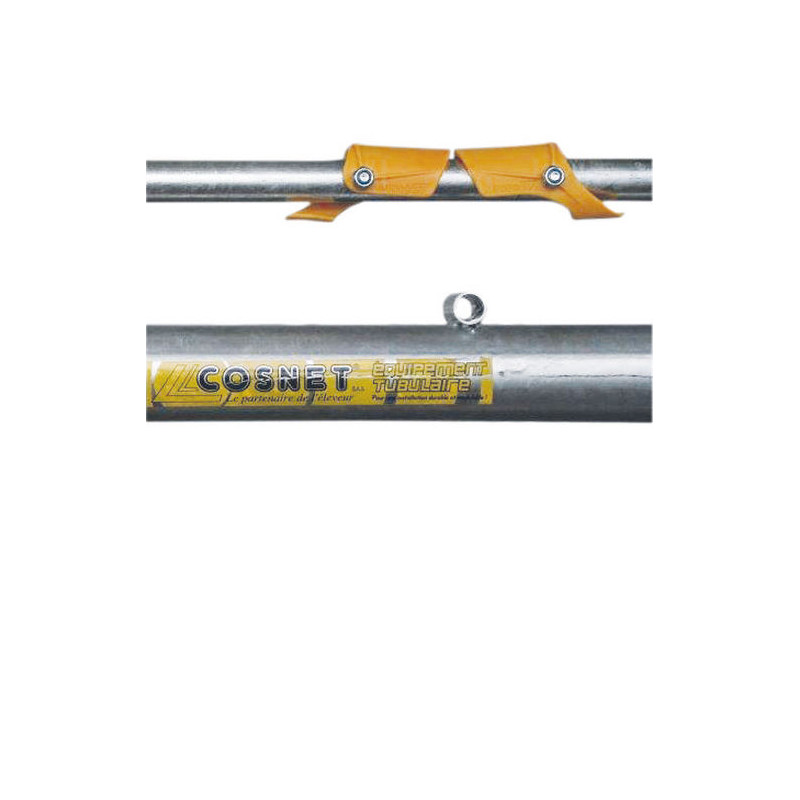

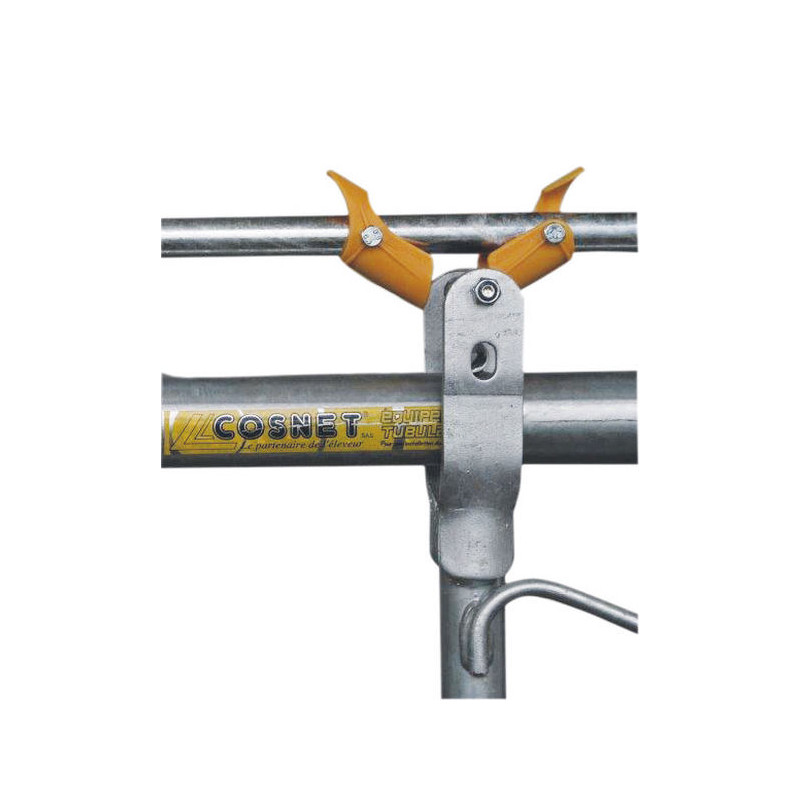

- quick release polymer tabs and automatic handle,
- 3.10 m roofing.



Delivered in kit.
Material
Galvanised steel
Width
2 m
Length
3 m
Net weight
620 kg
Model
RDTC II
Number of feed spaces
14
Type
"Comfort SR" self-locking yoke
Packaging
No packaging
Sales unit
Unit
