Calf pen STANDARD with movable partitions PVC

Calf pens designed to optimise hygiene, by improving cleaning and disinfection.

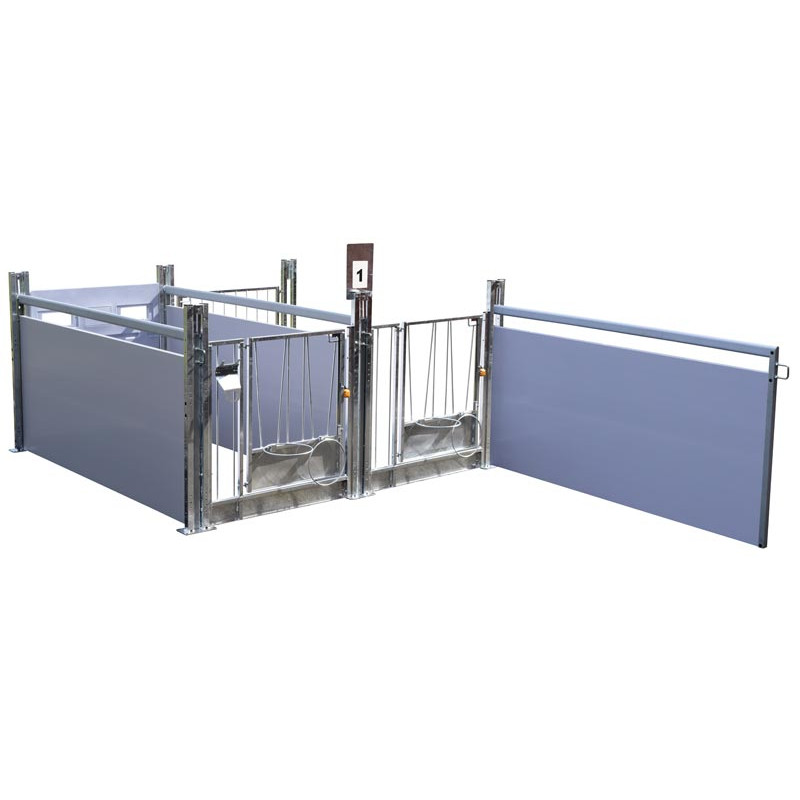

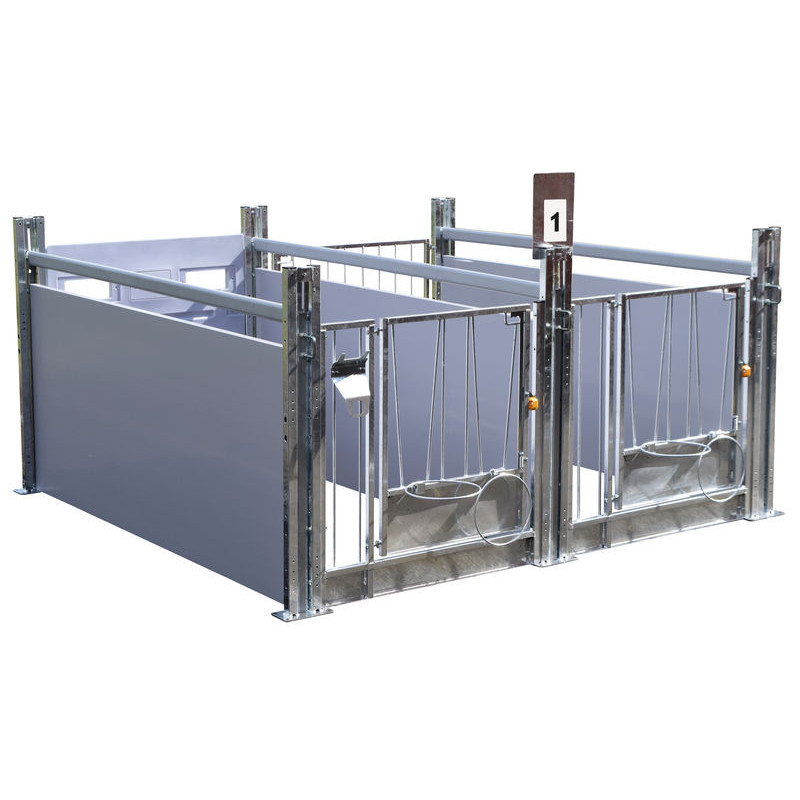

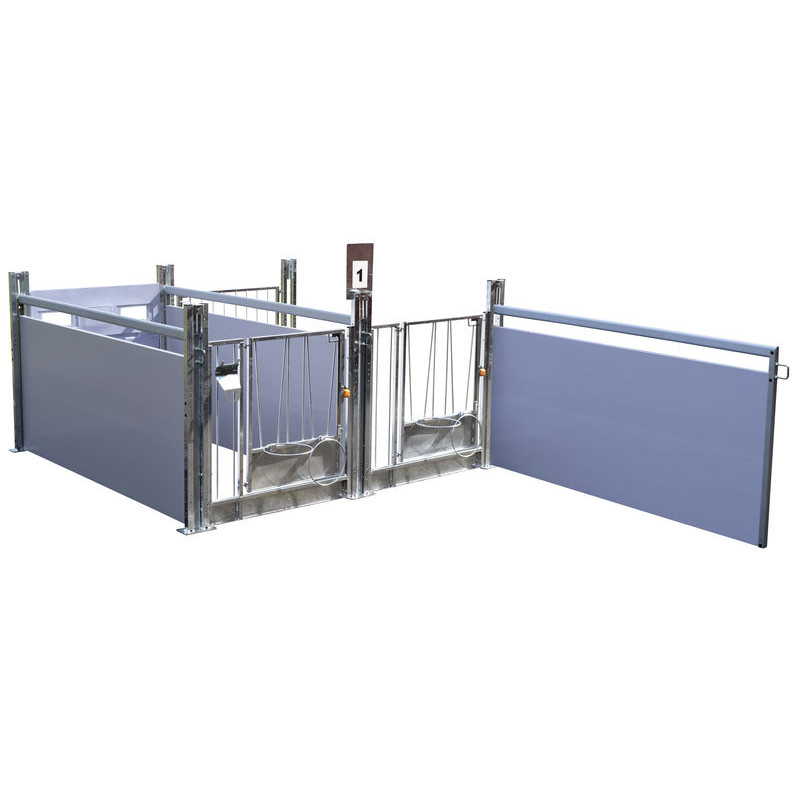

All the components of these pens are designed to fit together to form a robust, modular unit. Their modular design means that individual pens can be created in rows and converted into group calf pens at any time.
Fitted with PVC partitions open on the top. They can be dismantled in the blink of an eye to improve cleaning and disinfection operations.

They consist of:
- Front and rear galvanised posts on base plates to be fixed to the floor into which the PVC side partitions slide and to which the LM front panels with two head spaces and PE rear gate or rear panel are fixed,
- An LM 2/3-1/3 front panel fitted with an easy-to-use "MVE" locking system with a vertical mechanism. Front with 2 retractable bucket holders 28 cm in diameter, adjustable hinges and sheet metal base. As an option, it can be fitted with headlock bars,
- PVC side partitions with smooth walls for optimum cleaning.
They are sliding, very robust, rot-proof, resistant to disinfectants, frostproof and UV-stabilised.
These partitions are designed to prevent contact between calves below 1000 mm from the ground.

As an option, they can be fitted with a choice of a rear panel, either a galvanised or
HDPE panel. Designed for calves until 2 months old.

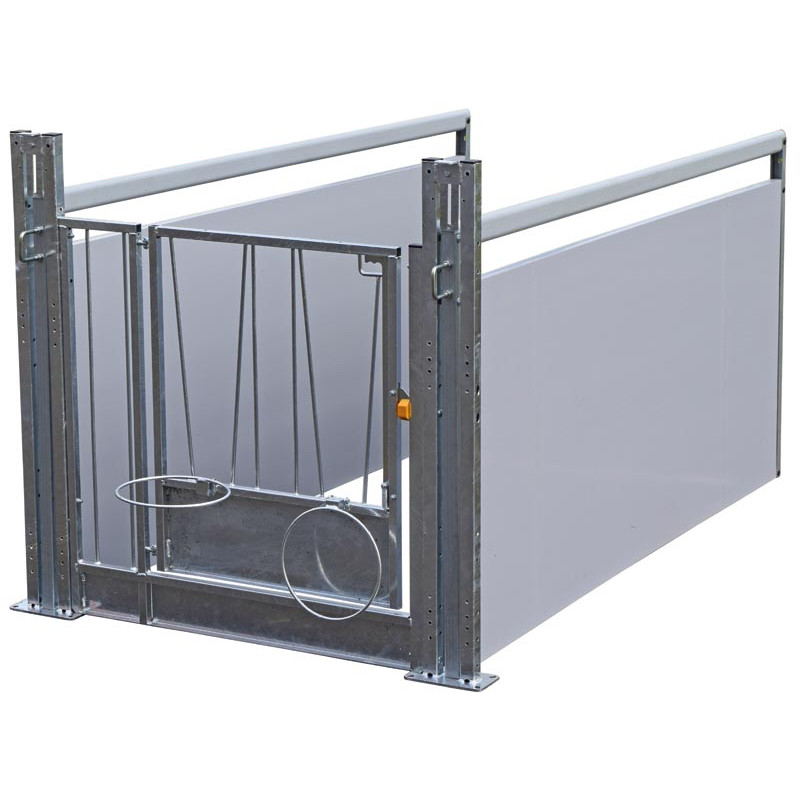

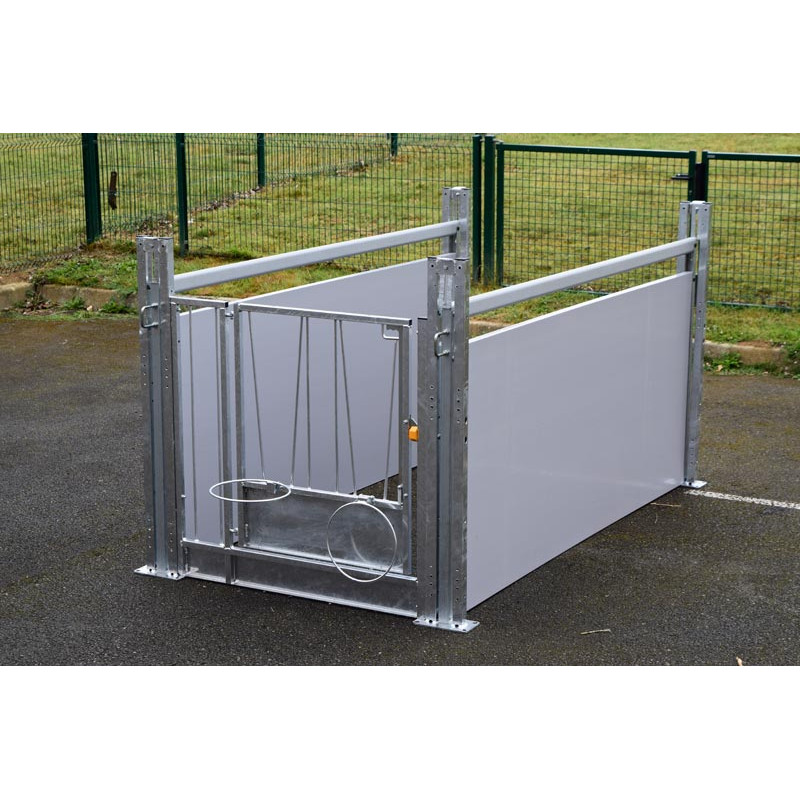

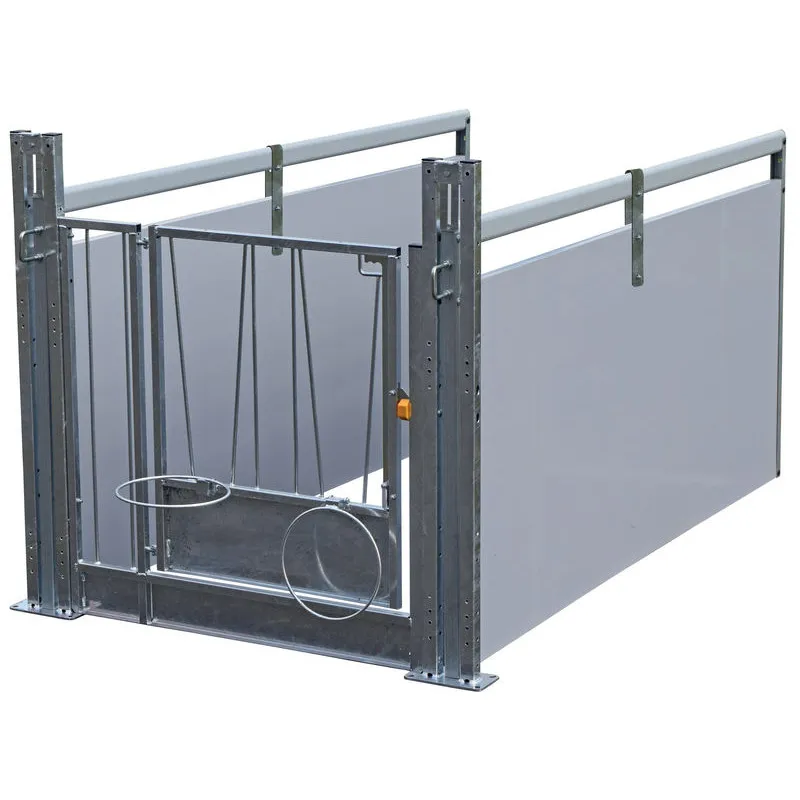

Calf pen with a surface area of 2.88 m².

It consists of:
- 2 PVC partitions open on the top part,
- 4 galvanised metal posts on base plates, open in the centre to slide in the removable partitions and make them easier to slide,
- 1 front panel with 2 bucket holders fitted with "MVE" vertical locking system.

Options:
- Barred rear gate fitted with "MVE" vertical locking system,
- Rear panel in HDPE
- Teat bucket holder,
- Teat bucket,
- Bucket,
- Panel for livestock monitoring,
- Set of adhesive numbers,
- Pair of stainless-steel side-wall shutters for use in the event of a sick calf,
- Pair of headlock bars for the front.
