Mounting and finishing kit for finger gate

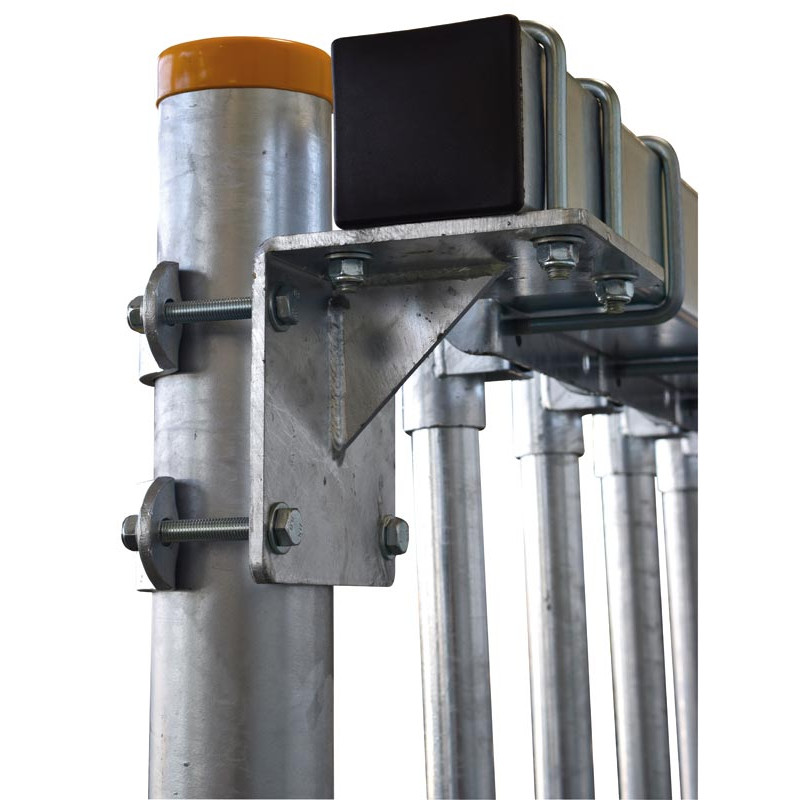

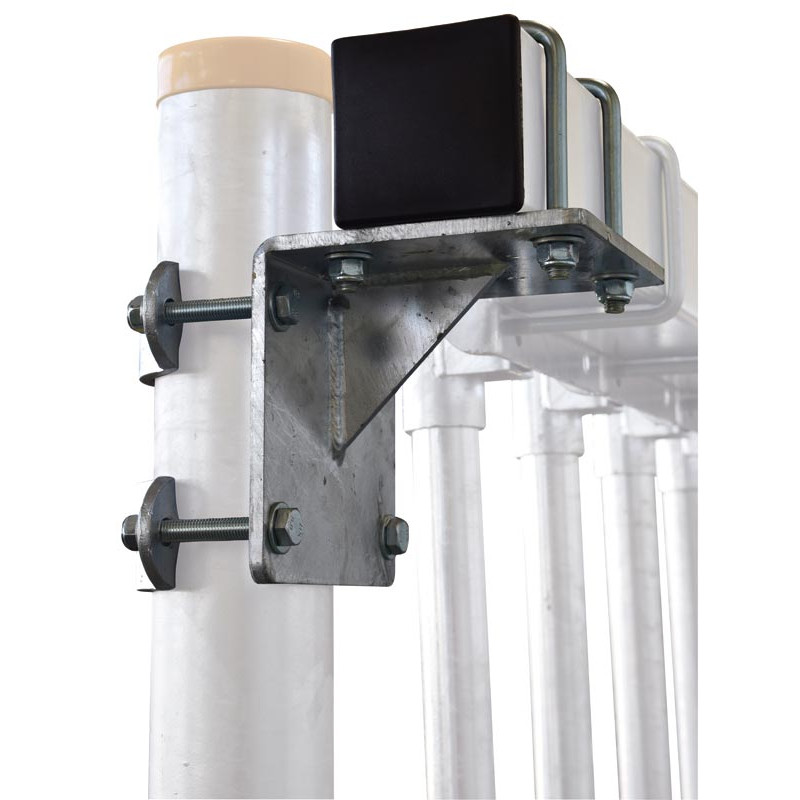

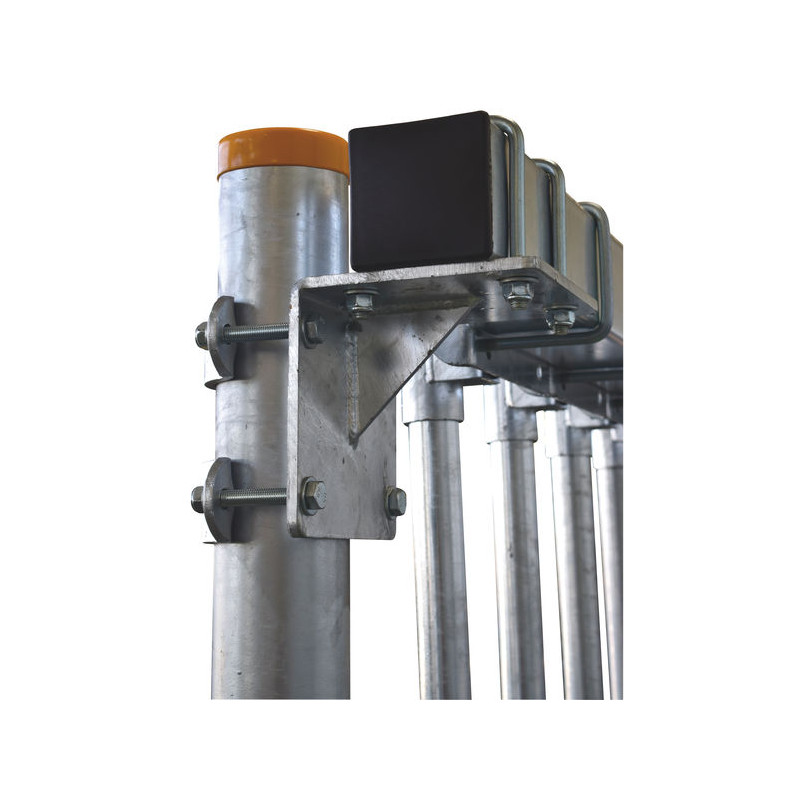

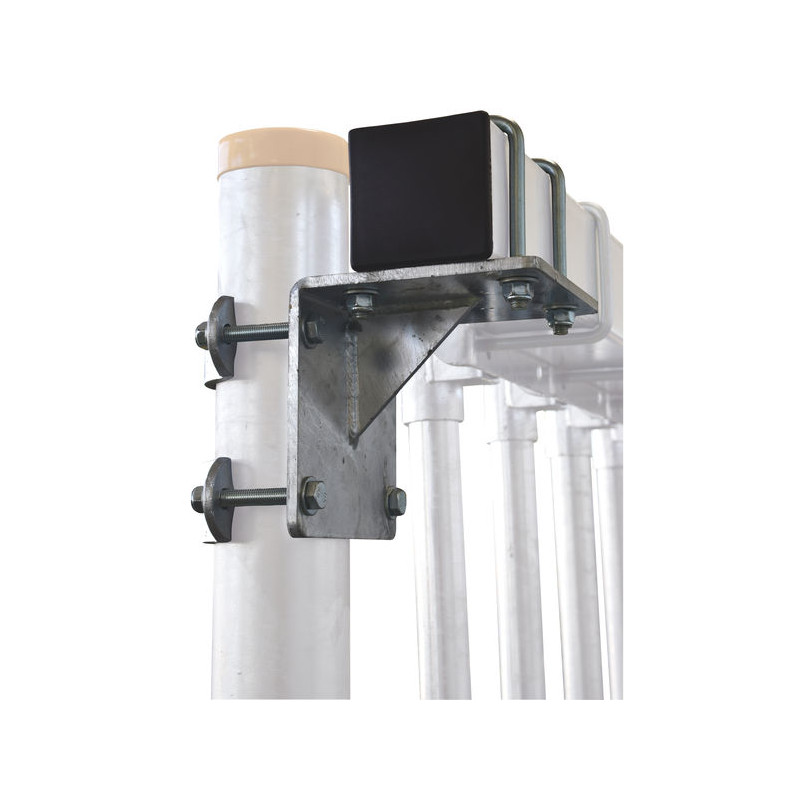

Kit designed to mount a finger gate on a square 100 x 100 mm beam.
The kit offers the possibility to fasten the structure either:
- on a Ø 102 mm post,
- directly on the wall by positioning the corner bracket either above or below the 100 x 100 mm beam.
- combined with one side on the post and one side on the wall.

Finger gates were designed to organise the movement of dairy cows without them being to turn back. They are commonly used at the entrance and exit of milking parlours or milking machines.
For custom structures:
- allow 248 mm of space per finger gate,
- allow a maximum of 205 mm between the finger gate and the end of the structure,
- ideally, mount the structure at a height allowing a maximum clearance of 1,033 mm under the gate for dairy cows, high mounting can optimise anti-backing according to the morphology and age of the animals.

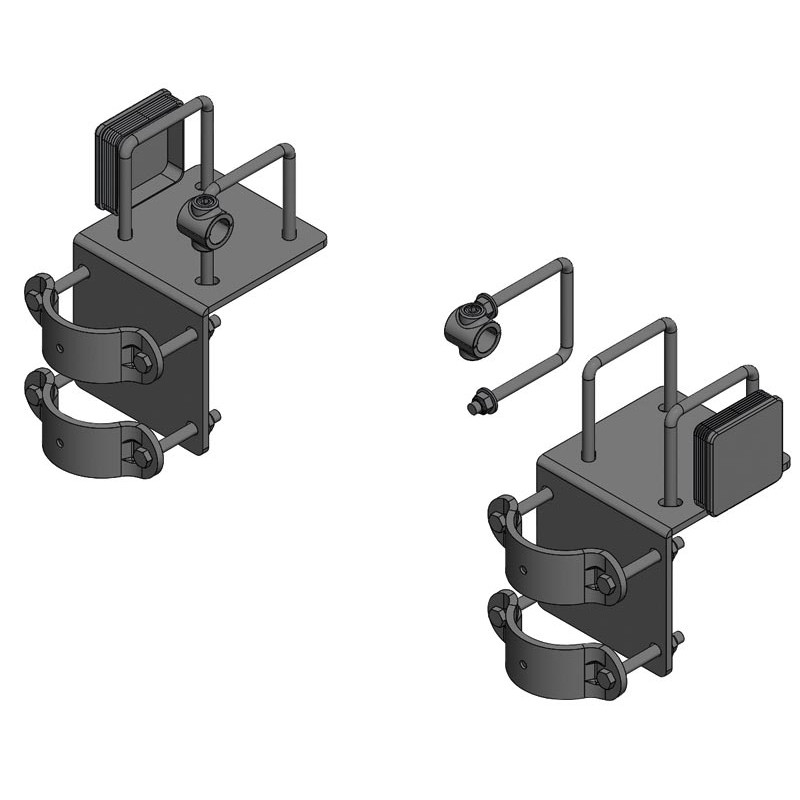

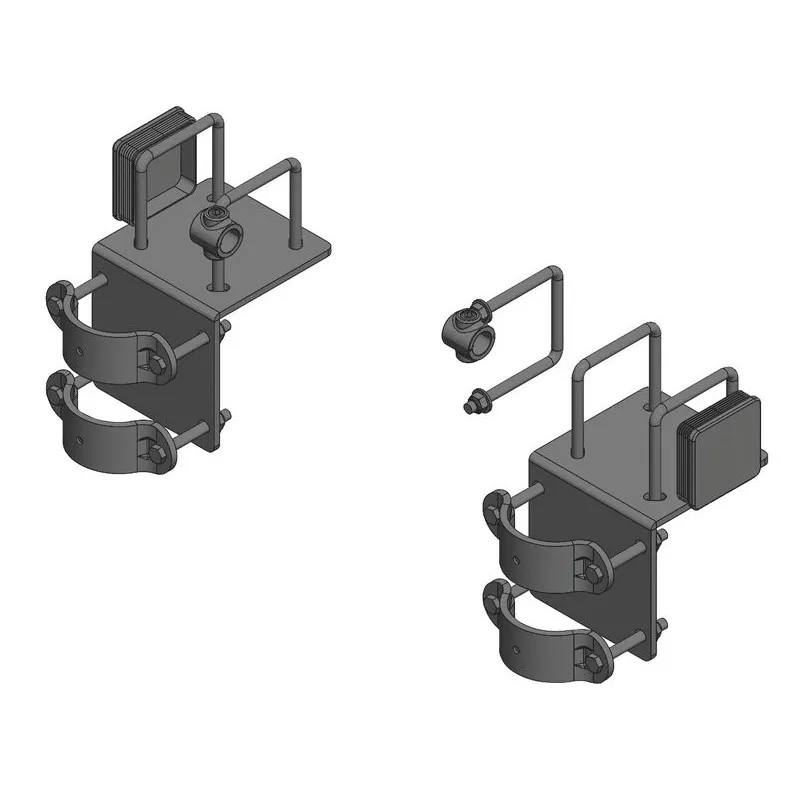

Comprises:
- 2 galvanised corner brackets with a pair of brackets and screws.
- 5 square 100 mm U-bolts supplied with screws and nuts.
- 2 Ø 27 mm pin retainers.
- 2 100 x 100 mm plastic caps.
