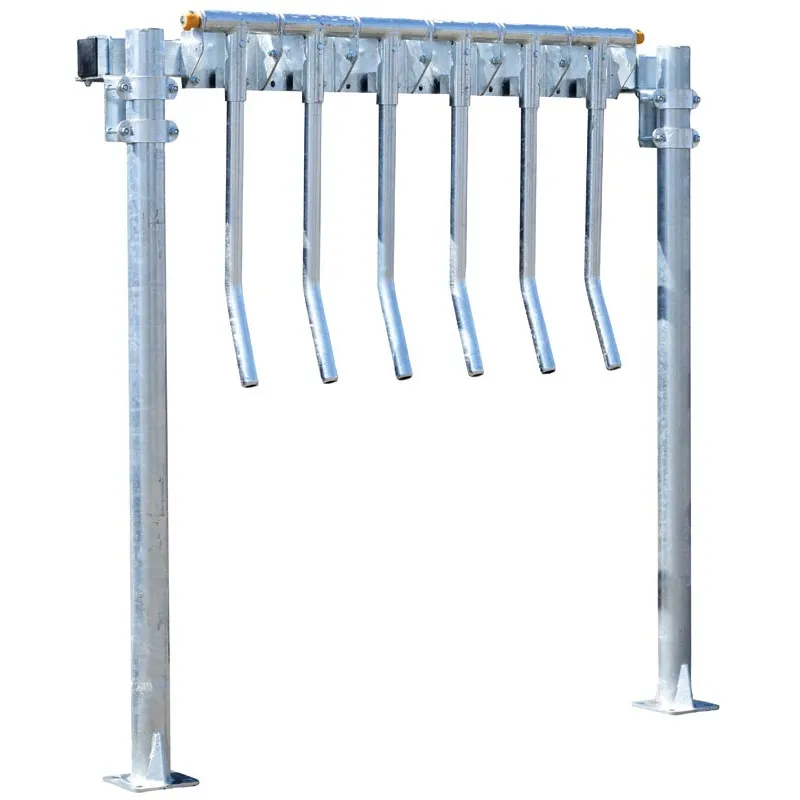

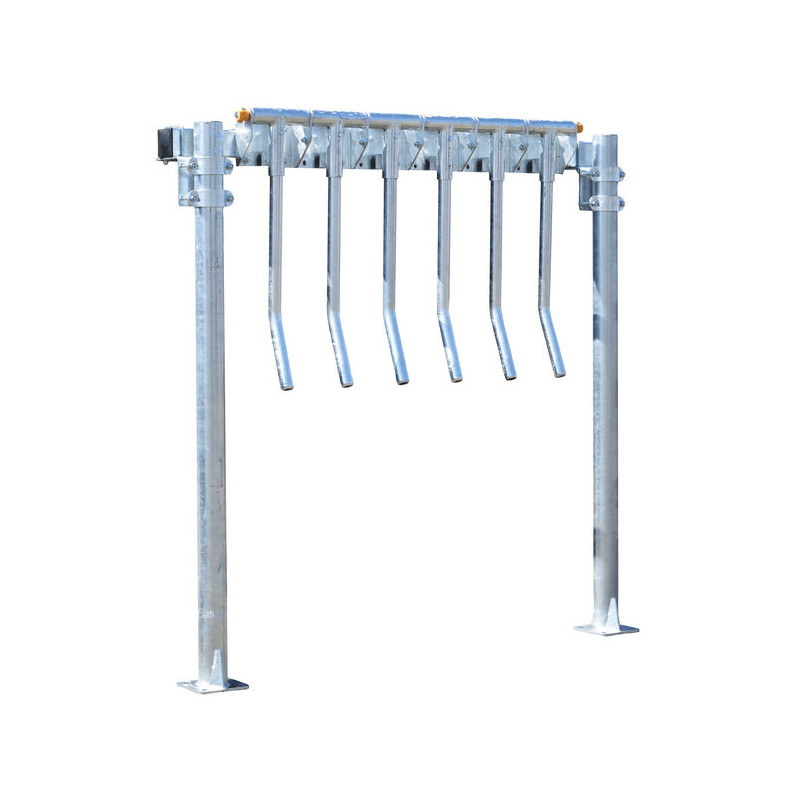

The finger gate unit offers a width of 1.70 m and allows two dairy cows to simultaneously enter.


Finger gates were designed to organise the movement of dairy cows without them being to turn back. They are commonly used at the entrance and exit of milking parlours or milking machines.

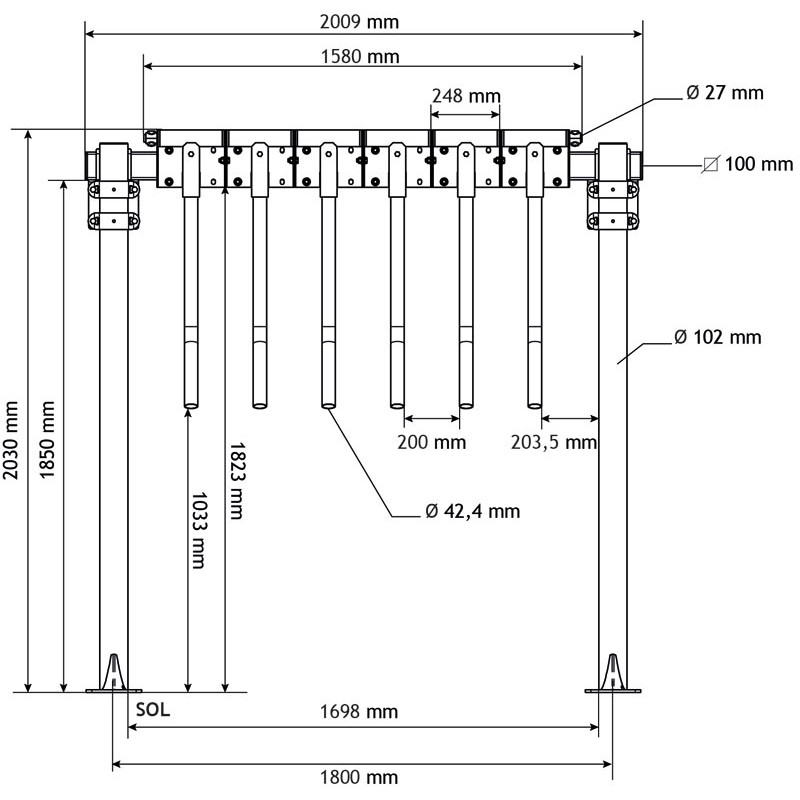

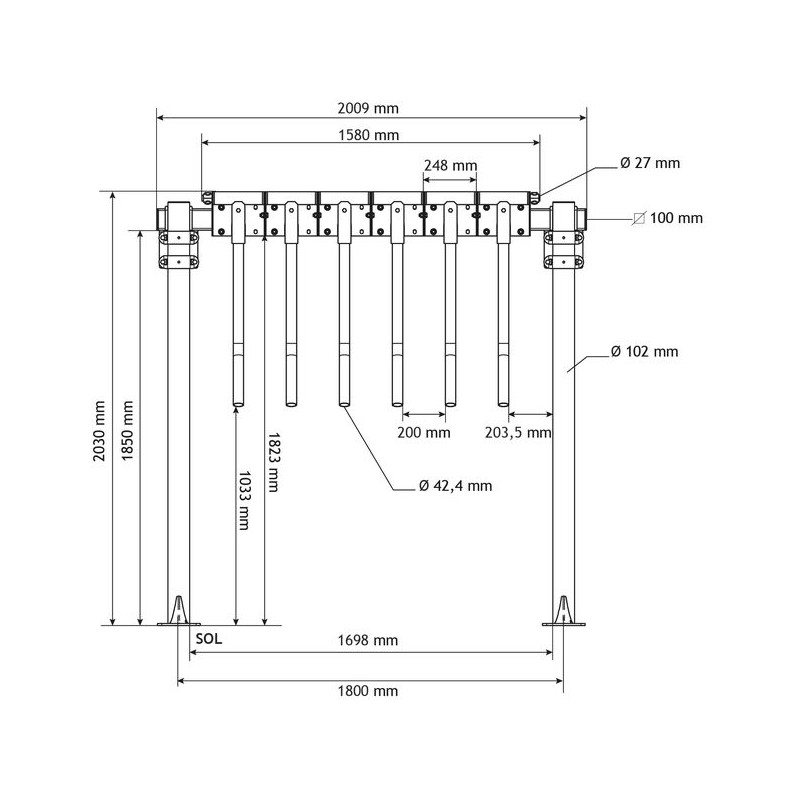

For custom structures:
- allow 248 mm of space per finger gate,
- allow a maximum of 205 mm between the finger gate and the end of the structure,
- ideally, mount the structure at a height allowing a maximum clearance of 1,033 mm under the gate for dairy cows, high mounting can optimise anti-backing according to the morphology and age of the animals.

Comprises:
- 6 finger gates,
- 1 mounting and finishing kit,
- 1 square 100 x 100 mm beam - length 2 m,
- 1 Ø 27 mm pin - length 2 m,
- 2 Ø 102 mm reinforced bared posts on plate - H. 1.98 m.


Material
Galvanised steel
Height
2.03 m
Net weight
159 kg
Packaging
No packaging
Fastening centre distance
1.80 m
Sales unit
Unit
Overall width
2 m
Height opening
1.83 m
Width opening
1.70 m
